Advantech ACP-4340 User Manual

Advantech ACP-4340 User Manual

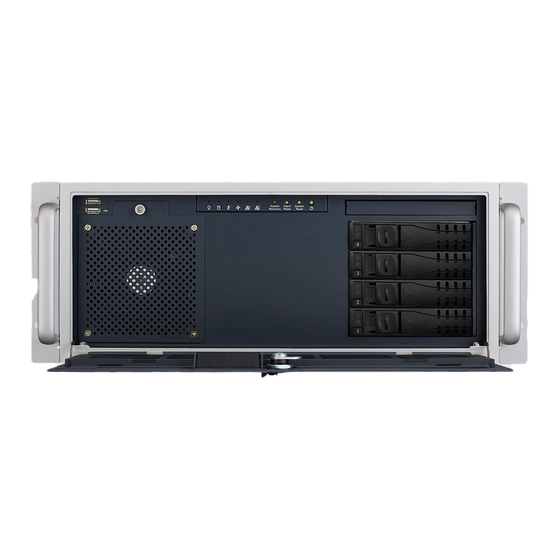

4u rackmount industrial chassis with four mobile sas/ sata hdd trays
Hide thumbs Also See for ACP-4340:
Table of Contents

Advertisement

Quick Links

User Manual
ACP-4340
4U Rackmount Industrial
Chassis with Four Mobile SAS/
SATA HDD Trays
支持 4 个 SAS/SATA 前置硬盘盒的
4U 上架式工业机箱
支援 4 個 SAS/SATA 硬碟抽取盒的
4U 上架式工業機箱

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACP-4340 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Advantech ACP-4340

  • Page 1 User Manual ACP-4340 4U Rackmount Industrial Chassis with Four Mobile SAS/ SATA HDD Trays 支持 4 个 SAS/SATA 前置硬盘盒的 4U 上架式工业机箱 支援 4 個 SAS/SATA 硬碟抽取盒的 4U 上架式工業機箱...
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
  • Page 3 The equipment has been exposed to moisture. The equipment does not work well, or you cannot get it to work according to the user's manual. The equipment has been dropped and damaged. The equipment has obvious signs of breakage. ACP-4340 User Manual/ 用户手册...
  • Page 4 (e.g., screws) provided with the accessory box. 请仔细阅读此安全操作说明。 请妥善保存此用户手册供日后参考。 用湿抹布清洗设备前,请从插座拔下电源线。请不要使用液体或去污喷雾剂清洗 设备。 对于使用电源线的设备,设备周围必须有容易接触到的电源插座。 请不要在潮湿环境中使用设备。 请在安装前确保设备放置在可靠的平面上,意外跌落可能会导致设备损坏。 若该设备是上架式机箱 , 请务必使用机柜里的层板或滑轨 , 确实将设备安稳的安 装固定在机柜内。 请不要把设备放置在超出我们建议的温度范围的环境,即不要低于 0°C (32°F)或高于 40°C (104°F) ,否则可能会损坏设备。 设备外壳的开口是用于空气对流,从而防止设备过热。请不要覆盖这些开口。 当您连接设备到电源插座上前,请确认电源插座的电压是否符合要求。 请将电源线布置在人们不易绊到的位置,并不要在电源上覆盖任何杂物。 请注意设备上的所有警告和注意标语。 如果长时间不使用设备,请将其同电源插座断开,避免设备被超标的电压波动损 坏。 请不要让任何液体流入通风口,以免引起火灾或者短路。 请不要自行打开设备。为了确保您的安全,请由经过认证的工程师来打开设备。 如遇下列情况,请由专业人员来维修: 电源线或者插头损坏; ACP-4340 User Manual/ 用户手册...
  • Page 5 以确保正确的安装。 本产品不带电源线销售,用户需购买符合 CCC 要求的电源线。 請仔細閱讀此安全操作說明。 請妥善保存此用戶手冊供日後參考。 用濕抹布清洗設備前,請從插座拔下電源線。請不要使用液體或去汙噴霧劑清洗 設備。 對於使用電源線的設備,設備周圍必須有容易接觸到的電源插座。 請不要在潮濕環境中使用設備。 請在安裝前確保設備放置在可靠的平面上,意外跌落可能會導致設備損壞。 若該設備是上架式機箱 , 請務必使用機櫃裡的層板或滑軌 , 確實將設備安穩的安 裝固定在機櫃內。 請不要把設備放置在超出我們建議的溫度範圍的環境,即不要低於 0°C (32° F)或高於 40°C (104°F) ,否則可能會損壞設備。 設備外殼的開口是用於空氣對流,從而防止設備過熱。請不要覆蓋這些開口。 當您連接設備到電源插座之前,請確認電源插座的電壓是否符合要求。 請將電源線配置在其它人不易絆到的位置,並不要在電源線上覆蓋任何雜物。 請注意設備上的所有警告和注意標語。 如果長時間不使用設備,請將電源插线拔除,避免設備被超標的電壓波動損 壞。 請不要讓任何液體流入通風口,以免引起火災或者短路。 請不要自行打開設備。為了確保您的安全,請由經過認證的工程師來打開設備。 如遇下列情況,請由專業人員來維修: 電源線或者插頭損壞; 設備內部有液體流入; 設備曾暴露在過於潮濕的環境中使用; ACP-4340 User Manual/ 用户手册...
  • Page 6 Advantech has come to be known. Your satisfaction is our primary concern. Here is a guide to Advantech’s cus- tomer services.
  • Page 7 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
  • Page 8 Collect all the information about the problem encountered. (For example, CPU speed, Advantech products used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages you get when the problem occurs. Call your dealer and describe the problem. Please have your manual, product, and any helpful information readily available.
  • Page 9 料以备搬运人员检查。检查之后,我们会给您提供维修或更换服务。 打開包裝時,用戶需確認包裝中含有下所列各項:  機箱  用戶手冊  品質保證卡  附件盒,包括一袋螺絲 (用於固定母板、背板、薄型光碟機、其它磁碟機、耳 翼及把手等) 、1 對鑰匙、1 對耳翼把手和 1 個 EMI 彈簧遮罩 (背板版本) ,15 個 (背板版本)或 7 個 (主機板版本)橡膠墊。 若任何不符,請立即與經銷商聯繫。裝貨前,我們已全面仔細檢查過產品。因此您購 買的產品應當是完好無 損且運轉正常的。在您打開產品的包裝時,請檢查是否有破損 痕跡 (例如,包裝箱損壞,刮痕,凹痕等) 。如果產品有破損或者不符合規格,請立 即聯繫我們 的服務部門或您的銷售商。同時也要通知搬運人員。請保留包裝箱及包裝 材料以備搬 運人員檢查。檢查之後,我們會給您提供維修或更換服務。 ACP-4340 User Manual/ 用户手册...
  • Page 10 ACP-4340 User Manual/ 用户手册...
  • Page 11: Table Of Contents

    SATA HDD........16 Slide Rail or Pallet/ 滑轨或层板 / 滑軌或層板 .......16 Figure 2.12Install the chassis in the cabinet with the slide rail or pallet supplied / 请务必使用机柜里的层板或滑轨 , 确实 将设备稳妥的安装固定在机柜内 / 請務必使用機櫃裡 的層板或滑軌 , 確實將設備穩妥的安裝固定在機櫃內 . Chapter Operation ACP-4340 User Manual/ 用户手册...
  • Page 12 統狀態監控 & 管理 ........32 5.1.5 Management Functions/ 管理功能 ......33 5.1.6 Alarm Notification/ 报警通知 / 報警通知 ....33 Table 5.1: LED & Beep/LED& 报警音 /LED& 報警音 ..33 5.1.7 Power Consumption/ 电源功耗 / 電源功耗....34 ACP-4340 User Manual/ 用户手册...
  • Page 13 Exploded Diagram& Parts List/ 分解图 & 部件列表 / 分解圖 & 零件表 ..38 Figure A.1 Exploded Diagrams& Parts List/ 分解图 & 部件列表 / 分 解圖 & 零件表........38 Table A.1: Parts list/ 部件列表 / 零件表 ....39 xiii ACP-4340 User Manual/ 用户手册...
  • Page 14 ACP-4340 User Manual/ 用户手册...
  • Page 15: Chapter 1 General Information

    Chapter General Information 概述 產品資訊...
  • Page 16: Introduction/ 产品简介 / 產品簡介

    The ACP-4340 series is a 4U rackmount chassis designed for digital surveillance, SCADA (Supervisory Control And Data Acquisition) server, or general applications which have high storage demand. With the latest in industrial design, the ACP-4340 represents a breakthrough from the traditional, rigid concept of industrial PCs, and provides users with both a high-performance and a state-of-the-art operating plat- form.
  • Page 17 SATA 硬碟狀態  前面板上的開關和按鈕:電源開關、系統重啟按鈕、警報重置按鈕和單鍵操作系 統恢復按鈕 (預留)  前部 I/O 接頭:雙 USB 接頭  後部 I/O 接頭 : 預留 1 個 9 針 D-SUB (背板版本) 或 5 個 9 針 D-SUB 和 1 個 68 針 SCSI (主機板版本)開口 ACP-4340 User Manual/ 用户手册...
  • Page 18: Power Supply Options/ 电源选项 / 電源選項

    +12 V1 @ 0.5 A, +12 V2 @ 0.5 A, 最小负载 +12 V @ 2 A +12 V3 @ 0.5 A 最小負載 MTBF 100,000 hours @ 25° C 100,000 hours @ 25° C Safety UL/TUV/CB/CCC UL/TUV/CB/CCC 安规认证 安規認證 ACP-4340 User Manual/ 用户手册...
  • Page 19: Environmental Specifications/环境规格/環境規格

    10 ~ 95% @ 40° C, non-condensing 10 ~ 95% @ 60° C, non-condensing 湿度 濕度 Vibration (5 ~ 500Hz) 1G rms 振动 振動 Shock 10 G with 11 ms duration, half sine 冲击 wave 衝擊 Safety CE compliant 安规认证 安規認證 ACP-4340 User Manual/ 用户手册...
  • Page 20: Dimension Diagram/ 产品尺寸 / 產品尺寸

    Dimension Diagram/ 产品尺寸 / 產品尺寸 unit: mm [inch] Figure 1.1 Dimension diagram/ 产品尺寸 / 產品尺寸 ACP-4340 User Manual/ 用户手册...
  • Page 21: Chapter 2 System Setup

    Chapter System Setup 系统安装 系統安裝...
  • Page 22: Attaching The Ears & Handles/ 安装耳柄和把手 / 安裝耳翼和把手

    机箱打开时,请小心安装或操作机箱内部组件。请务必关闭机箱电源并 断开电源线。接触机箱内部组件之前,请先触摸金属机箱接地。 機箱打開時,請小心安裝或操作機箱內部元件。請務必關閉機箱電源並 拔除電源線。接觸機箱內部元件之前,請先觸摸金屬機箱接地。 Attaching the Ears & Handles/ 安装耳柄和把手 / 安裝耳翼和把手 Figure 2.1 Attaching the ears and handles/ 安装耳柄和把手 / 安裝耳翼和把手 ACP-4340 User Manual/ 用户手册...
  • Page 23: Removing The Top Cover/ 移除顶盖 / 移除上蓋

    Removing the Top Cover/ 移除顶盖 / 移除上蓋 Figure 2.2 Removing the top cover/ 移除顶盖 / 移除上蓋 Installing the Backplane or Motherboard/ 安装底 板或母板 / 安裝背板或主機板 Figure 2.3 Yellow label indicating copper stub locations/ 指示铜柱位置的黄色标签 / 指示銅柱位置的黃色標籤 ACP-4340 User Manual/ 用户手册...
  • Page 24 Figure 2.4 Installing the backplane/ 安装底板 / 安裝背板 ACP-4340 User Manual/ 用户手册...
  • Page 25 Figure 2.5 Installing a Motherboard/ 安装母板 / 安裝主機板 ACP-4340 User Manual/ 用户手册...
  • Page 26: Installing A Cpu Card/ 安装 Cpu 卡 / 安裝 Cpu 卡

    Installing a CPU Card/ 安装 CPU 卡 / 安裝 CPU 卡 Figure 2.6 Installing a CPU Card/ 安装 CPU 卡 / 安裝 CPU 卡 ACP-4340 User Manual/ 用户手册...
  • Page 27: Hold-Down Clamp/ 固定压条 / 壓桿

    Hold-down Clamp/ 固定压条 / 壓桿 Figure 2.7 Installing rubber cushions and hold-down clamp/ 安装橡胶垫和固定压条 / 安裝橡膠墊和壓杆 ACP-4340 User Manual/ 用户手册...
  • Page 28: Installing Disk Drives/ 安装磁盘驱动器 / 安裝磁碟機

    Installing Disk Drives/ 安装磁盘驱动器 / 安裝磁碟機 2.6.1 Installing HDD or Slim-type Optical Disk Drive/ 安装硬盘或薄型 光驱 / 安裝硬碟或薄型光碟機 Figure 2.8 Installing internal HDD/ 安装内置硬盘 / 安裝內裝硬碟 ACP-4340 User Manual/ 用户手册...
  • Page 29: Installing Sas/Sata Hdd/安装Sas/Sata硬盘/安裝Sas/Sata硬碟

    Figure 2.9 Installing the slim-type optical disk drive/ 安装薄型光驱 / 安装薄型光碟 机 2.6.2 Installing SAS/SATA HDD/安装SAS/SATA硬盘/安裝SAS/SATA硬碟 Figure 2.10 Pushing up the latch & removing the mobile tray/ 拉开锁闩取出可移 动硬盘盒 / 開鎖閂取出硬碟抽取盒 ACP-4340 User Manual/ 用户手册...
  • Page 30: Sas 或 Sata Hdd/ 安裝 2.5" 或 3.5" Sas 或 Sata Hdd

    HDD/ 安裝 2.5” 或 3.5” SAS 或 SATA HDD Slide Rail or Pallet / 滑轨或层板 / 滑軌或層板 Figure 2.12 Install the chassis in the cabinet with the slide rail or pallet supplied / 请务必使用机柜里的层板或滑轨 , 确实将设备稳妥的安装固定在机柜内 / 請務必使 用機櫃裡的層板或滑軌 , 確實將設備穩妥的安裝固定在機櫃內 ACP-4340 User Manual/ 用户手册...
  • Page 31 Chapter Operation 操作...
  • Page 32: The Front Panel/ 前面板

    Dual USB ports: For connecting a wide range of USB devices for data transfer, backup or input. 电源开关:按下此按钮可开启或关闭系统电源。请使用系统关机或持续按下此按钮数 秒钟以关闭系统 ATX 电源。 系统重启按钮:按下此按钮可重启系统。 警报复位按钮:当系统发生故障时 (比如:风扇故障或者机箱过热) ,会响起警报声。 按下此按钮可停止警报声,并请检视整体系统有何异常状况。 单键操作系统回复按钮 : 当按下系统重启按钮仍无法有效将系统重启,此操作系统回 复按钮将能快速回复原出厂默认值 ( 必须配合母板内建此功能 )。 双 USB 接口:此接口可连接各种 USB 设备用于数据传输、备份或输入。 ACP-4340 User Manual/ 用户手册...
  • Page 33: Led Indicators For System Status/ 系统指示灯 / 系統指示燈

    Table 3.2: SAS/SATA HDD LED indicator functions/SAS 或 SATA 硬盘 LED 指 示灯功能 /SAS 或 SATA 硬碟 LED 指示燈功能 Description Green Blue 说明 绿色 蓝色 說明 綠色 藍色 power of HDD HDD power on 硬盘电源 硬盘电源开启 硬碟電源 硬碟電源開啟 ACP-4340 User Manual/ 用户手册...
  • Page 34: The Rear Panel/ 后面板 / 後面板

    The Rear Panel/ 后面板 / 後面板 Figure 3.3 Rear panel / 后面板 / 後面板 Replacing the Cooling Fan/ 更换风扇 / 更換風扇 Figure 3.4: Replacing the system cooling fan(without removing the top cover)/ 更换系统风扇 (无需打开上盖)/ 更換系統風扇 (無需打開上蓋) ACP-4340 User Manual/ 用户手册...
  • Page 35 Figure 3.5: Replacing HDD fan/ 更换硬盘风扇 / 更换硬碟風扇 ACP-4340 User Manual/ 用户手册...
  • Page 36: Cleaning The Filters/ 清洗过滤器 / 清洗濾網

    Cleaning the Filters/ 清洗过滤器 / 清洗濾網 Figure 3.6: Removing the Filters/ 取出过滤器 / 取出濾網 ACP-4340 User Manual/ 用户手册...
  • Page 37: Replacing The Power Supply/ 更换电源 / 更換電源

    Replacing the Power Supply/ 更换电源 / 更換電源 Figure 3.7: Replacing the single power supply/ 更换單电源 / 更換單電源 Figure 3.8: Replacing the power supply module/更换冗余电源/更換冗餘電源模組 ACP-4340 User Manual/ 用户手册...
  • Page 38 Figure 3.9: Power cord plugs should have same orientation in the socket/ 插座上电源线方向相同 / 插座上的電源線方向應相同 ACP-4340 User Manual/ 用户手册...
  • Page 39: Dual-Slot Sas/Sata Backplane 双槽 Sas/Sata 底板 雙槽 Sas/Sata 背板25

    Chapter Dual-Slot SAS/SATA Backplane 双槽 SAS/SATA 底板 雙槽 SAS/SATA 背板...
  • Page 40: Backplane Layout/ 底板布局 / 背板佈局

    Backplane Layout/ 底板布局 / 背板佈局 Figure 4.1 Front side layout (connect to the HDD)/ 前侧布局 (连接至 HDD)/ 前方配置 (連接至 HDD) Figure 4.2 Rear side layout (connect to the RAID card or motherboard)/ 后侧布局 (连接至 RAID 卡或母板)/ 後方配置 (連接至 RAID 卡或主機板) ACP-4340 User Manual/ 用户手册...
  • Page 41: Connectors & Pin Definition/接口&针脚定义/接頭 & 針腳定義

    Cable connectors for connecting to SAS / SATA RAID card or moth- SATA1 ~ SATA2 erboard Table 4.3: CN46, Power connector/ 电源接口 / 電源介面 Pin1 +12 V Pin3 Pin2 Pin4 Table 4.4: CN14, Fan connector/ 风扇接口 / 風扇介面 Pin1 Pin3 +5 V Pin2 +12 V ACP-4340 User Manual/ 用户手册...
  • Page 42 ACP-4340 User Manual/ 用户手册...
  • Page 43: Alarm Board

    Chapter Alarm Board 报警板 報警板...
  • Page 44 3. 机箱内部温度过高。 发出声音警报时,按下前面板上的报警复位按钮即可将其停止,然后需采取措施进行 修复。 该款产品的系统布局不同于其他产品。您可以通过硬件拨码开关来设置报警板。详细 信息请参考 “ 开关设置 ”。 注: 根据不同的系统布局,您可以通过硬件拨码开关来设置报警板,以免误 发出声音警报。详细信息请参考 “ 开关设置 ”。 若要使用远程管理功能,您需要安装 SUSIAccess。您将能够监控系统风扇速度、系统 温度、CPU 温度以及电压。您也可以根据需要在 SUSIAccess 下定制报警标准。更多详 细信息,请参考 SUSIAccess 用户指导。 報警板位於前方系統風扇的後方。報警板具有系統檢測功能,可以監視整個電腦系統 的狀態,包括:溫度狀態、風扇、電源和 HDD 運行。一旦系統發生任何問題,報警板 將通過聲音警報和 LED 指示燈進行報告。 報警板將在下列幾種情況下發出聲音警報: 1. 冗余電源的任一電源模組發生故障; 2. 任一冷卻風扇發生故障; ACP-4340 User Manual/ 用户手册...
  • Page 45: Specification/ 规格 / 規格

    自动智能风扇控制  预留 PCB 结构,用于重力与湿度传感器  1 個 10-pin 硬體跳線開關,用於報警設置  1 個 SM 匯流排界面系統以及主機板運行狀態監測  多達 4 個外部溫度感測器  7 個風扇轉速計輸入  1 個外部 IPMI 模組介面  1 個內置蜂鳴器,用於提示系統運行狀態  自動智慧風扇控制  預留 PCB 結構,用於重力與濕度感測器 ACP-4340 User Manual/ 用户手册...
  • Page 46: Dimensions/ 尺寸

    Remote system monitor through SUSIAccess   Alarm through on-board buzzer and LED signal  实时运行状态监控:实时系统 / 主板风扇速度、温度监控  通过 SUSIAccess 进行远程系统监控  使用板载蜂鸣器和 LED 信号灯进行报警  即時運行狀態監控:即時系統 / 主機板風扇速度、溫度監控  通過 SUSIAccess 進行遠端系統監控  使用板載蜂鳴器和 LED 信號燈進行報警 ACP-4340 User Manual/ 用户手册...
  • Page 47: Management Functions/ 管理功能

    正常 正常 CPU FAN fail < 500 rpm Warn Keep beep CPU 风扇故障 警示 报警声持续 CPU 風扇故障 報警聲持續 风扇 風扇 System fan fail < 500 rpm Blinking Keep beep Warn 系统风扇故障 报警声持续 系統風扇故障 闪烁警示 報警聲持續 閃爍警示 ACP-4340 User Manual/ 用户手册...
  • Page 48: Power Consumption/ 电源功耗 / 電源功耗

    External Buzzer Connector/ 外部蜂鸣器接口 / 外部蜂鳴器接頭 HDD1 HDD LED connector/ 影碟 LED 接口 / 影碟 LED 接頭 PWR1 PSU Power Connector/PSU 电源接口 /PSU 電源接頭 SMB_MB1 Main Board SMBus Connector/ 主板 SMBus 接口 / 主板 SMBus 接頭 ACP-4340 User Manual/ 用户手册...
  • Page 49 Table 5.5: SW4 ~ 6 SW1.Pin4 SW1.Pin5 SW1.Pin6 SYS FAN Qty 系统风扇数量 系統風扇數量 Disable/ 禁用 1 (FAN1) 2 (FAN1~2) (Default) 2 (FAN1~2) (默认值) 2 (FAN1~2) (預設值) 3 (FAN1~3) 4 (FAN1~4) 5 (FAN1~5) 6 (FAN1~6) 7 (FAN1~7) ACP-4340 User Manual/ 用户手册...
  • Page 50 3 (TR1~3) 4 (TR1~4) Table 5.7: SW10 SW1.Pin10 Smart FAN/ 智能风扇 / 智慧風扇 Enable (Default)/ 启用 (默认值)/ 啟用 (預設值) Disable/ 禁用 Board Layout/ 板布局 / 板佈局 Figure 5.1 Connector locations of alarm board/ 报警板接口分布 / 報警板接口分佈 ACP-4340 User Manual/ 用户手册...
  • Page 51 Appendix Exploded Diagram& Parts List 分解图 & 部件列表 分解圖 & 零件表...
  • Page 52 Exploded Diagram& Parts List/分解图&部件列表/ 分解圖 & 零件表 Figure A.1 Exploded Diagrams& Parts List/ 分解图 & 部件列表 / 分解圖 & 零件表 ACP-4340 User Manual/ 用户手册...
  • Page 53 Outer door frame HDD fan guard Power supply bracket 外门框 硬盘风扇保护罩 电源支架 外門框 硬碟風扇保護罩 電源支架 Inner door frame Alarm board Rear plate 内门框 报警板 后板 內門框 報警板 後板 USB cable Under plate USB 线 底板 USB 線 底板 ACP-4340 User Manual/ 用户手册...
  • Page 54 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2013 www.advantech.com.cn 使用前请检查核实产品的规格。本手册仅作为参考。 产品规格如有变更,恕不另行通知。 未经研华公司书面许可,本手册中的所有内容不得通过任何途径以任何形式复制、翻...
