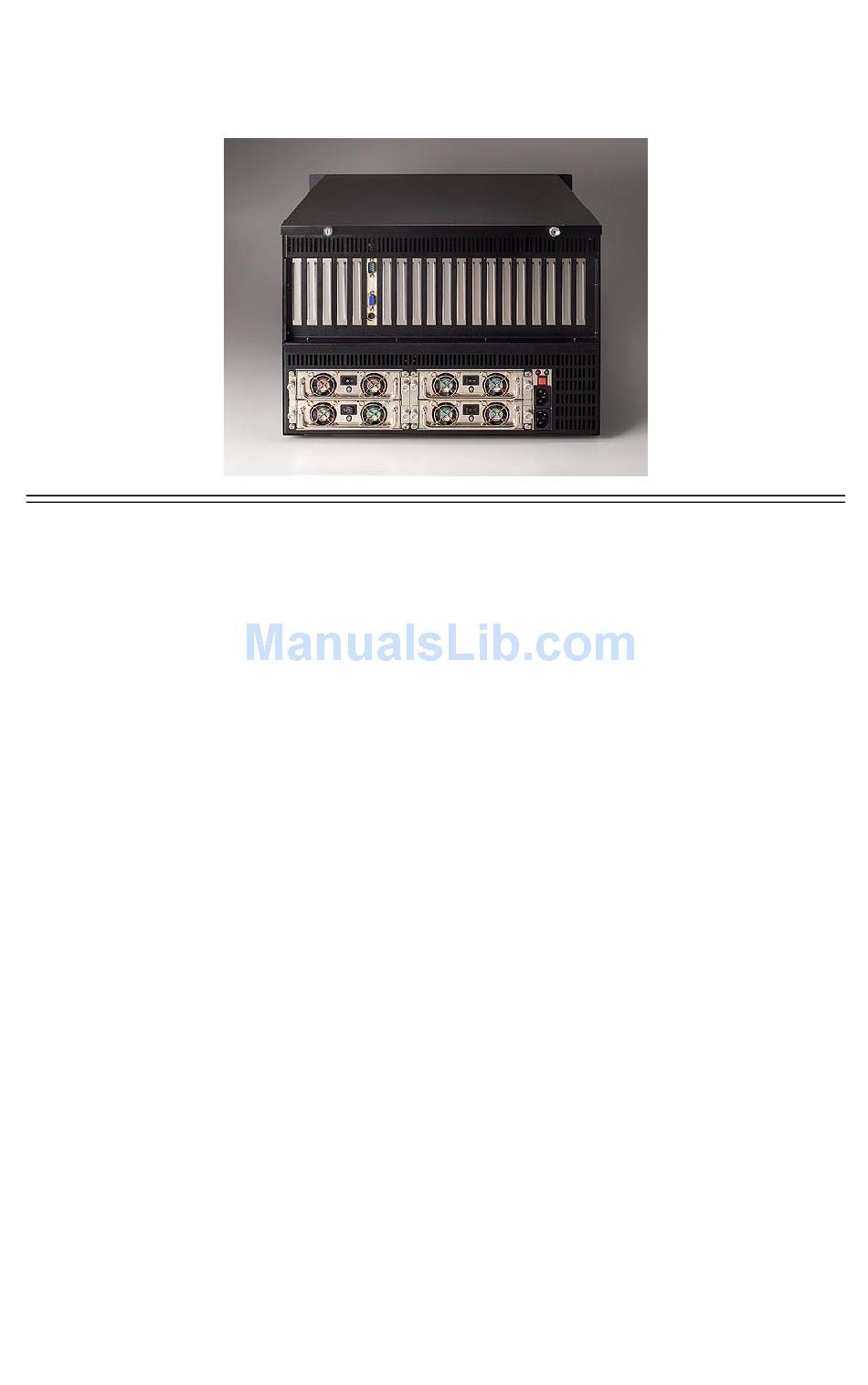

Figure 2.4: Rear View

System Reset 1: Press this switch to reinitialize the system. This is the
same as the hardware reset button. (Default setting)
System Reset 2: Press this switch to reinitialize the second system.
(Optional for dual system)
Alarm Reset Switch: Press this switch to suppress or stop an audible
alarm. Whenever a fault in the system occurs (e.g. fan failure, rising chas-
sis temperature, backplane voltage problem), an audible alarm is acti-
vated. Pressing this switch will cause the alarm to stop.
Power On/Off Switch: Use this switch to turn on/off the system AT
power.
Momentary Switch: Use this switch and by way of ATX (PS_ON) func-
tion to turn on system ATX power. Please use system shutdown to turn off
system power automatic or press momentary switch for a while to turn off
system power
USB connector: If you want to connect any USB interface device to the
system, you could use this connector.
PS/2 connector: If you want to connect the PS/2 keyboard, you could use
this connector.
