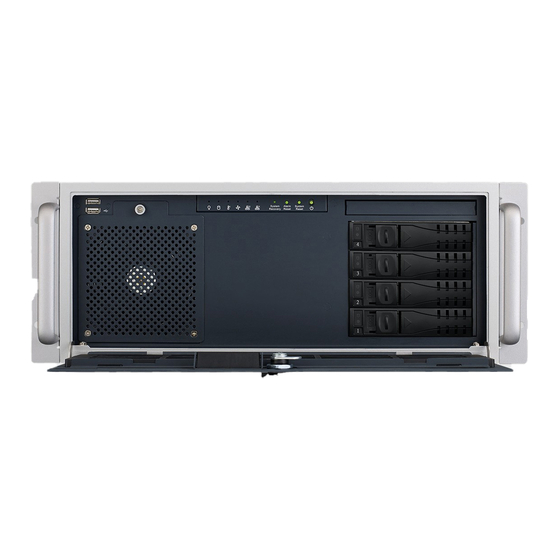

4u rackmount industrial chassis with four mobile sata hdd trays
Hide thumbs Also See for ACP-4340:
Table of Contents

Advertisement

Quick Links

User Manual
ACP-4340
4U Rackmount Industrial
Chassis with Four Mobile SATA
HDD Trays
支持 4 个 SATA 前置硬盘盒的 4U 上
架式工业机箱
支援 4 個 SATA 硬碟抽取盒的 4U 上
架式工業機箱

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACP-4340 and is the answer not in the manual?

Questions and answers

Summary of Contents for Advantech ACP-4340

  • Page 1 User Manual ACP-4340 4U Rackmount Industrial Chassis with Four Mobile SATA HDD Trays 支持 4 个 SATA 前置硬盘盒的 4U 上 架式工业机箱 支援 4 個 SATA 硬碟抽取盒的 4U 上 架式工業機箱...
  • Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
  • Page 3 The equipment has been exposed to moisture. The equipment does not work well, or you cannot get it to work according to the user manual. The equipment has been dropped and damaged. The equipment has obvious signs of breakage. ACP-4340 User Manual/ 用户手册...
  • Page 4 Repair of the device may only be carried out by trained service personnel. Advantech recommends that a service contract be obtained with Advantech Service and that all repairs also be carried out by them. Otherwise the correct functioning of the device may be compromised.
  • Page 5 Contact information: Advantech Co., Ltd. Website: www.advantech.com.tw Address: No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei, Tai- wan, 114. TEL: +886-2792-7818 ACP-4340 User Manual/ 用户手册...
  • Page 6 CLASS I LASER PRODUCT KLASS I LASER PRODUKT (1) 避免直接暴露於雷射光中。切勿打開雷射裝置外殼,內部沒有使用者可維 的元件。 (2) 切勿超出本文件規定,對本雷射裝置進行控制操作、調整或執行程序。 (3) 只讓授權服務技術人員對雷射裝置進行維修。 設備符合 FCC 規則第 15 款的規定。操作受如下兩個條件限制: (1) 本設備不得產生有害的干擾,而且 (2) 本設備必須能經受干擾,包括可能引起意外操作的干擾。 注意:無論何時進行操作,請務必完全關閉機箱電源。不可在電源接通時進行設 備連接,以避免瞬間電流損壞敏感電子元件。只有專業技術人員才可以打開機 箱。 注意:接觸產品的主板、背板或擴充卡前,請先確保您接地來移除身上附帶的靜 電。由於現在的電子設備對靜電十分敏感,為了安全起見,請使用接地腕環。請 將所有電子元件放在無靜電的表面或靜電屏蔽袋中。 注意:未經專業認可的元件會損壞設備。請使用附件盒中提供的元件 (如螺絲) 以確保正確的安裝。 注意:本產品不適合兒童使用 (本產品不是玩具) 。 (1) 本設備不適合有兒童在場的環境使用。 ACP-4340 User Manual/ 用户手册...
  • Page 7 注意:若要切斷電源 , 請將所有電源線都從機器上拔除。 注意:螢幕型設備 ( 或顯示器 ):使用過度恐傷害視力。 (1) 使用 30 分鐘請休息十分鐘。 (2) 未滿 2 歲孩童不看螢幕 ( 或顯示器 ),2 歲以上每天看螢幕不要超過 1 小 時。 注意:如果使用者沒有依照使用手冊使用設備,則設備反置可能會導致開孔在系 統底部的危險產生。 注意:未經合乎規定與明確許可的任何變更或修改都可能導致用戶喪失操作本設 備的權利。 聯絡資訊: 研華股份有限公司 網站:www.advantech.com.tw 地址:台灣台北市內湖區瑞光路 26 巷 20 弄 1 號 電話:+886-2-27927818 ACP-4340 User Manual/ 用户手册...
  • Page 8 KLASS I LASER PRODUKT (1) 避免直接暴露于雷射光中。切勿打开雷射装置外壳,内部没有用户可维修 组件。 (2) 切勿超出本文件规定,对本雷射装置进行控制操作、调整或执行程序。 (3) 只让授权服务技术人员对雷射装置进行维修。 设备符合 FCC 规则第 15 款的规定。操作受如下两个条件限制: (1) 本设备不得产生有和的干扰,而且 (2) 本设备必须能经受干扰,包括可能引起意外操作的干扰。 注意:无论何时进行操作,请务必完全关闭电源,不可在电源接通时进行设备连 接,以避免顺电流损坏敏感电子组件。只有专业的技术人员才可以打开机箱。 注意:接触产品的主板、背板、或是扩充卡前,请先确保您接地来移除身上附带 的静电。由于现在的电子设备对静电十分敏感,为了安全起见,请使用接地手腕 环。请将所有电子组件放在无静电的表面或是静电防护袋中。 注意:未经专业认可的组件会损坏设备。请使用附件盒中提供的组件 ( 如螺丝 ) 以确保正确的安装。 注意:本产品不适合儿童使用 (本产品不是玩具) 。 (1) 本设备不适合有儿童在场的环境使用。 ACP-4340 User Manual/ 用户手册 viii...
  • Page 9 解电池 ( 或电池组 ),可能导致爆炸 ; 将电池置于极端高温环境、有易燃液体或 气体泄漏中的环境中会导致爆炸 ; 电池 ( 或电池组 ) 若受到极低的空气压力, 可能导致爆炸。请按照制造商的指示处理旧电池。 注意:若要切断电源 , 请将所有电源线都从机器上拔除。 注意:屏幕型设备 ( 或显示器 ):使用过度恐伤害视力。 (1) 使用 30 分钟请休息十分钟。 (2) 未满 2 岁孩童不看屏幕 ( 或显示器 ),2 岁以上每天看屏幕不要超过 1 时。 注意:如果使用者没有依照使用手册使用设备,设备反置则可能会导致开孔置于 底部的危险产生。 注意:未经合乎规定与明确许可的任何变更或修改都可能导致用户丧失操作本设 备的权利。 ACP-4340 User Manual/ 用户手册...
  • Page 10 Advantech has come to be known. Your satisfaction is our primary concern. Here is a guide to Advantech’s cus- tomer services.
  • Page 11 Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
  • Page 12 Material Authorization) 序列号。这可以让我们尽快地进行故障产品的回收。 请仔细地包装故障产品,并在包装中附上完整的售后服务卡片和购买日期证明 (如销售发票) 。我们对无法提供购买日期证明的产品不提供质量保证服务。 把相关的 RMA 序列号写在外包装上,并将其运送给销售人员。 從購買之日起,研華為原購買商提供兩年的產品品質保證。但對那些未經授權的維修 人員維修過的產品,並不進行品質保證。研華對於不正確的使用、天災、錯誤安裝產 生 的問題有免責權利。 如果研華產品出現故障,在保固期內我們提供免費維修或更換服務。對於超過保固期 之產品, 我們將會酌收材料費、人工服務費用。請聯繫您的銷售人員瞭解詳細情況。 如果您認為您購買的產品出現了故障,請遵循以下步驟: 收集您所遇到的問題資訊 (例如,CPU 頻率、使用的研華產品及其它軟體、硬 體等) 。請注意螢幕上出現的任何不正常資訊顯示。 打電話給您的供應商,描述故障問題。請參考手冊,產品和任何有幫助的資訊。 如果您的產品被診斷發生故障,請從您的供應商那裏獲得 RMA (Return Mate - rial Authorization) 序號。這可以讓我們儘快地進行故障產品的回收。 請細心包裝故障產品,並在包裝中附上完整的售後服務卡片和購買日期證明 (如銷售發票) 。我們對無法提供購買日期證明的產品不提供保固服務。 把相關的 RMA 序號寫在外包裝上,並將其運送給銷售人員。 ACP-4340 User Manual/ 用户手册...
  • Page 13 迹 (例如,包装箱损坏,划痕,凹痕等) 。如果产品有破损或者不符合规格,请立即 联系我们的服务部门或您的销售商。同时也要通知搬运人员。请保留包装箱及包装材 料以备搬运人员检查。检查之后,我们会给您提供维修或更换服务。 打開包裝時,用戶需確認包裝中含有下所列各項:  機箱  用戶手冊  附件盒,包括一袋螺絲 (用於固定母板、背板、薄型光碟機、其它磁碟機、耳 翼及把手等) 、1 對鑰匙、1 對耳翼把手和 1 個 EMI 彈簧彈片 (背板版本) ,15 個 (背板版本)或 7 個 (主機板版本)橡膠墊。 若任何不符,請立即與經銷商聯繫。裝貨前,我們已全面仔細檢查過產品。因此您購 買的產品應當是完好無 損且運轉正常的。在您打開產品的包裝時,請檢查是否有破損 痕跡 (例如,包裝箱損壞,刮痕,凹痕等) 。如果產品有破損或者不符合規格,請立 即聯繫我們的服務部門或您的銷售商。同時也要通知搬運人員。請保留包裝箱及包裝 材料以備搬運人員檢查。檢查之後,我們會提供維修或更換服務。 xiii ACP-4340 User Manual/ 用户手册...
  • Page 14 ACP-4340 User Manual/ 用户手册...
  • Page 15: Table Of Contents

    锁闩取出可移动硬盘盒 / 開鎖閂取出硬碟抽取盒..15 Figure 2.10Installing a 2.5” or 3.5” SATA HDD/安装2.5”或3.5” SATA HDD/ 安裝 2.5” 或 3.5” SATA HDD..16 Chapter Operation 操作17 The Front Panel/ 前面板 .........18 Figure 3.1 Closed front panel / 关门时的前视图 / 關門時的前視圖 ACP-4340 User Manual/ 用户手册...
  • Page 16 Table 4.15: TR1~4 ..............33 Table 4.16: RDUPG1 ..............33 Table 4.17: BZ1................33 Table 4.18: HDD1................ 33 Table 4.19: ALMRST1..............33 Table 4.20: FAN1~7 ..............33 Table 4.21: DEBUG2..............33 Table 4.22: PWR1 ............... 33 ACP-4340 User Manual/ 用户手册...
  • Page 17 Exploded Diagram& Parts List/ 分解图 & 部件列表 / 分解圖 & 零件表 ..36 Figure A.1 Exploded Diagrams& Parts List/ 分解图 & 部件列表 / 分 解圖 & 零件表........36 Table A.1: Parts list/ 部件列表 / 零件表 ....37 xvii ACP-4340 User Manual/ 用户手册...
  • Page 18 ACP-4340 User Manual/ 用户手册 xviii...
  • Page 19: Chapter 1 General Information

    Chapter General Information 概述 產品資訊...
  • Page 20: Introduction/ 产品简介 / 產品簡介

    The ACP-4340 series is a 4U rackmount chassis designed for digital surveillance, SCADA (Supervisory Control And Data Acquisition) server, or general applications which have high storage demand. With the latest in industrial design, the ACP-4340 represents a breakthrough from the traditional, rigid concept of industrial PCs, and provides users with both a high-performance and a state-of-the-art operating plat- form.
  • Page 21 色)能夠顯示 SATA 硬碟電源和一個雙色 LED (藍色 / 紅色)能夠顯示 SATA 硬碟 狀態  前面板上的開關和按鈕:電源開關、系統重啟按鈕、警報重置按鈕和單鍵操作系 統恢復按鈕 (預留)  前部 I/O 接頭:雙 USB 接頭  後部I/O接頭 : 預留1個9 pin D-SUB (背板版本) 或5個9 pin D-SUB和1個25-pin D-sub (主機板版本)開口  安全保護:抽取式 SATA 儲存系統、電源開關、系統重啟按鈕、警報重置按鈕、單 鍵操作系統回復按鈕和 USB 接頭全部由帶鎖門保護 ACP-4340 User Manual/ 用户手册...
  • Page 22: Power Supply Options/ 电源选项 / 電源選項

    +12V3@16A -12V@0.3A +5Vsb@2.5A +12V4@16A -5A@0.3A -12V@0.3A +5Vsb@4A +5Vsb@2.5A -5V@0.3A -12V@0.5A -5V@0.5A MTBF 100,000 @ 25° C Safety CE/FCC/UL/CB/TUV/KC 安规认证 安規認證 Caution! Power supply options are subject to the product datasheet on the Advantech website. 请以研华公司官方网站公告的该机箱产品型录上的电源选项料号为准。 請以研華公司官方網站公告的該機箱產品型錄上的電源選項料號為準。 ACP-4340 User Manual/ 用户手册...
  • Page 23: Environmental Specifications/环境规格/環境規格

    10 ~ 85% @ 40° C, non-condensing 10 ~ 95% @ 40° C, non-condensing 湿度 濕度 Vibration (5 ~ 500Hz) 1 Grms 振动 振動 Shock 10 G with 11 ms duration, half sine wave 冲击 衝擊 Dimension Diagram/ 产品尺寸 / 產品尺寸 Figure 1.1 Dimension diagram/ 产品尺寸 / 產品尺寸 ACP-4340 User Manual/ 用户手册...
  • Page 24 ACP-4340 User Manual/ 用户手册...
  • Page 25: Chapter 2 System Setup

    Chapter System Setup 系统安装 系統安裝...
  • Page 26: Attaching The Ears & Handles/ 安装耳柄和把手 / 安裝耳翼和把手

    机箱打开时,请小心安装或操作机箱内部组件。请务必关闭机箱电源并 断开电源线。接触机箱内部组件之前,请先触摸金属机箱接地。 機箱打開時,請小心安裝或操作機箱內部元件。請務必關閉機箱電源並 拔除電源線。接觸機箱內部元件之前,請先觸摸金屬機箱接地。 Attaching the Ears & Handles/ 安装耳柄和把手 / 安裝耳翼和把手 Figure 2.1 Attaching the ears and handles/ 安装耳柄和把手 / 安裝耳翼和把手 ACP-4340 User Manual/ 用户手册...
  • Page 27: Removing The Top Cover/ 移除顶盖 / 移除上蓋

    Removing the Top Cover/ 移除顶盖 / 移除上蓋 Figure 2.2 Removing the top cover/ 移除顶盖 / 移除上蓋 Installing the Backplane or Motherboard/ 安装底 板或母板 / 安裝背板或主機板 134.00 PCA-6113P12 series series series Max. Torque of copper stub 10kgf cm ACP-4340 User Manual/ 用户手册...
  • Page 28 Figure 2.3 Installing the backplane/ 安装底板 / 安裝背板 ACP-4340 User Manual/ 用户手册...
  • Page 29 Figure 2.4 Installing a Motherboard/ 安装母板 / 安裝主機板 ACP-4340 User Manual/ 用户手册...
  • Page 30: Installing A Cpu Card/ 安装 Cpu 卡 / 安裝 Cpu 卡

    Installing a CPU Card/ 安装 CPU 卡 / 安裝 CPU 卡 Figure 2.5 Installing a CPU Card/ 安装 CPU 卡 / 安裝 CPU 卡 ACP-4340 User Manual/ 用户手册...
  • Page 31: Hold-Down Clamp/ 固定压条 / 壓桿

    Hold-down Clamp/ 固定压条 / 壓桿 Figure 2.6 Installing rubber cushions and hold-down clamp/ 安装橡胶垫和固定压条 / 安裝橡膠墊和壓杆 ACP-4340 User Manual/ 用户手册...
  • Page 32: Installing Disk Drives/ 安装磁盘驱动器 / 安裝磁碟機

    Installing Disk Drives/ 安装磁盘驱动器 / 安裝磁碟機 2.6.1 Installing HDD or Slim-type Optical Disk Drive/ 安装硬盘或薄型 光驱 / 安裝硬碟或薄型光碟機 Figure 2.7 Installing an internal HDD/ 安装内置硬盘 / 安裝內裝硬碟 ACP-4340 User Manual/ 用户手册...
  • Page 33: Installing Sata Hdd/ 安装 Sata 硬盘 / 安裝 Sata 硬碟

    Figure 2.8 Installing the slim-type optical disk drive/ 安装薄型光驱 / 安装薄型光碟 机 2.6.2 Installing SATA HDD/ 安装 SATA 硬盘 / 安裝 SATA 硬碟 Figure 2.9 Pushing up the latch & removing the mobile tray/ 拉开锁闩取出可移动 硬盘盒 / 開鎖閂取出硬碟抽取盒 ACP-4340 User Manual/ 用户手册...
  • Page 34: Sata Hdd/ 安裝 2.5" 或 3.5" Sata Hdd

    2.5” HDD 3.5” HDD Figure 2.10 Installing a 2.5” or 3.5” SATA HDD/ 安装 2.5” 或 3.5” SATA HDD/ 安裝 2.5” 或 3.5” SATA HDD ACP-4340 User Manual/ 用户手册...
  • Page 35: Chapter 3 Operation

    Chapter Operation 操作...
  • Page 36: The Front Panel/ 前面板

    Dual USB ports: For connecting a wide range of USB devices for data transfer, backup or input. 电源开关:按下此按钮可开启或关闭系统电源。请使用系统关机或持续按下此按钮数 秒钟以关闭系统 ATX 电源。 系统重启按钮:按下此按钮可重启系统。 警报复位按钮:当系统发生故障时 (比如:风扇故障或者机箱过热) ,会响起警报声。 按下此按钮可停止警报声,并请检视整体系统有何异常状况。 单键操作系统回复按钮 : 当按下系统重启按钮仍无法有效将系统重启,此操作系统回 复按钮将能快速回复原出厂默认值 ( 必须配合母板内建此功能 )。 双 USB 接口:此接口可连接各种 USB 设备用于数据传输、备份或输入。 ACP-4340 User Manual/ 用户手册...
  • Page 37: Led Indicators For System Status/ 系统指示灯 / 系統指示燈

    源和 & 状态的 LED 指示灯 / 顯示 SATA 硬碟電源和 & 狀態的 LED 指 示燈 Table 3.2: SATA HDD LED indicator functions/SATA 硬盘 LED 指示灯功能 / SATA 硬碟 LED 指示燈功能 Description Green Blue 说明 绿色 蓝色 說明 綠色 藍色 power of HDD HDD power on 硬盘电源 硬盘电源开启 硬碟電源 硬碟電源開啟 ACP-4340 User Manual/ 用户手册...
  • Page 38: The Rear Panel/ 后面板 / 後面板

    The Rear Panel/ 后面板 / 後面板 Figure 3.3 Rear panel / 后面板 / 後面板 Replacing the Cooling Fan/ 更换风扇 / 更換風扇 Figure 3.4: Replacing the system cooling fan (without removing the top cover)/ 更换系统风扇 (无需打开上盖)/ 更換系統風扇 (無需打開上蓋) ACP-4340 User Manual/ 用户手册...
  • Page 39 Figure 3.5: Replacing HDD fan/ 更换硬盘风扇 / 更换硬碟風扇 ACP-4340 User Manual/ 用户手册...
  • Page 40: Cleaning The Filters/ 清洗过滤器 / 清洗濾網

    Cleaning the Filters/ 清洗过滤器 / 清洗濾網 Figure 3.6: Removing the Filters/ 取出过滤器 / 取出濾網 ACP-4340 User Manual/ 用户手册...
  • Page 41: Replacing The Power Supply/ 更换电源 / 更換電源

    Replacing the Power Supply/ 更换电源 / 更換電源 Figure 3.7: Replacing the single power supply/ 更换單电源 / 更換單電源 Figure 3.8: Replacing the power supply module/更换冗余电源/更換冗餘電源模組 ACP-4340 User Manual/ 用户手册...
  • Page 42 Figure 3.9: Power cord plugs should have same orientation in the socket/ 插座上电源线方向相同 / 插座上的電源線方向應相同 ACP-4340 User Manual/ 用户手册...
  • Page 43: Intelligent System Module/ 智能系统模

    Chapter Intelligent System Module/ 智能系统模块 / 智能系統模組 Sections include/ 內容包括 :  Getting Started/入门指南/入門指 南  Specifications/ 规格 / 規格  Connectors and Switch Setting/ 接口和开关设置 / 接口與開關設定  Board Layout/ 板卡布局 / 板卡佈 局  Pin Define/ 针脚定义 / 針腳定義...
  • Page 44: Getting Started/ 入门指南 / 入門指南

    Reserved PCB layout for gravity and humidity sensor  1 x 用于配置报警设置的 10 针硬件开关  1 x 用于监控系统和主板健康状态的 SMBus  多达 4 个外置温度传感器  7 x 风扇转速计输入  1 x 外置 IPMI 模块接口  1 x 用于提示系统健康状态的内置蜂鸣器  自动智能风扇控制  PCB 布局上预留重力和湿度传感器 ACP-4340 User Manual/ 用户手册...
  • Page 45: Dimensions/ 尺寸

    经由 PM Bus 接收 IPMI 命令 / 经由 SMBus 接收 SUSI 命令  電壓輸入:+5Vdc、-5Vdc、5VSB、+3.3Vdc、+12Vdc、-12Vdc  溫度感應器:LM75 數位溫度感應器,I2C 接頭,-30C ~ 125° C (-22F ~ 257° F)  風扇轉速控制:至多連接 7 個系統風扇  電源狀態監控: – 冗餘電源狀態偵測 – 經由 PMBus 接收 IPMI 命令 / 經由 SMBus 接收 SUSI 命令 ACP-4340 User Manual/ 用户手册...
  • Page 46: System Status Monitoring & Management/系统状态监控和管理/系 統狀態監控與管理

    SUSIAccess Management Function/SUSIAccess 管理功能 Web-based remote configure, control and monitoring  Remote reset, power down and power up.   Remote digital output signal control  通过网络实现远程配置、控制和监测  远程重启、开关机  远程数字量输出信号控制  透過網路進行遠端監控  遠端控制系統開關機與重啟  遠端數位訊號管理 ACP-4340 User Manual/ 用户手册...
  • Page 47: Alarm Notification/ 报警通知 / 各功能警示狀態

    Close alarm beep for 3 mins Push 报警复位 暂停警示音 3 分钟 暫停示警 暫停示警狀態三分鐘 Note! LED color might be different in each chassis. LED 指示灯颜色可能因机箱不同而有差别。 LED 指示燈顏色可能因機箱不同而有差別。 4.2.7 Power Consumption/ 功耗  12 V @ 5.25 A ACP-4340 User Manual/ 用户手册...
  • Page 48: Connectors And Switch Setting/接口和开关设置/ 接口與開關設定

    Please connect the fan connectors in the correct sequence: If two fans are being connected. The correct method is to connect them into FAN1 and FAN2. If fans are connected out of sequence the alarm will not func- tion correctly. 请按照顺序连接风扇接口。如果有一个以上风扇,请从 FAN1、FAN2... 等顺序连接。如果顺序错误,报警功能可能会出现异常。 請依照順序連接風扇接頭。如果有一個以上風扇,請從 FAN1、FAN2 ... 等順序連接。如果順序錯誤,示警功能可能會發生異常。 ACP-4340 User Manual/ 用户手册...
  • Page 49 Table 4.6: SW7 ~ 9 SW1.Pin7 SW1.Pin8 SW1.Pin9 TEMP Qty Disable 1 (TR1) 2 (TR1~2) 3 (TR1~3) 4 (TR1~4) Table 4.7: SW10 SW1.Pin10 Smart FAN / 智能风扇 / 智能風扇 Enable / 启用 / 啟用 Disable / 禁用 / 關閉 ACP-4340 User Manual/ 用户手册...
  • Page 50: Board Layout/ 板卡布局 / 板卡佈局

    Table 4.11: SMB_3V_1 Pin 1 +V_SMB Pin 3 M_SDAT_R Pin 2 M_SCLK_R Pin 4 Table 4.12: SMB_3V_2 Pin 1 +V_SMB Pin 3 M_SDAT_R Pin 2 M_SCLK_R Pin 4 Table 4.13: LEDBOARD1 Pin 1 Pin 9 T-G_LED ACP-4340 User Manual/ 用户手册...
  • Page 51 Pin 1 Pin 2 ALARM_RST_IN# Table 4.20: FAN1~7 Pin 1 Pin 3 FAN_DEC1~7_R Pin 2 +V12_FAN Table 4.21: DEBUG2 Pin 1 EC_SCLK0 Pin 2 EC_SDAT0 Table 4.22: PWR1 Pin 1 +V12 Pin 4 Pin 2 Pin 5 ACP-4340 User Manual/ 用户手册...
  • Page 52 ACP-4340 User Manual/ 用户手册...
  • Page 53 Appendix Exploded Diagram& Parts List 分解图 & 部件列表 分解圖 & 零件表...
  • Page 54 Exploded Diagram& Parts List/分解图&部件列表/ 分解圖 & 零件表 Figure A.1 Exploded Diagrams& Parts List/ 分解图 & 部件列表 / 分解圖 & 零件表 ACP-4340 User Manual/ 用户手册...
  • Page 55 Outer door frame HDD fan guard Power supply bracket 外门框 硬盘风扇保护罩 电源支架 外門框 硬碟風扇保護罩 電源支架 Inner door frame Alarm board Rear plate 内门框 报警板 后板 內門框 報警板 後板 USB cable Under plate USB 线 底板 USB 線 底板 ACP-4340 User Manual/ 用户手册...
  • Page 56 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2019 www.advantech.com.cn 使用前请检查核实产品的规格。本手册仅作为参考。 产品规格如有变更,恕不另行通知。 未经研华公司书面许可,本手册中的所有内容不得通过任何途径以任何形式复制、翻...
