7000MB-00X; but the mechanical design is for 1+1 redundant power
supply. For ACP-7000MB-40Z, sees Figure 2.15, it is with 400W ATX
PFC PS/2 single power supply. For the ACP-7000MB-46R, see Figure
2.16, you will understand it is with 460W 1+1 redundant power supply
inside.

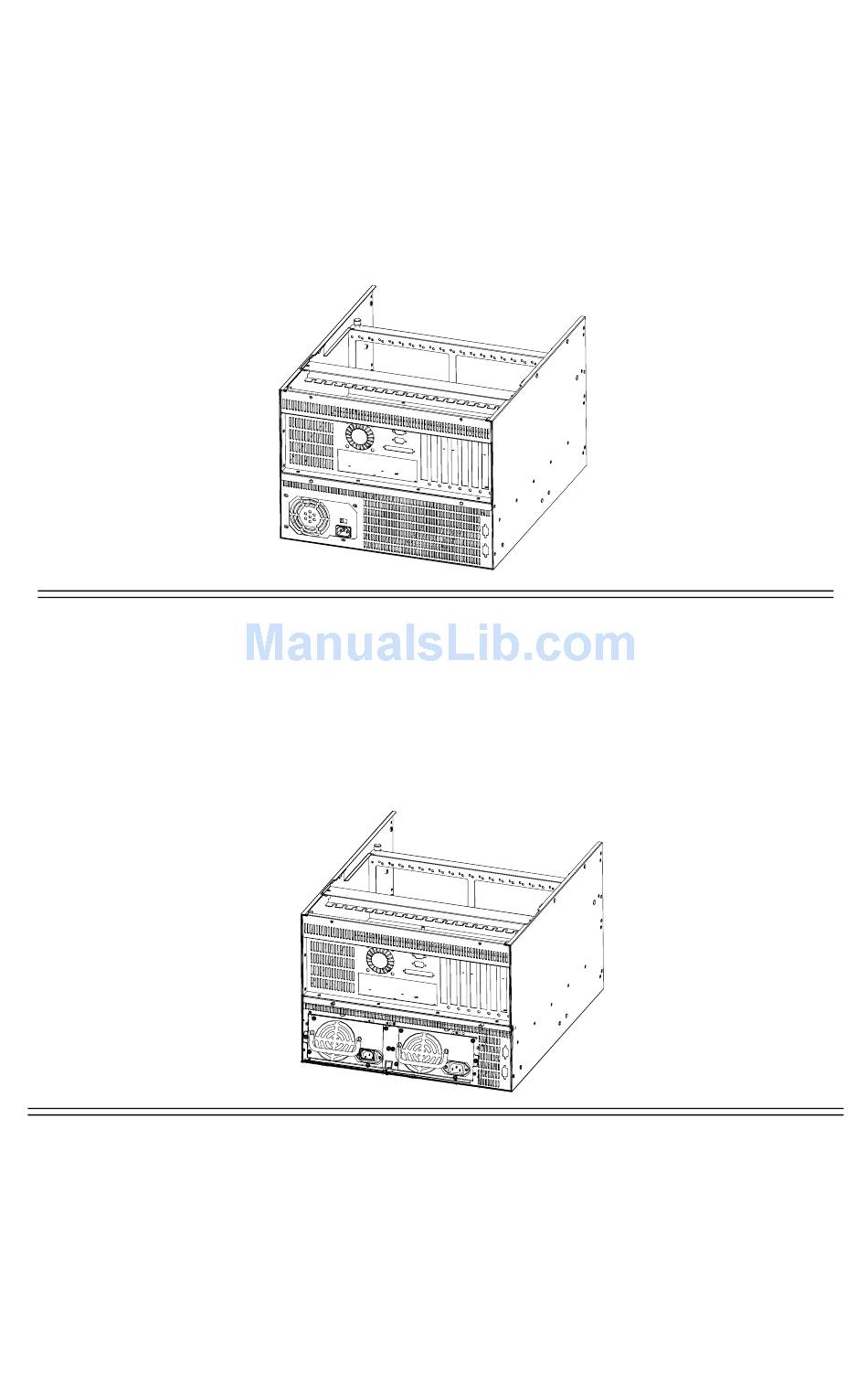

Figure 2.15: ACP-7000MB-00X
Figure 2.16: ACP-7000MB-46R
19 Chapter 2 System Setup
