C onnect w ith U 3
68-pin SCSI cable
2.4 Cooling Fan & Filter
There are four (4) Cooling Fans located on the front of the chassis. The
cooling fans are very easy to maintain since all of these four cooling fan
are hot swappable, see Figure 2.18. There are two (2) cooling fans
located inside chassis and on the rear of SCSI storage, these two cooling
fans are with easy maintain design, see Figure 2.19. When anyone cool-
ing fan breaks down, the system sounds a continuous alarm. To disable
the alarm, press the Alarm Reset Switch on the front panel and replace the
failing fan immediately.
There are three locations of front door with the filter. If the filter is
blocked with dust or other particles, you can refer to Figure 2.20 for filter
replacement. For each hot-swappable cooling fan is with filter inside. See
Figure 2.21.
ACP-7000 User's Manual
Fan 5/Fan 6
Connect with power supply

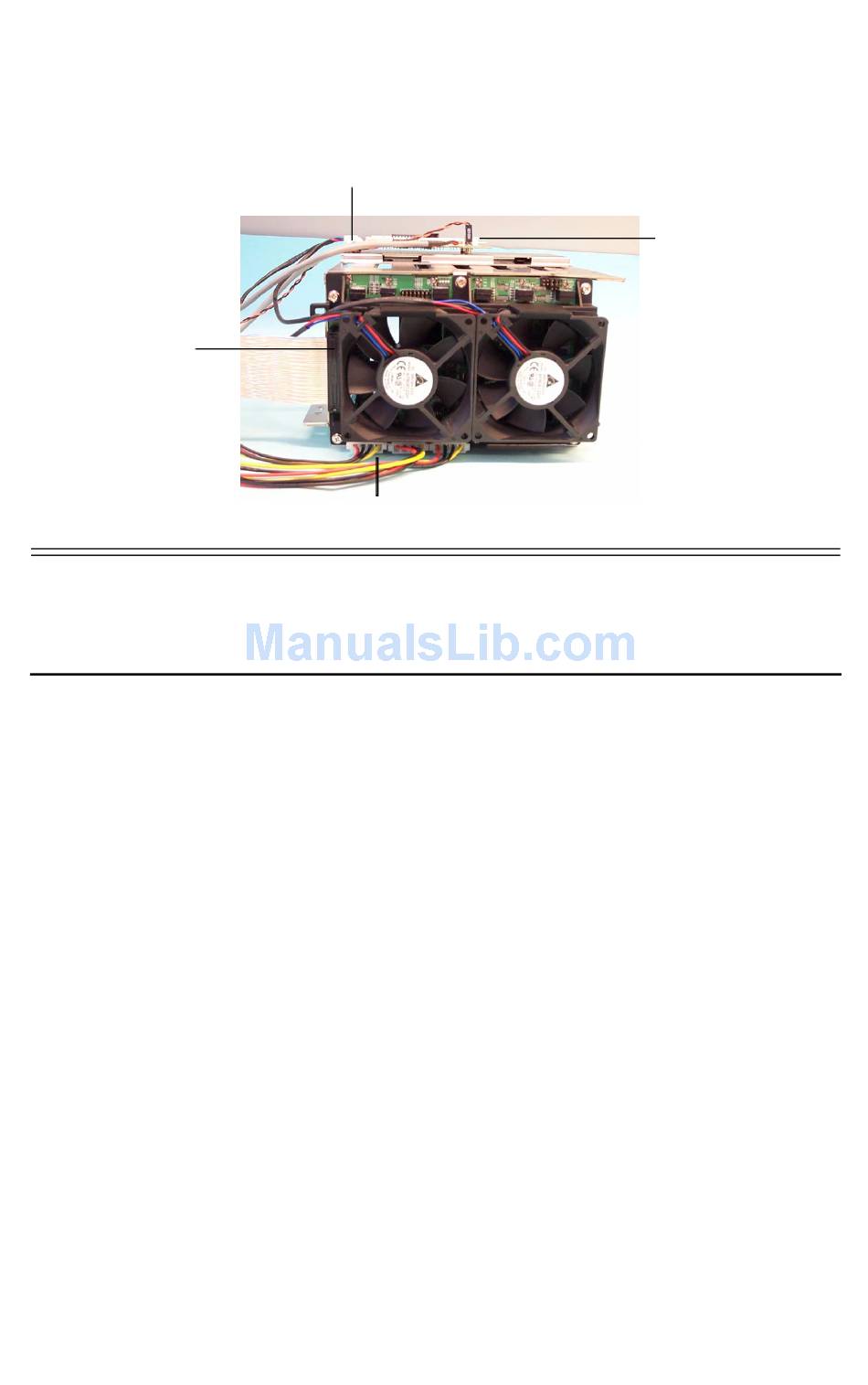

Figure 2.17: SCSI Storage Cabling
22
Alarm Board
