2.6 Attaching the Backplane to the Backplane Bracket

®
The backplane bracket has 29 attaching holes (see Figure 2-9). Any of six backplanes or the Intel
L440GX motherboard may be attached to backplane bracket. A table on the bracket shows which holes
should be used for each of the backplane/motherboard options.

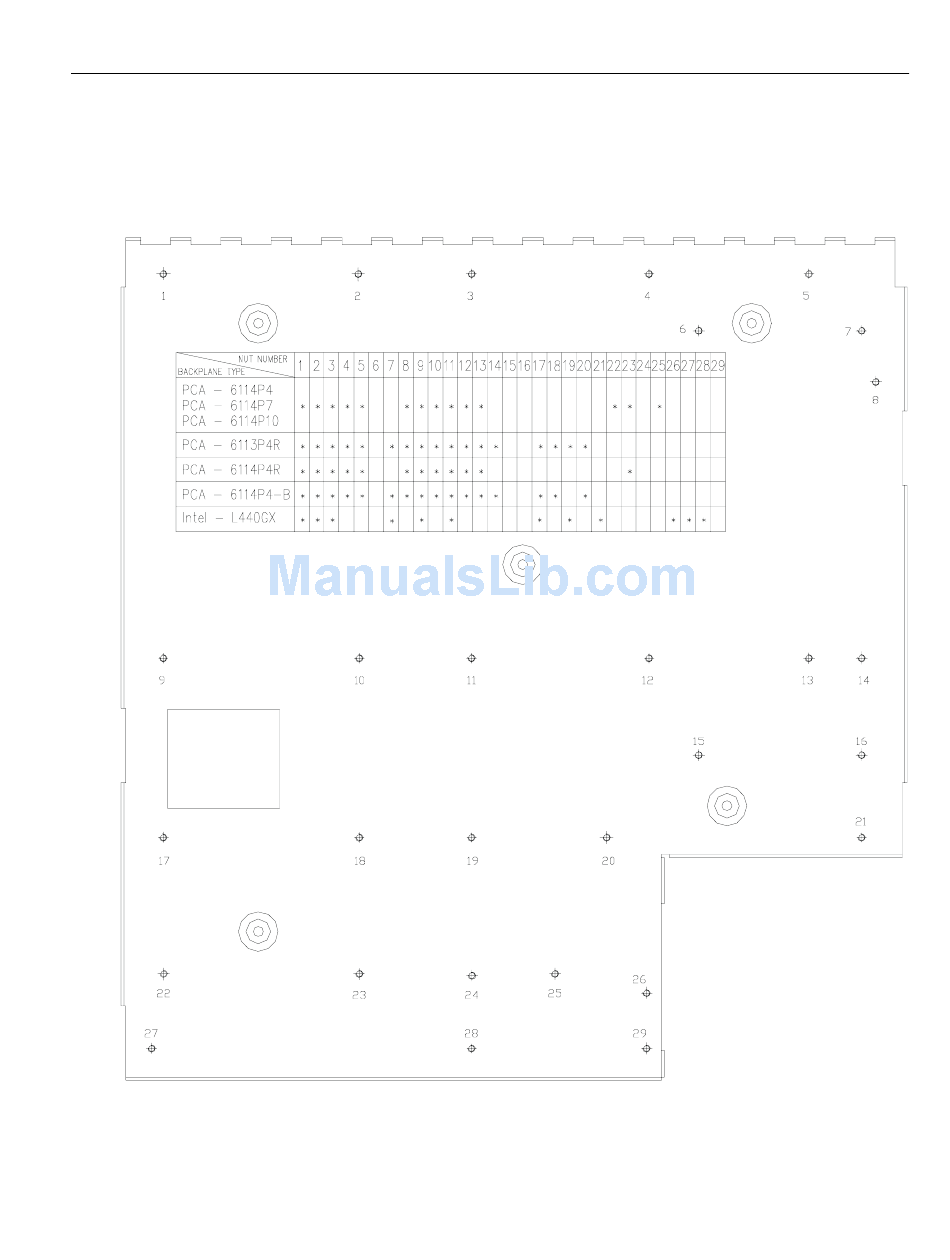

Figure 2-9: Backplane bracket
