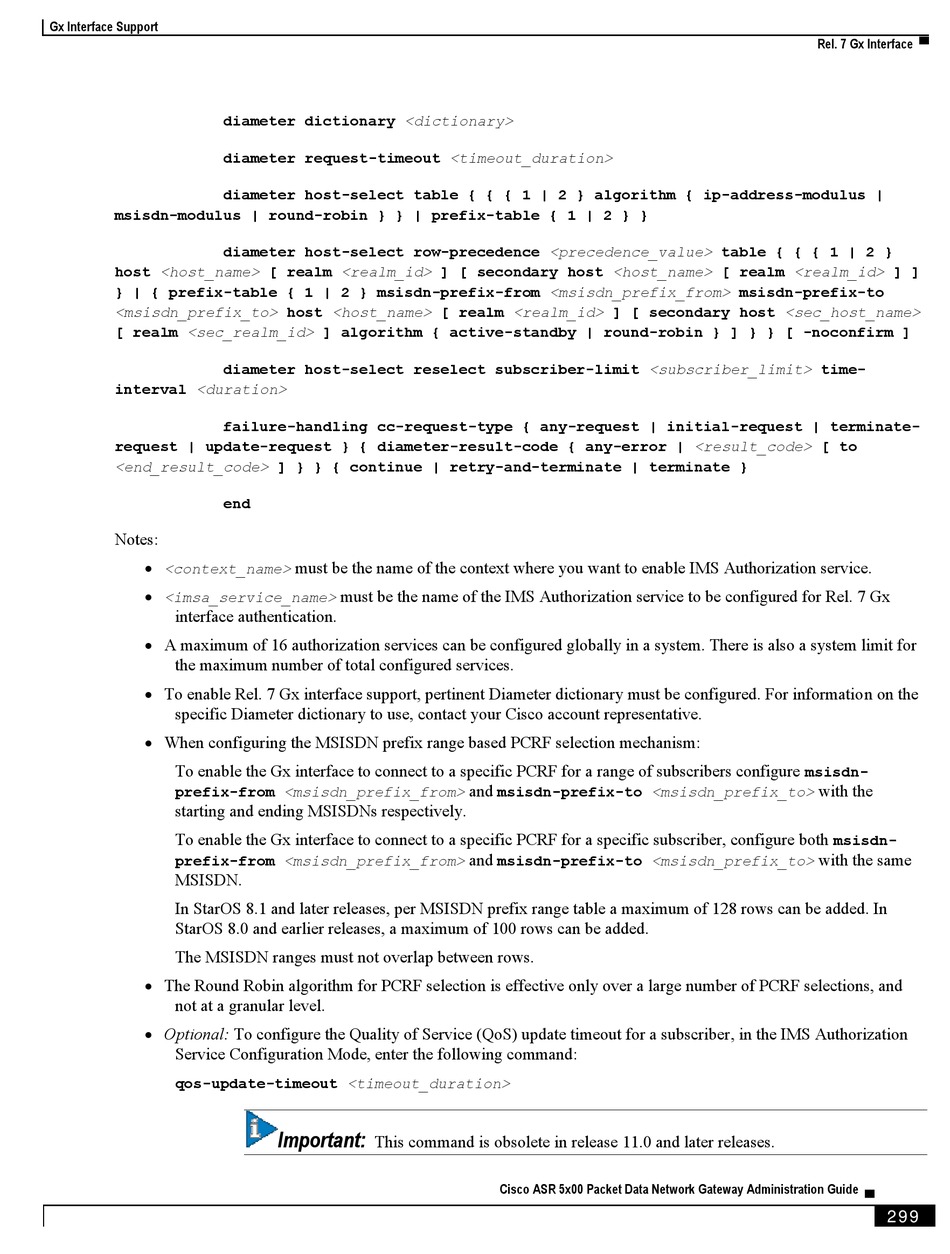

Cisco ASR 5x00 Administration Manual page 299

Gx Interface Support
diameter dictionary <dictionary>
diameter request-timeout <timeout_duration>
diameter host-select table { { { 1 | 2 } algorithm { ip-address-modulus |
msisdn-modulus | round-robin } } | prefix-table { 1 | 2 } }
diameter host-select row-precedence <precedence_value> table { { { 1 | 2 }
host <host_name> [ realm <realm_id> ] [ secondary host <host_name> [ realm <realm_id> ] ]
} | { prefix-table { 1 | 2 } msisdn-prefix-from <msisdn_prefix_from> msisdn-prefix-to
<msisdn_prefix_to> host <host_name> [ realm <realm_id> ] [ secondary host <sec_host_name>
[ realm <sec_realm_id> ] algorithm { active-standby | round-robin } ] } } [ -noconfirm ]
diameter host-select reselect subscriber-limit <subscriber_limit> time-
interval <duration>
failure-handling cc-request-type { any-request | initial-request | terminate-
request | update-request } { diameter-result-code { any-error | <result_code> [ to
<end_result_code> ] } } { continue | retry-and-terminate | terminate }
end
Notes:

<context_name>

<imsa_service_name>
interface authentication.
 A maximum of 16 authorization services can be configured globally in a system. There is also a system limit for
the maximum number of total configured services.
 To enable Rel. 7 Gx interface support, pertinent Diameter dictionary must be configured. For information on the
specific Diameter dictionary to use, contact your Cisco account representative.
 When configuring the MSISDN prefix range based PCRF selection mechanism:
To enable the Gx interface to connect to a specific PCRF for a range of subscribers configure
prefix-from <msisdn_prefix_from>
starting and ending MSISDNs respectively.
To enable the Gx interface to connect to a specific PCRF for a specific subscriber, configure both
prefix-from <msisdn_prefix_from>
MSISDN.
In StarOS 8.1 and later releases, per MSISDN prefix range table a maximum of 128 rows can be added. In
StarOS 8.0 and earlier releases, a maximum of 100 rows can be added.
The MSISDN ranges must not overlap between rows.
 The Round Robin algorithm for PCRF selection is effective only over a large number of PCRF selections, and
not at a granular level.
 Optional: To configure the Quality of Service (QoS) update timeout for a subscriber, in the IMS Authorization
Service Configuration Mode, enter the following command:
qos-update-timeout <timeout_duration>
must be the name of the context where you want to enable IMS Authorization service.
must be the name of the IMS Authorization service to be configured for Rel. 7 Gx
Important:
This command is obsolete in release 11.0 and later releases.
and
msisdn-prefix-to <msisdn_prefix_to>
and
msisdn-prefix-to <msisdn_prefix_to>
Cisco ASR 5x00 Packet Data Network Gateway Administration Guide ▄
Rel. 7 Gx Interface ▀
msisdn-
with the
msisdn-
with the same
