Chapter 7—Setup Mode

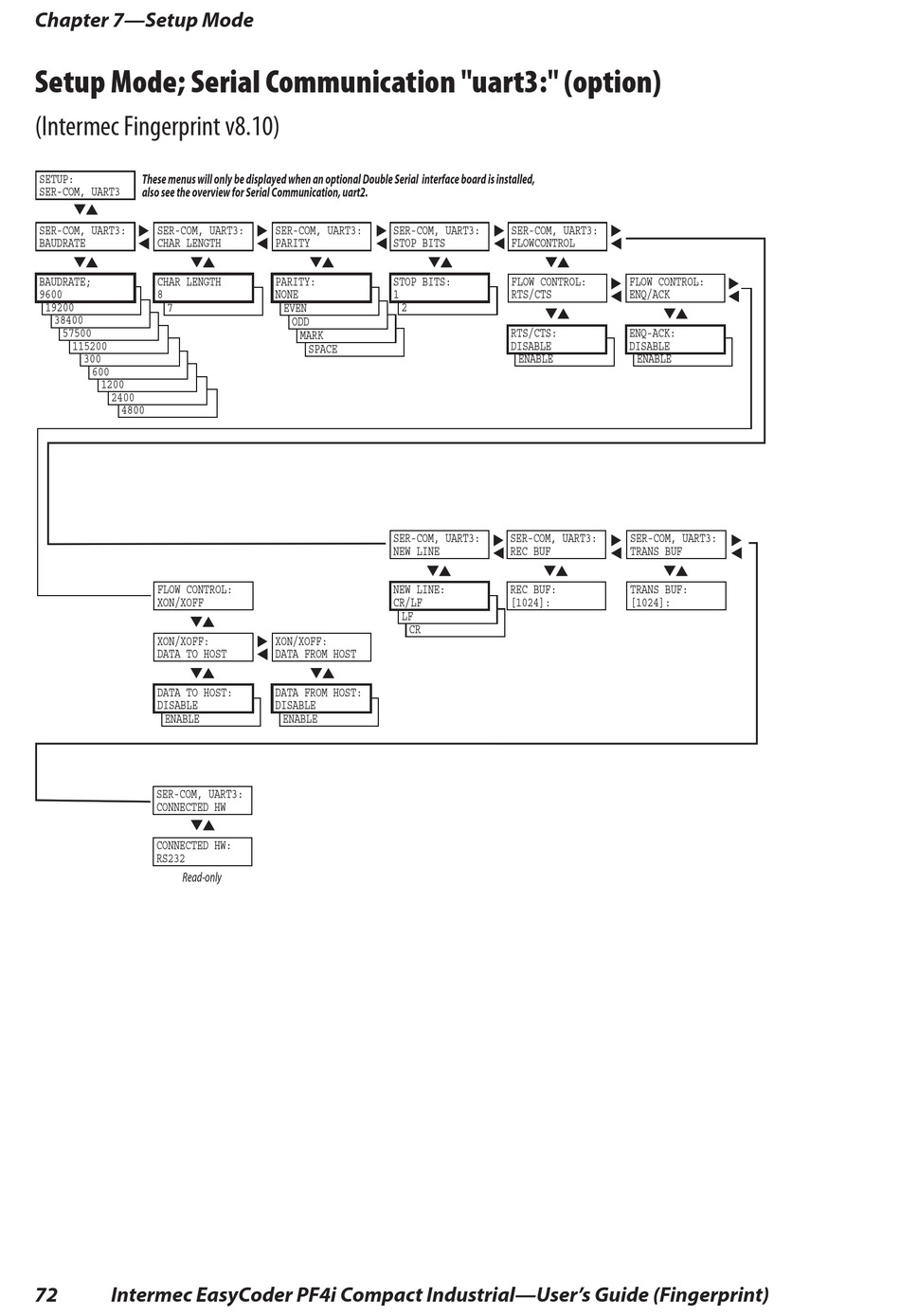

Setup Mode; Serial Communication "uart3:" (option)
(Intermec Fingerprint v8.10)
SETUP: These menus will only be displayed when an optional Double Serial interface board is installed,
also see the overview for Serial Communication, uart2.
SER-COM, UART3
SER-COM, UART3: SER-COM, UART3:
BAUDRATE CHAR LENGTH
BAUDRATE; CHAR LENGTH
9600 BAUDRATE; 8
CHAR LENGTH
19200 BAUDRATE; 7
38400
BAUDRATE;
57500 BAUDRATE;
115200 BAUDRATE;
300
BAUDRATE;
600 BAUDRATE;
1200 BAUDRATE;
2400
BAUDRATE;
4800
FLOW CONTROL:
XON/XOFF
XON/XOFF:
DATA TO HOST
DATA TO HOST:
DISABLE
DATA TO HOST:
ENABLE
SER-COM, UART3:
CONNECTED HW
CONNECTED HW:
RS232
Read-only
72 Intermec EasyCoder PF4i Compact Industrial—User's Guide (Fingerprint)
SER-COM, UART3: SER-COM, UART3:
PARITY STOP BITS
PARITY: STOP BITS:
NONE 1 STOP BITS:
PARITY:
EVEN 2
PARITY:
ODD
PARITY:
MARK
PARITY:
SPACE
SER-COM, UART3:
NEW LINE
NEW LINE:
CR/LF
NEW LINE:
LF
NEW LINE:
CR
XON/XOFF:
DATA FROM HOST
DATA FROM HOST:
DISABLE
DATA FROM HOST:
ENABLE
SER-COM, UART3:
FLOWCONTROL
FLOW CONTROL: FLOW CONTROL:
RTS/CTS ENQ/ACK
RTS/CTS: ENQ-ACK:
DISABLE ENQ/ACK: DISABLE ENQ/ACK:
ENABLE ENABLE
SER-COM, UART3: SER-COM, UART3:
REC BUF TRANS BUF
REC BUF: TRANS BUF:
[1024]: [1024]:
