Intermec EasyCoder PF4i User Manual page 32

Chapter 4—Media Load
Tear-Off , cont.
5

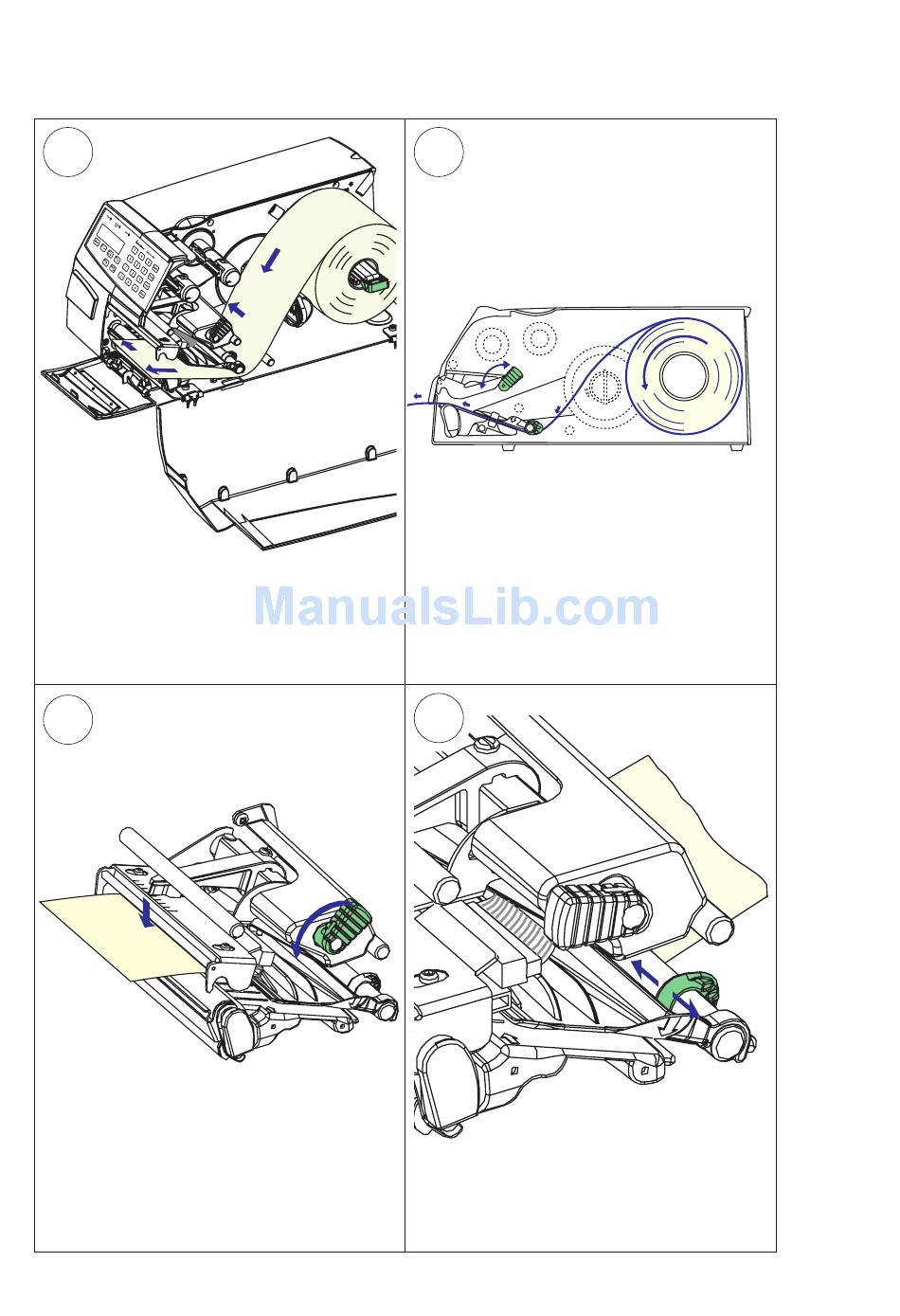

Route the media through the print
mechanism. Then push it inwards as far
as it will go. Close the edge guide on the
media supply post.
7
Turn the printhead lift lever counter-
clockwise to engage the printhead.
24 Intermec EasyCoder PF4i Compact Industrial—User's Guide (Fingerprint)
6
This diagram shows the media path.
8
Adjust the position of the green edge
guide so the media is guided with a
minimum of play.
