Outputs buttons and LEDs

Output 1 and Output 2 buttons — The Output 1 and Output 2 buttons select
2
output 1 or output 2. Press an output button to select that output and
automatically deselect the other output (figure 3-3).
Output 1 and 2 LEDs — The Output 1 and Output 2 LEDs indicate the output
that is selected (figure 3-3). Only one Output LED can be lit at a time.
Only one of the two outputs can be selected at a time.
1
OUTPUTS
Press
button
2

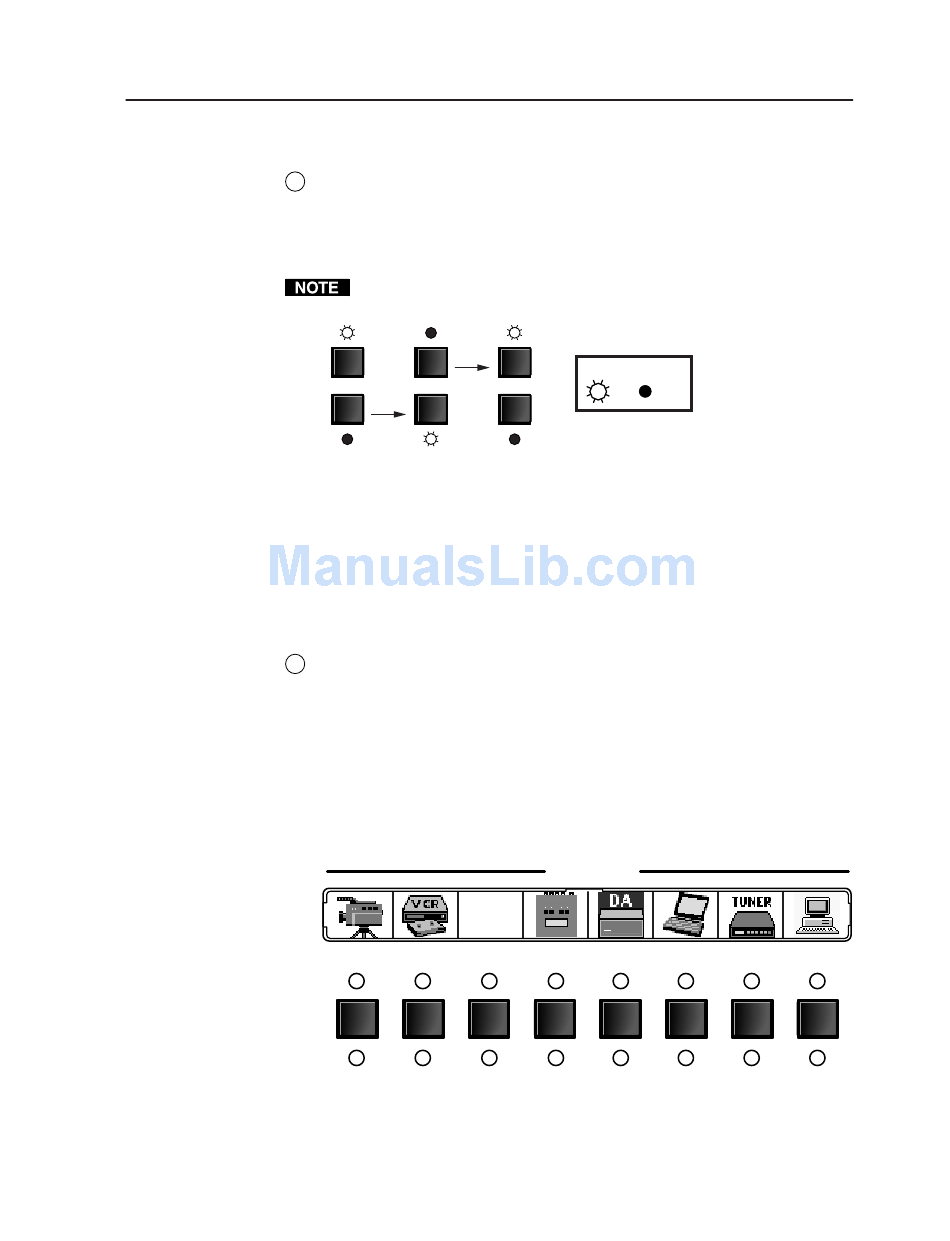

Figure 3-3 — Output selection cycle
When an output is selected, its tied input is indicated by the associated Input
LED. You can select a different input to tie to this output by pressing the
desired input button.

Input buttons, LEDs, and label window

Front panel input label window

Input label panel — This translucent panel can be removed and replaced to
3
insert a label behind the panel. To remove the panel, insert the Phillips-head
end of an Extron tweeker or small Phillips-head screwdriver into the hole in
one end of the panel, and gently slide the tab on the edge of the panel out of
the recess in the switcher housing.
Input labels can be created easily with Extron's button label generator
software, which ships with every Extron Matrix Switcher, or with any
Brother ® P-Touch™ labeler. Each input can be labeled with names,
alphanumeric characters, or even color bitmaps for easy and intuitive input
and output selection (figure 3-4). See chapter 5, Switcher Software, for details
on using the label software.
1
1
Figure 3-4 — Sample label
1 1
Press
button
OUTPUTS OUTPUTS
2 2
INPUTS
Rack DVD
(DVS 100)
2 3 4
2 3 4
Integration Scaling Matrix Switcher • Operation
LED key:
= on, = off
5 6 7
5 6 7
8
8
3-3
