Programmer's Guide
RS-232 Link

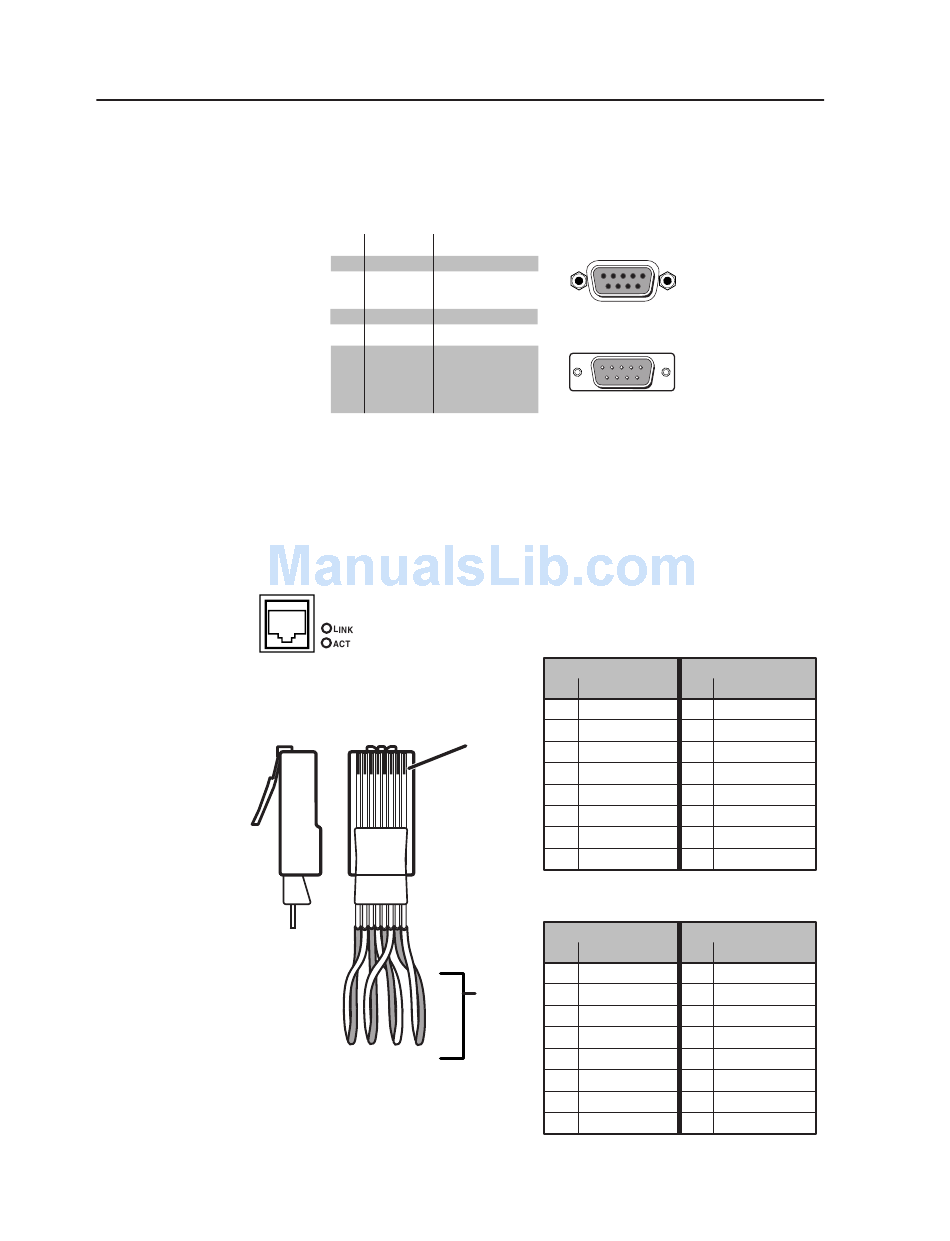

The switcher's rear panel Remote 9-pin D female connector (figure 4-1) can be
connected to the RS-232 serial port output of a host device such as a computer
running the HyperTerminal utility or a control system. This connection makes
software control of the switcher possible.
Figure 4-1 — Remote connector pin arrangement
The protocol is 9600 baud, 8-bit, 1 stop bit, no parity, and no flow control.
Ethernet Link
The rear panel Ethernet connector on the switcher can be connected to the an
ETHERNET
Figure 4-2 — RJ-45 connector pinout tables
4-2 Integration Scaling Matrix Switcher • Programmer's Guide
Pin RS-232 Function
1 — Not used
2 TX Transmit data
3 RX Receive data
4 — Not used
5 Gnd Signal ground
6 — Not used
7 — Not used
8 — Not used
9 — Not used
Ethernet LAN or WAN (figure 4-2). This connection makes SIS
control of the switcher possible using a computer connected to the
same LAN or WAN.
Side Clip Down
Pins 1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
1&2 7&8
3&6 4&5
5 1
9 6
Female
1 5
6 9
Male
Patch (straight) cable
Side 1
Pin Wire color
1 White-orange
2 Orange
RJ-45
3 White-green
connector
4 Blue
5 White-blue
6 Green
7 White-brown
8 Brown
Crossover cable
Side 1
Pin Wire color
1 White-orange
Twisted
2 Orange
Pairs
3 White-green
4 Blue
5 White-blue
6 Green
7 White-brown
8 Brown
Side 2
Pin Wire color
1 White-orange
2 Orange
3 White-green
4 Blue
5 White-blue
6 Green
7 White-brown
8 Brown
Side 2
Pin Wire color
1 White-green
2 Green
3 White-orange
4 Blue
5 White-blue
6 Orange
7 White-brown
8 Brown
