Wiring the network cable

The cable can be terminated as either a patch cable or a crossover cable (figure 2-8)
and must be properly terminated for your application:
• Patch (straight) cable — Connection of the ISM to an Ethernet hub, router, or
switcher that also hosts a controlling computer.
• Crossover cable — Direct connection between the ISM and a controlling
computer.
Side Clip Down
Pins 1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
1&2
3&6 4&5

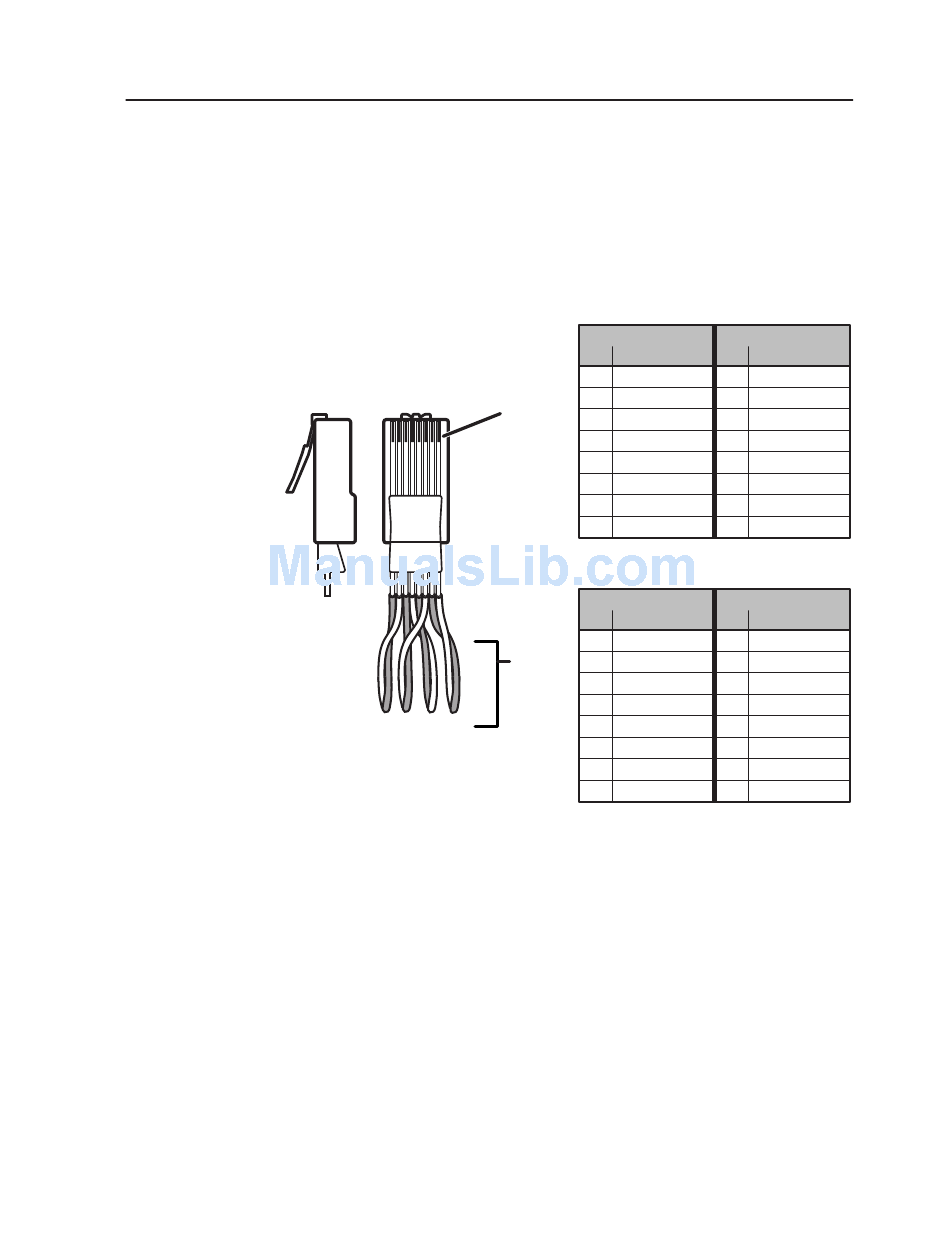

Figure 2-8 — RJ-45 connector pinout tables
Integration Scaling Matrix Switcher • Installation
Side 1
Pin Wire color
1 White-orange
2 Orange
RJ-45
3 White-green
connector
4 Blue
5 White-blue
6 Green
7 White-brown
8 Brown
Side 1
Pin Wire color
1 White-orange
Twisted
2 Orange
Pairs
3 White-green
7&8 4 Blue
5 White-blue
6 Green
7 White-brown
8 Brown
Patch (straight) cable
Side 2
Pin Wire color
1 White-orange
2 Orange
3 White-green
4 Blue
5 White-blue
6 Green
7 White-brown
8 Brown
Crossover cable
Side 2
Pin Wire color
1 White-green
2 Green
3 White-orange
4 Blue
5 White-blue
6 Orange
7 White-brown
8 Brown
2-7
