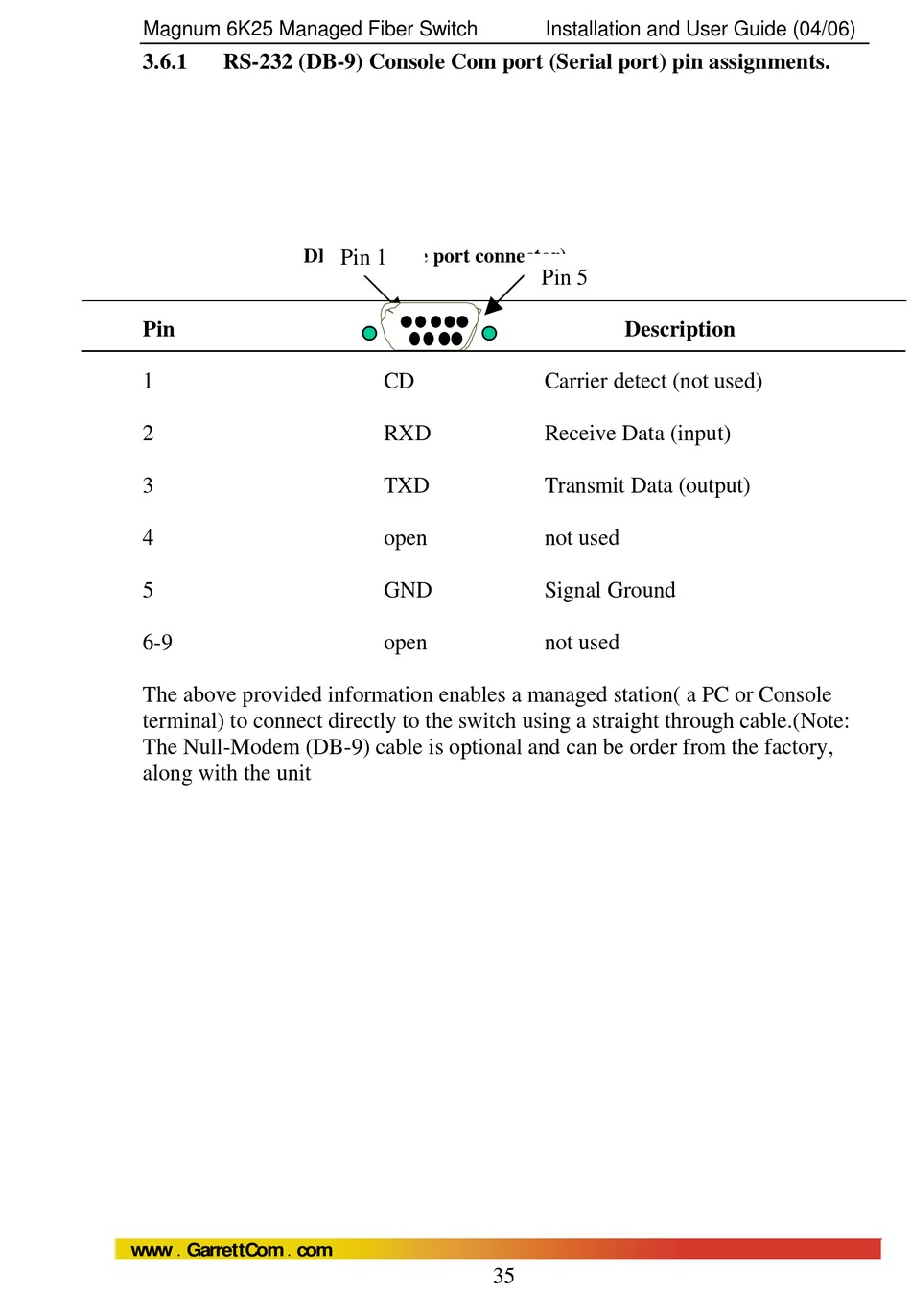

3.6.1 RS-232 (DB-9) Console Com port (Serial port) pin assignments.
Pin
1
2
3
4
5
6-9
The above provided information enables a managed station( a PC or Console
terminal) to connect directly to the switch using a straight through cable.(Note:
The Null-Modem (DB-9) cable is optional and can be order from the factory,
along with the unit
www GarrettCom com . .
DB-9 (Console port connector)
Pin 1
Signal
CD
RXD
TXD
open
GND
open
Installation and User Guide (04/06)
Pin 5
Description
Carrier detect (not used)
Receive Data (input)
Transmit Data (output)
not used
Signal Ground
not used
