Magnum 6K25 Managed Fiber Switch
Step 3. Remove 6KPM Card
Carefully and gently pull
out the daughter board from the latching
connectors, using both hands, gripping
the board near the latch-up connectors as
shown in Fig. 3.5.3b . If the now empty
slot is to remain unused, be sure to install
a 6KPM-BLNK face plate cover.

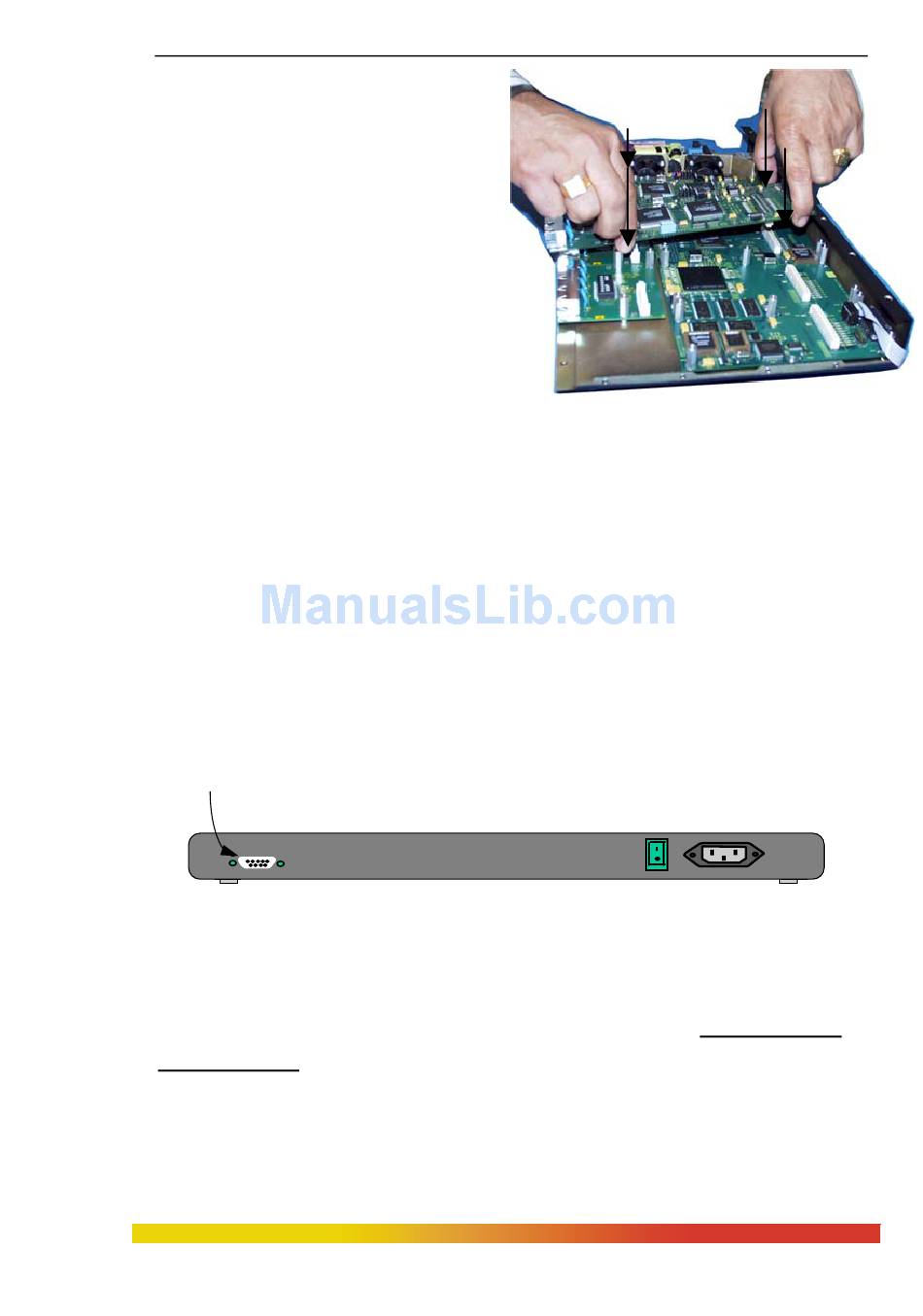

Figure 3.5.3b: Removing a 6KPM
Card
If another 6KPM card is replacing the one that has been removed, follow the steps as
described for installing a 6KPM card discussed in Section 3.5.1.
3.6 Connecting the Console Terminal to Magnum 6K25 (Management)
Use a DB-9 "null modem" cable to connect the Magnum6K25 Console Port
(the RS-232 port on the 6K25 Switch) to the your PC, so that your PC becomes
the 6K25's Console Terminal.
Note: The DB-9 cable does not include with the 6K25 unit package.
Console (DB-9)
Por
t
CONSOLE
PORT
Rear View of Magnum 6K25, (Typical Console Port is on the Rear of Reverse 6K25
Models)
Note: For detail description of Managed Network Software (MNS-6K) and Magnum
6K25 Switch configuration for Network Management, please refer to Magnum 6K25
Software Manual available on GarrettCom's FTP site. Detail info. about the MNS is
available on 2.2.9 ( see page no. 13) of this manual.
