Tractor Unit Installation in Pull Tractor Position

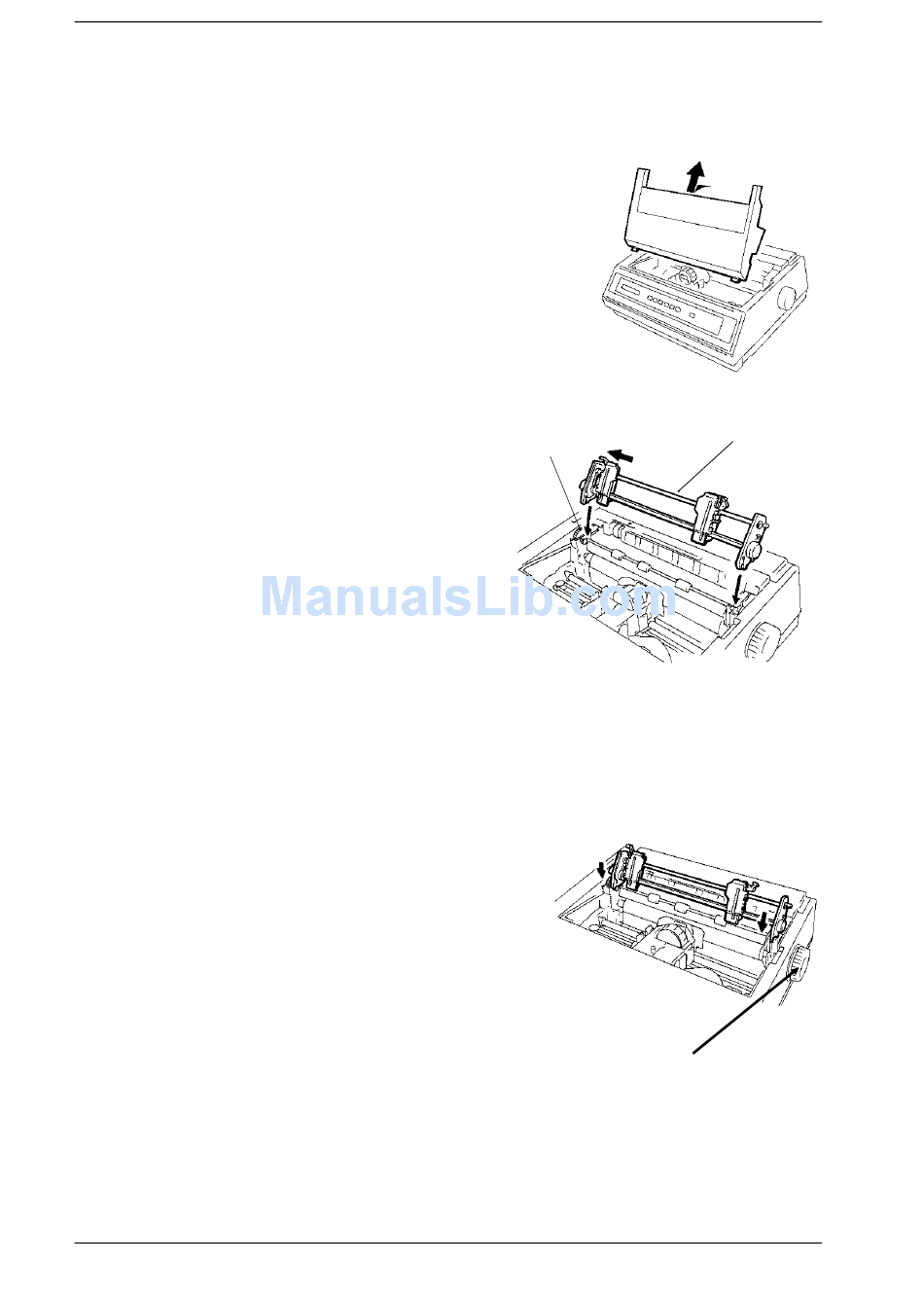

1.
Remove the carriage cover.
2.
Place the tractor unit onto the
printer with the gears of the
tractor unit facing down.
Move the left tractor to the
leftmost position before
installing the tractor unit.
3.
Press the tractor unit downward
until it clicks. Turn the platen
knob to ensure that the tractor
pins also rotate.Install the
carriage cover.
Gear
A78401745-001
Chapter 2
Tractor unit
Platen Knob
2.7
