4.2 Network

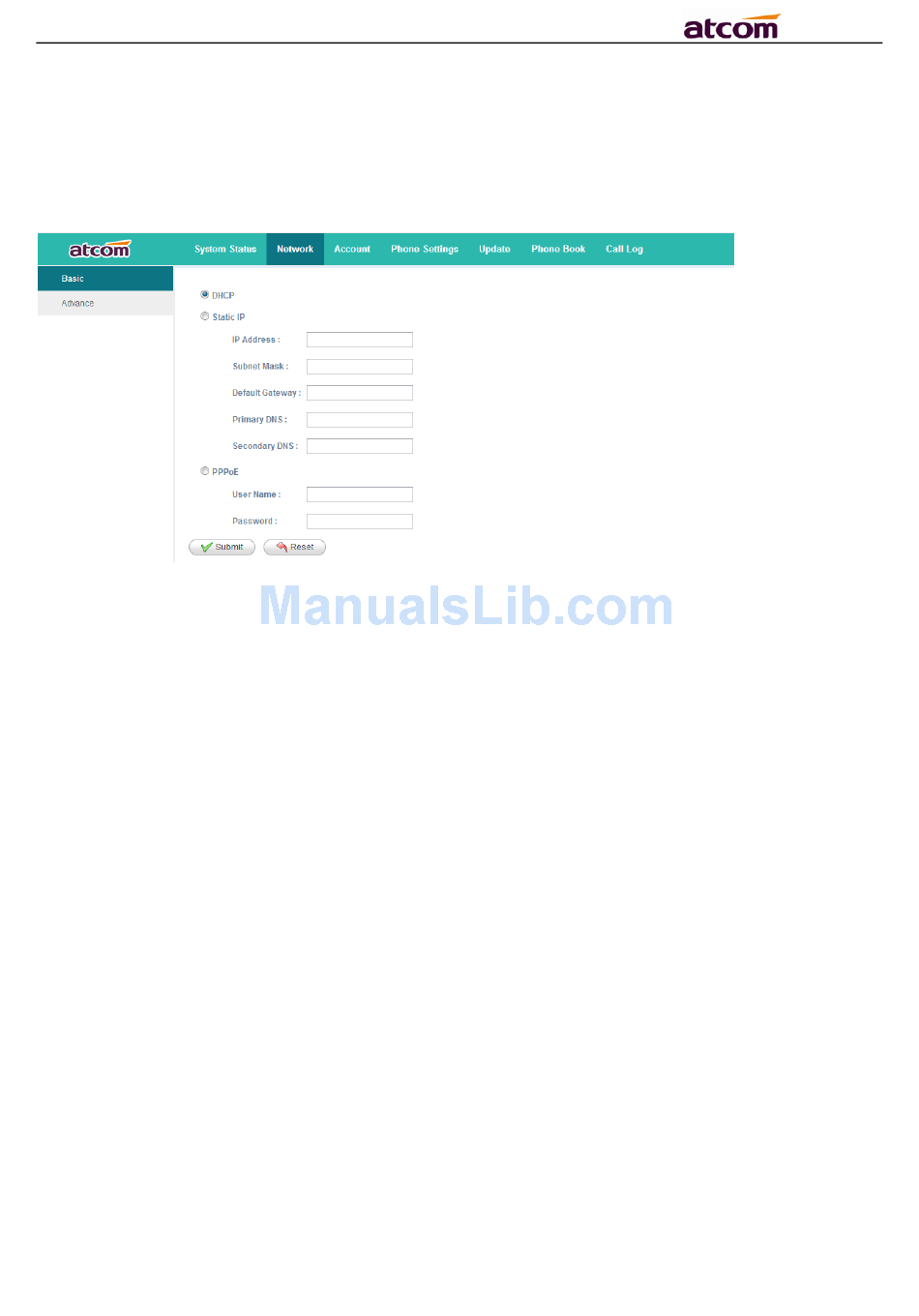

4.2.1 Basic

There are 3 ways to connect to the internet: DHCP, Static and PPPoE, please choose one
according to your own situation.
Network mode: DHCP, Static IP and PPPoE
1. DHCP
Obtain automatically dynamic IP from DHCP server.
2. Static IP
a) IP Address: set IP address
b) Subnet Mask：set netmask
c) Default Gateway：set gateway
d) Primary DNS：set primary DNS server
e) Secondary DNS：set secondary DNS server
3. PPPoE
Connect the LAN port of Rainbow 1 with the Ethernet port of modem then fill user name and
password of PPPoE which assigned by ISP (Internet Service Provider).
a) User name： set PPPoE user name
b) Password：set PPPoE password
Press 'Submit' button after finishing setting and all the settings info will be saved and taken effect
after Rainbow1 reboots.
