Update/Auto Provision; Reset & Reboot - ATCOM Rainbow 1 User Manual

Rainbow 1 IP Phone User Manual

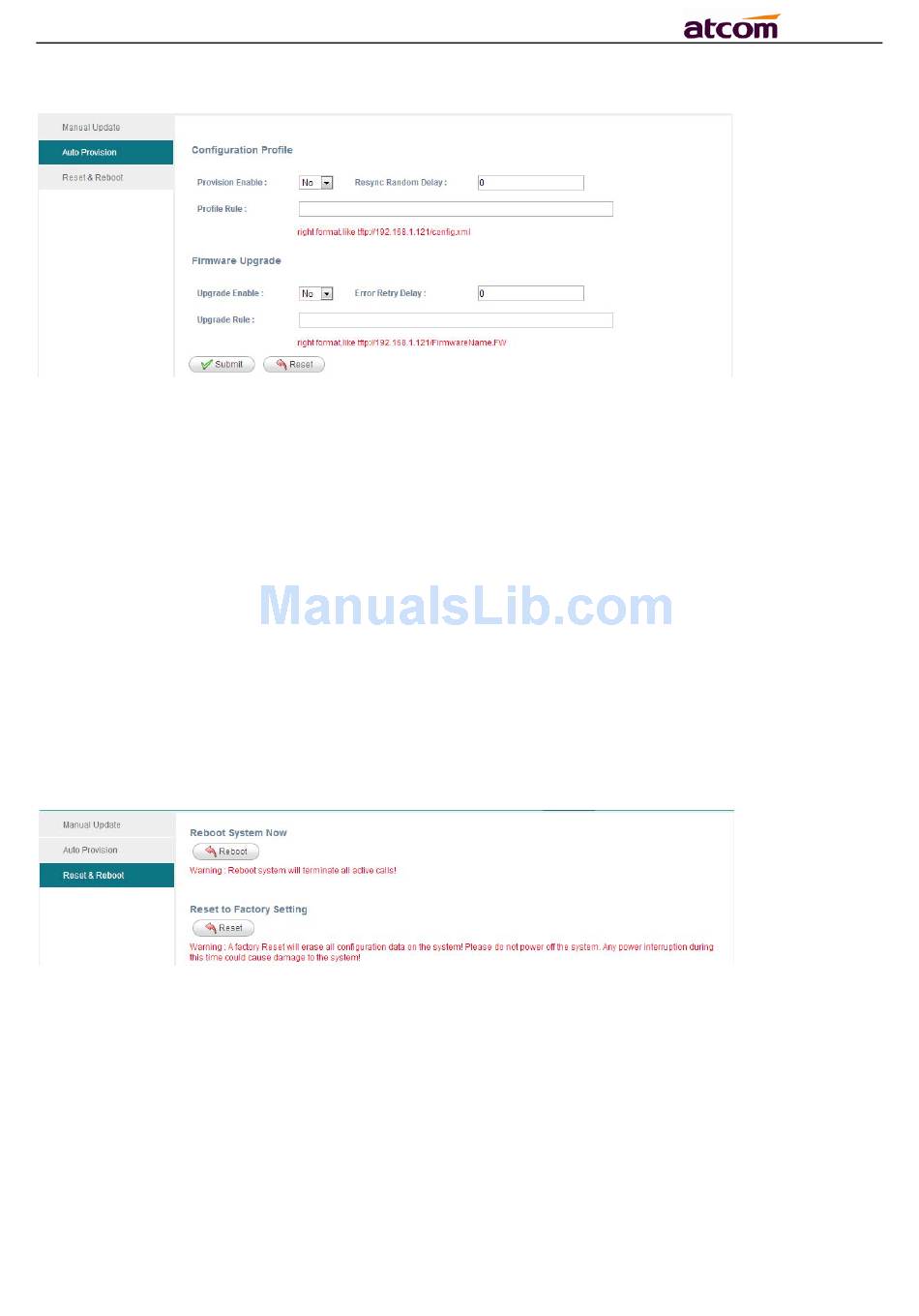

4.6.2 Update/Auto Provision

Configuration Profile
1. Provision Enable： Select "Yes" or "No" to enable or disable auto provision
2. Resync Random Delay: Set a random delay to upgrade configuration files.
3. Profile Rule: FTP/TFTP/HTTP protocol supported
Firmware Upgrade
1. Update Enable： Select "Yes" or "No" to enable or disable firmware update
2. Error Retry Delay: Set interval to retry update after encountering update failed
3. Upgrade Rule: The same as Profile Rule, the suffix of the firmware name should be '.fw' or
'.FW' and the firmware name includes blank character or Chinese characters are not permitted.
4.6.3 Reset & Reboot
1. Reboot
Reboot will terminate all active calls, and restart the phone in a several seconds.
2. Reset
Click the "Reset" button will set Rainbow 1 to factory default, please backup the config.xml,
phonebook.xml and attendant_keypad.xml before reset.
ATCOM TECHNOLOGY CO., LIMITED www.atcom.cn 33
