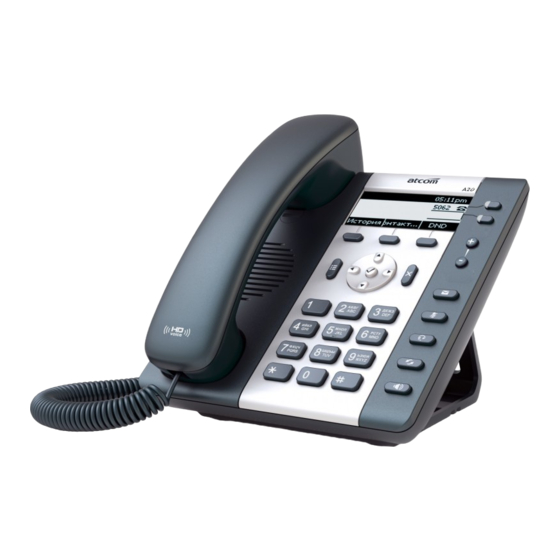

- Page 1 A20 LTE Quick Start Guide Version：1.0 2018-8-20...
- Page 2 A2X(W) Quick Start Guide Content 1、 Packaging ..................................1 2、 Installation ................................... 3 3、 Power up ................................... 10 4、 Connetion .................................. 10 5、 Quick configuration ..............................119...
- Page 3 A2X(W) Quick Start Guide 1. Packaging In the packaging box, we can see one IP phone, one handset, one bracket, two wall-hung brackets, one network cable, one handset cable and one 5V,2A power adapter. 2. Installation 2.1. Connecting port introduction From as below picture show the connecting port and insert the standard Nano-SIM card into the back cover way: (Note: please don’t plug in and off Nano card when the phone connected power)
- Page 4 A2X(W) Quick Start Guide 2.3 Installation instruction 2.3.1 Stand bracket installation instruction A. Bottom up the IP phone and press one-side joints of stand bracket into the slot as below:...
- Page 5 A2X(W) Quick Start Guide B. Press the other side joints into the slot according to the direction of the arrow: C. After installation, the picture is as below: D. Remove the stand bracket: Push the spring joint of stand and pull the stand according to the direction of the arrow.
- Page 6 A2X(W) Quick Start Guide 2.3.2 Wall-hung Installation A. Bottom up the IP phone and press one-side joints of wall-hung stand bracket into the slot as the picture below:...
- Page 7 A2X(W) Quick Start Guide B. Press the other side joints into the slot according to the direction of the arrow C. After install the wall-hung stand bracket, press one-side joints of stand bracket into the slot, please refer to the picture as below:...
- Page 8 A2X(W) Quick Start Guide D. Press the other side joints into the slot according to the direction of the arrow E. Knock in nails or screws on the wall according to the proportion of the distance between the hanging holes as below:...
- Page 9 A2X(W) Quick Start Guide F. It is the right picture after fixing the stand bracket below: G. Disassemble the stand bracket:...
- Page 10 A2X(W) Quick Start Guide Push the spring joint of stand and pull the stand according to the direction of the arrow. According to the direction of the arrow: 3. Power up 3.1. Connect to DC 5V/2000mA power adapter 3.2. The status indicator will be on during power-on, and the Welcome dialog will appear on the LCD.
- Page 11 4.1.2. After enable LTE, press ↓ key, you can see Network service, Network type, Signal strength and IMSI. 4.2. Connect to network cable: A20 LTE if connected to network via LAN port, then under the Bridge mode, other devices (Laptop, IP phone) are able to access network via the phone PC port.
- Page 12 A2X(W) Quick Start Guide The topology is as follows: 4.3. Check the phone status You can review its current IP address by pressing key when it is powered on and connected to the network. Then press ↓ key, it could see IPv4 address, MAC , Model, Firmware and More. Press More →...
- Page 13 A2X(W) Quick Start Guide 5.3.2 LCD menu configuration account. Press Menu → Settings → Advanced settings (default password: admin) → Accounts, input the account info. 5.3.3 Access to the webpage. When change to network cable mode, input the phone IP address at a browser , you will be required to input the username and password to access the web page.
