Chipset
The UNO-2059E uses a AMD CS5535 chipset for its SVGA controller. It
supports interlaced and non-interlaced analog monitors (color and mono-
chrome VGA) in high-resolution modes while maintaining complete IBM
VGA compatibility. Digital monitors (i.e. MDA, CGA and EGA) are
NOT supported. Multiple frequency (multisync) monitors are handled as
if they were analog monitors.
Display memory
With 1 ~ 16 MB share memory, the VGA controller can drive CRT dis-
plays or color panel displays with resolutions up to 1024 x 768 at 24 bit.
For 1024 x 768 color resolution, the display is expanded to 16 MB in
BIOS.

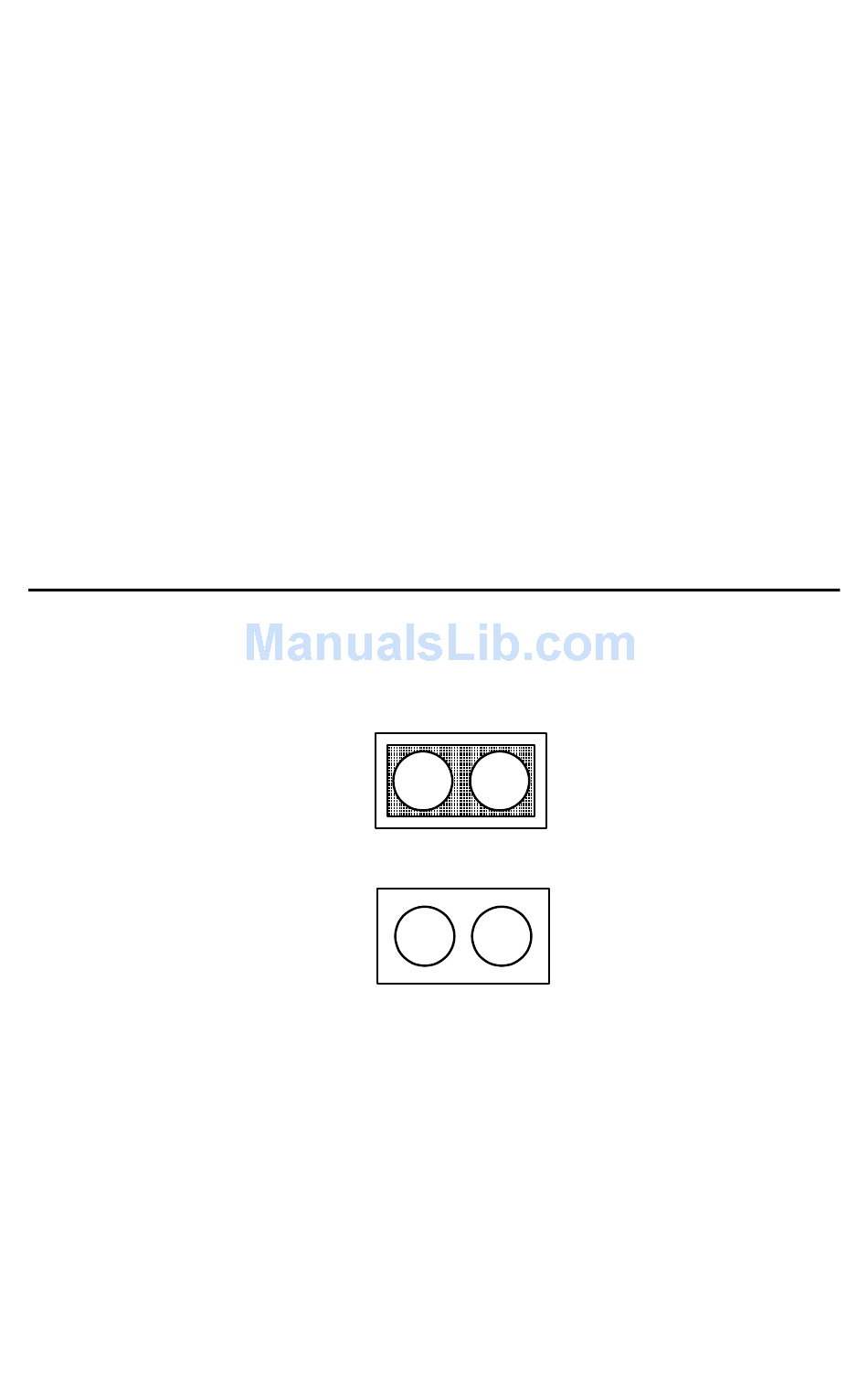

A.10 CompactFlash Master/SlaveJumper Setting (JP1)
The CompactFlash interface uses a primary IDE channel, which could be
set as the master or slave device by changing the setting of JP1.
Master Device: (Default)
Slave Device:
UNO-2059E has one CompactFlash card slot in the chassis. It supports
CompactFlash type I (3mm thick) and type II (5mm thick) cards.
A 32 MB CompactFlash card is equipped in the UNO-2059E. For UNO-
2059E, there is no CompactFlash card on the slot. UNO-2059E also sup-
ports IBM Microdrive storage device, which is an ultra-miniature hard
disk from IBM that was introduced in 1998. The Microdrive is built into a
Type II CompactFlash form factor.
UNO-2059E User Manual
JP1
JP1
