An example of the installation of COM3 is as follows:
RS-232/422/485 Selection
COM3 and COM4 support 9-wire RS-232, RS-422 or RS-485 interfaces,
and you can set corresponding jumpers to select serial ports as RS-232 or
RS-422/485 interfaces shown in Table A-7.
The system detects RS-422 or RS-485 signals automatically in RS-422/
485 mode.
Table A.7: Selecting RS-232/422/485 (COM3&4)
Serial Port
COM3
COM4

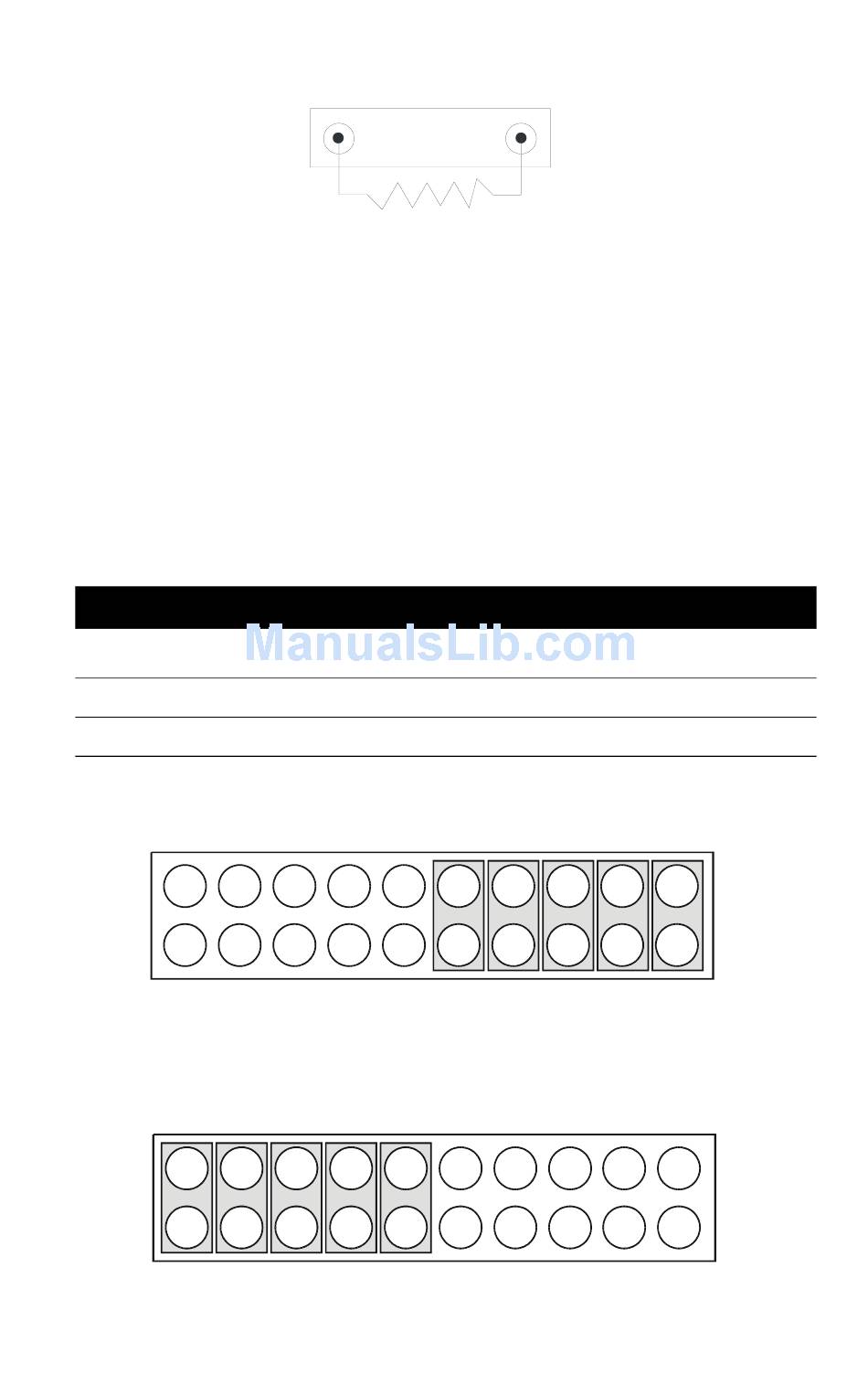

Jumper Setting for RS-422/485 Interface: (Default Setting)
A
B
Figure A.10: RS-422/485 Jumper Settings
Jumper Setting for RS-232 Interfaces:
A
B
Figure A.11: RS-232 Jumper Settings
120 Ω
Figure A.9: Terminator Installation
Corresponding Jumper to Select RS-232/422/485
C
D
E
C
D
E
TR3
JP6
JP7
F
G
H
F
G
H
25
I
J
I
J
Appendix A
