Appendix A Pin Assignments

A.1 Board Connectors & Jumpers

There are connectors and jumpers on the UNO-2059E board. The follow-

ing sections tell you how to configure the UNO-2059E hardware setting.

Figure A-1 and figure A-2 show the locations of UNO-2059E connectors

and jumpers.

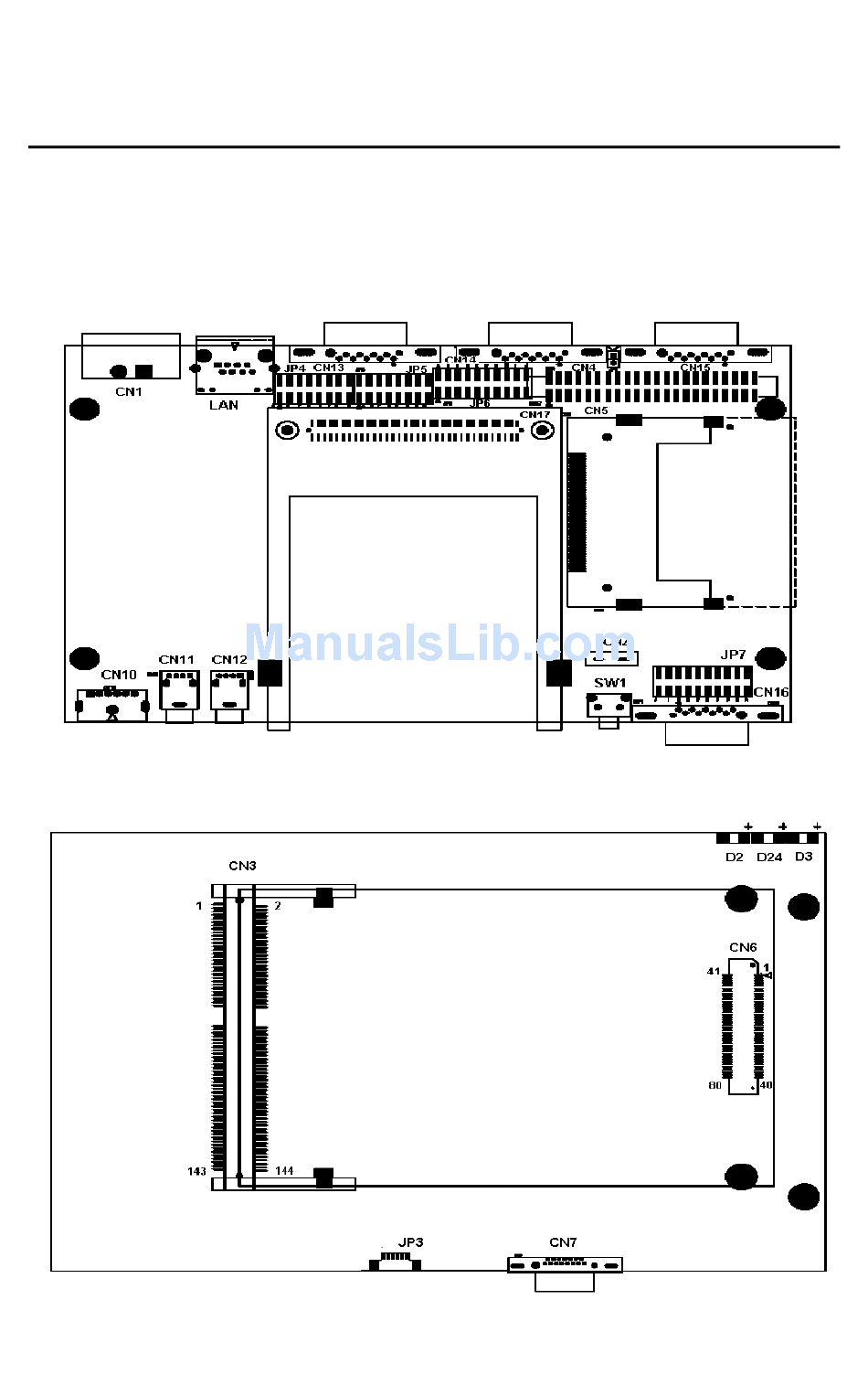

Figure A.1: Connector & Jumper Locations (Top)

Figure A.2: Connector & Jumper Locations (Bottom)

UNO-2059E User Manual
