- Page 1 (217) 352-9330 | Click HERE Find the Advantech ADAM 5510EKW/TP at our website:...

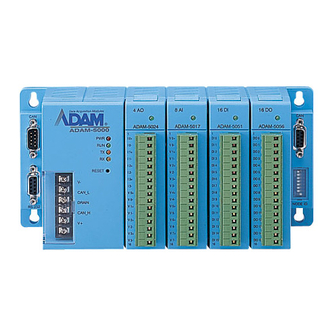

- Page 2 ADAM-5510 Series PC Based Programmable Controller Startup Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 3: Table Of Contents
Part No. 2003551010 1st Edition Printed in Taiwan August 2004 Table of Contents 1 System Requirements........1 1.1 Host Computer Requirements ........1 1.2 ADAM-5510 Series Requirements ......1 1.3 I/O Module Requirements........... 2 2 Hardware Installation........3 2.1 Power Wiring .............. 3 2.2 Programming Port Wiring........... -
Page 4: System Requirements
1 System Requirements 1.1 Host Computer Requirements • IBM PC compatible computer with 486 CPU (Pentium is recom- mended). • Microsoft Windows 95/98/NT4.0 SP4/2000 or higher versions. • Borland C++ 3.0 for DOS • At least 32 MB RAM. • 20 MB of hard disk space available •... -
Page 5: I/O Module Requirements
1.3 I/O Module Requirements At least one I/O module is needed to use the system. A variety of I/O modules are available to meet different application requirements. Table 1.1 gives a current listing of these modules for your reference. Table 1.1: I/O Module Support List Module Name Specification... -
Page 6: Hardware Installation
2 Hardware Installation 2.1 Power Wiring Power Supply + +10~+30 Vdc - ADAM-5510 Series Startup Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 7: Programming Port Wiring
2.2 Programming Port Wiring RS-232 COM3 (Prog. Port) Analog Input Analog Output Digital Input Digital Output PC COM Port Straight Through Cable ADAM-5510 Series COM3 ADAM-5510 Series Startup Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 8: Jumper Settings
2.3 Jumper Settings DIP Switch of ID Address: ID Address = Value of (SW1+SW2+SW3+SW4+SW5) COM Port Selection for Configuration Tool: COM1/RS-232 COM2/RS-485 SW7 and SW8 are reserved for future use. ADAM-5510 Series Startup Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 9: O Module Configuration
Insert the ADAM Products CD and setup the ADAM-5510 Series Utility. After the ADAM-5510 Series Utility has been installed, you will find two directories under “C:\Program Files\Advantech\” direc- tory. They are named “ADAM-5510M-5510E Utility” and “ADAM-5510TCP-5510ETCP”. If you are using ADAM-5510M or ADAM-5510E, you have to use the files under the “ADAM-5510M-5510E Utility”... -
Page 10: Config. I/O Modules By Adam-5510 Series Utility
3.2 Configure I/O Modules by ADAM-5510 Series Utility The following steps will use ADAM-5510/TCP as an example to demon- strate how to configure the ADAM-5017 Analog Input Module. Please click the “Program” directory under “ADAM-5510TCP- 5510ETCP Utility” and run “ADAM5510.EXE”, which is the ADAM-5510 Series Utility. - Page 11 Click the refresh button to check if the D drive of ADAM- 5510TCP is detected correctly. Download the I/O Module Configuration Tool “SIMU5KE.EXE” under the “Config” directory onto drive D: of ADAM-5510/TCP. ADAM-5510 Series Startup Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 12 Set DIP SW6 as ON. COM Port Selection for Configuration Tool: COM1/RS-232 Set DIP SW1 to SW5 as OFF. ID Address = 0 Run “SIMU5KE.EXE” and check the Communication Tool does use COM1/RS-232 port. ADAM-5510 Series Startup Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 13 Connect the Host PC to COM1/RS-232 on ADAM-5510/TCP by a null modem cable. RS-232 Null modem cable COM1 RS 232 Analog Input Analog Output Digital Input Digital Output PC COM port Null modem cable ADAM-5510 Series COM1 ADAM-5510 Series Startup Manual Artisan Technology Group - Quality Instrumentation ...
- Page 14 Insert the ADAM Products CD and setup the ADAM-4000-5000 Utility. Close the ADAM-5510 Series Utility and run ADAM-4000-5000 Utility “ADAM40005000.EXE”. ADAM-5510 Series Startup Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 15 Search the ADAM-5510/TCP Module and configure the input range of the ADAM-5017 Analog Input Module. Close the ADAM-4000-5000 Utility and reset the ADAM-5510/ TCP. ADAM-5510 Series Startup Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 16: Application Execution At Bootup
4 Application Execution at Bootup The following steps will demonstrate how to automatically execute an application after bootup. All that needs to be done is to update “AUTO- RUN.BAT” and run “DHCPSTAT.EXE” automatically after boot up. Download the “DHCPSTAT.EXE” onto ADAM-5510/TCP. Edit “AUTORUN.BAT”... - Page 17 Update “AUTORUN.BAT” to ADAM-5510/TCP in the utility. Reset ADAM-5510/TCP and check if the “DHCPSTAT.EXE” has been executed correctly. You are finished! ADAM-5510 Series Startup Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
