Chapter 3 Initial Setup

The procedure for installing a CompactFlash card into the

UNO-2059E is as follow, please follows these steps carefully.

Step 1: Remove the power cord.

Step 2: Unscrew four screws from the rear panel of the UNO-2059E.

Step 3: Remove the rear panel.

Step 4: Plug a CompactFlash card with user's OS and application pro-

gram into a CompactFlash card slot on board.

Step 5: Screw back the rear panel with four screws.

The aluminum made UNO-2059E provides good EMI protection and sta-

ble system grounding base. There is an easy-to-connect chassis grounding

point for you to connect to the "Earth." Users can select if connecting

power grounding with chassis grounding with an onboard jumper selec-

tion.

UNO-2059E has onboard jumper JP1 to select if connecting chassis

ground with system's power ground.

UNO-2059E User Manual

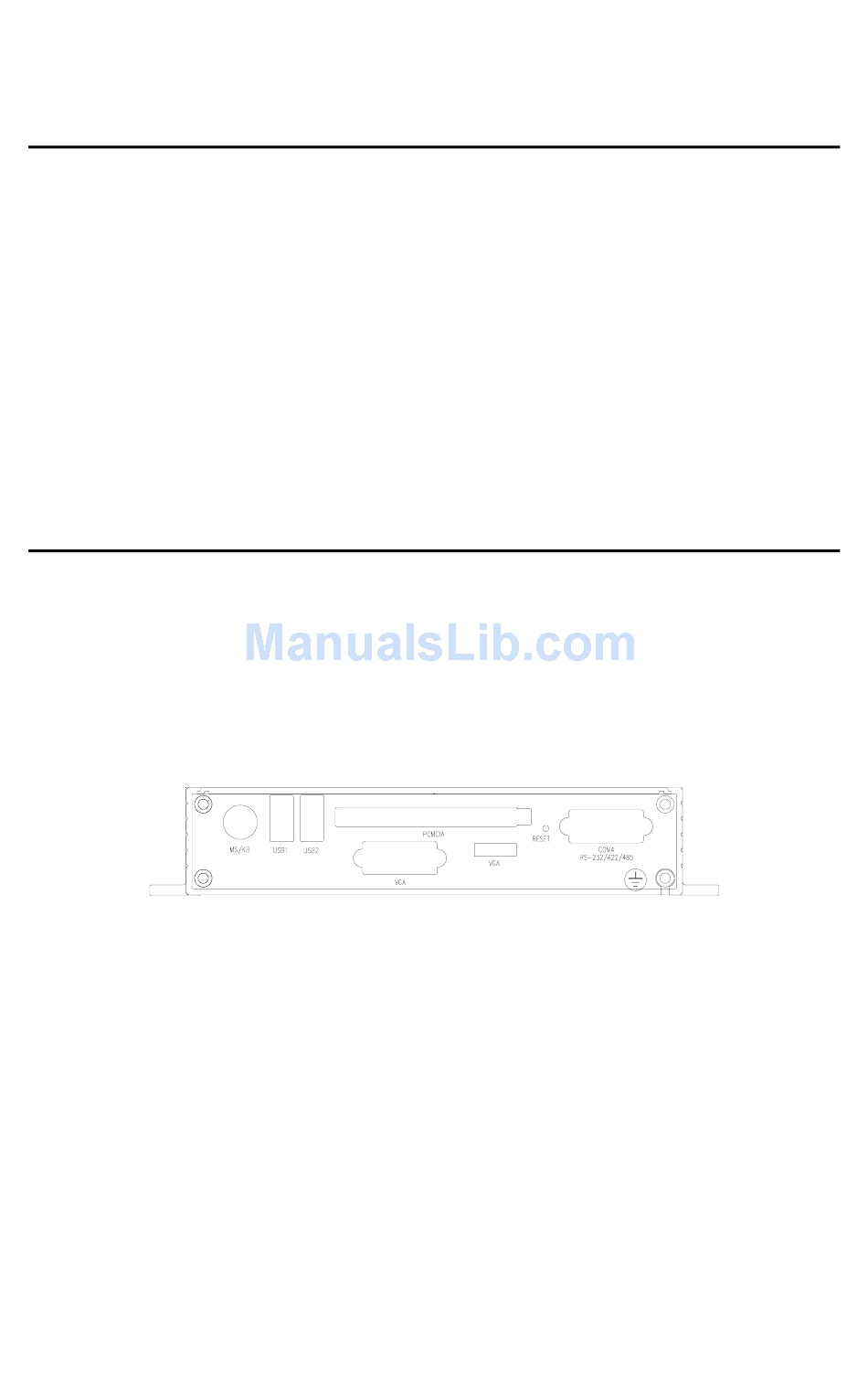

Figure 3.1: Chassis Grounding Connection s
