Advantech PCA-6781 Startup Manual

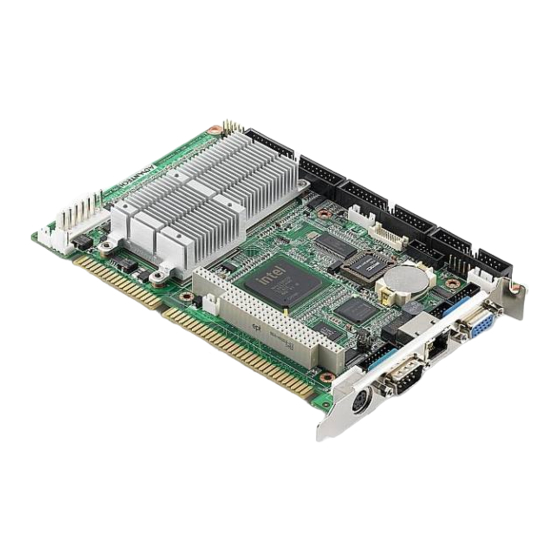

PCA-6781 ISA Celeron M Half-sized SBC with VGA/
LCD/LVDS/10/100 Ethernet/USB2.0 and SSD
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 x PCA-6781 series half-sized SBC
• 1 x Startup manual
• 1 x Utility disk/CD driver
• 1 x Y cablefor PS/2 Keyboard,
PS/2 Mouse
• 1 x E-IDE (HDD) cable
• 1 x FDD cable (600 mm)
• 1 x Printer+COM (RS-232)
cable w/ bracket
• 1 x ATX power cable 20P/7P 10 cm
• Jumper pack
• 1 x ATX feature cable
(3-pin 2.54 mm to 2.0 mm)
• 1 x USB 4 port cable w/ bracket
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note 1: For detailed contents of PCA-6781, please refer
to information on the enclosed CD-ROM (in PDF
format).
Note 2: Acrobat Reader is required to view any PDF
file.Acrobat Reader can be downloaded at:
www.adobe.com/Products/acrobat/readstep2.
html (Acrobat is a trademark of Adobe)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the PCA-6781 series Rev. A1
Part No. 2002678110
Printed in China
p/n: 1700060202
p/n: 1701400452
p/n:1701340705
p/n: 1700008891
p/n: 1703070101
p/n: 9689000002
p/n: 1700002343
p/n: 1700008887
1st Edition,
September 2008
Specifications
General
• CPU: Support Intel Celeron M 600 MHz,1 GHz
• BIOS: Award 4 Mbit Flash BIOS
• System Chipset: Intel 852 GM + ICH4
• System memory: 200 pin SODIMM x 1, double data rate
(DDR) 128 MB to 1 GB, accepts 128/ 256/512/1000 MB
DDR 200/266 DRAM
• 2nd Cache Memory: 512 KB on 600 MHz, 0 KB on
1 GHz
• Enhanced IDE Interface: Supports one enhanced IDE
channels. Primary master supports ATA-100 mode;
Primary slave only supports ATA-33 and PIO mode. CFC
card occupies Primary slave
• Serial ports: Two serial ports:
- COM1: RS232
- COM2: RS232/422/485
• Parallel port: One parallel port, supports SPP/EPP/ECP
• Keyboard/mouse connector: Supports standard PC/AT
Keyboard and a PS/2 Mouse
• Power Management: Supports Power Saving Mode
including Normal/Standard/Suspend modes. APM 1.2
compliant
• FDD interface: Supports up to one FDD device
• USB: 4 USB ports, USB 2.0 compliant
• SSD: Support CompactFlash Card Type I/II
• Watchdog timer: 0 ~ 255 sec. System reset or IRQ11
• Expansion Interface: ISA gold finger and PC/104
interface
Display
• Chipset: Intel 852GM
• Memory Size: Shared up to 64 MB, support DVMT
• Resolution:
- CRT Modes:
1600 x 1200@24bpp (85 Hz)
- LCD/Simultaneous Modes:
up to UVGA panel resolution with frequency range from
25 MHz to 112 MHz
• LVDS Interface: support 2 channel (36-bit) LVDS LCD
panel
Ethernet Interface
• Chipset: Intel 82551QM 10/100 Mbps LAN Chip
• Ethernet interface: IEEE 802.3u (100BASE-T) protocol
compatible
• Connection: On-board RJ-45 connector
PCA-6781 Startup Manual 1
