Controls and Connections:

1. Channel LED indicators: Displays microphone mute and pairing states.
2.
Diversity Antenna: One or two sets (4 channel or 8 channel).
3.
Pairing Push Buttons: For pairing microphones to Base Station.
4.
Two Line LCD Display for front panel operation, command and control.
5.
Navigation Buttons for menus on front panel LCD interface. (see Section Executive HD Base Station
Front Panel Operation )
6.
On/Off Switch: Powers up unit.
7.
Power In Receptacle (100-240 VAC).
8.
Ethernet Port
9.
System Reset Button
10.
Mini-Phoenix Connector: Multiple Base Station (BUS) synchronization connection.
11.
RS-232 Serial Interface, DB9 (see Section Using the Rear Panel RS-232 Serial Port)
12.
Base station status LED's (see Section Revolabs Executive HD ™ Indicator LEDs)
13.
Configuration DIP Switches (see Section Using Configuration DIP switches)
14.
Mini-Phoenix Connectors: Balanced Audio in and out connections (4 or 8 channels, in and out).

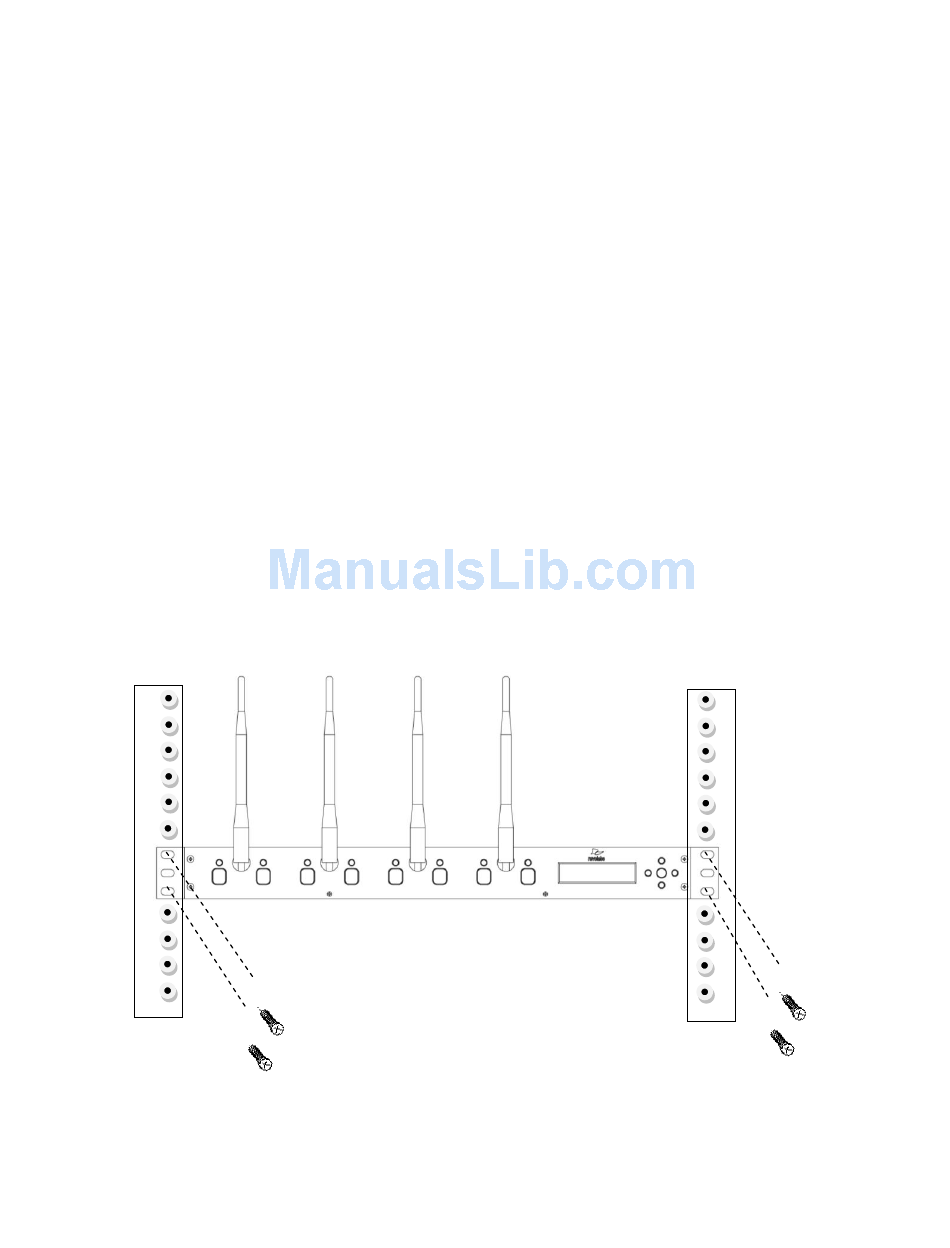

The Revolabs Executive HD ™ Base Station is designed to be installed into a standard 19‖ AV rack
system using the attached rack ears.
