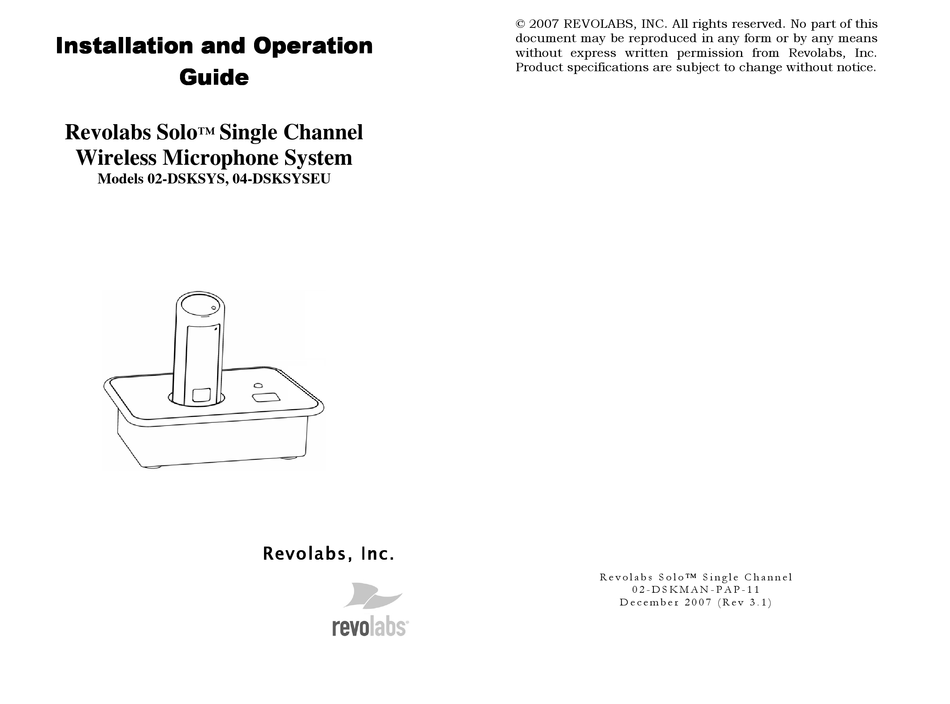

Revolabs Solo
™
Wireless Microphone System
Models 02-DSKSYS, 04-DSKSYSEU
Single Channel
Revolabs, Inc.
Revolabs, Inc.
Revolabs, Inc.
Revolabs, Inc.
© 2007 REVOLABS, INC. All rights reserved. No part of this
document may be reproduced in any form or by any means
without express written permission from Revolabs, Inc.
Product specifications are subject to change without notice.
R e v o l a b s S o l o ™ S i n g l e C h a n n e l
0 2 - D S K M A N - P A P - 1 1
D e c e m b e r 2 0 0 7 ( R e v 3 . 1 )

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 02-DSKSYS and is the answer not in the manual?

Questions and answers

Related Manuals for Revolabs 02-DSKSYS

Summary of Contents for Revolabs 02-DSKSYS

  • Page 1 © 2007 REVOLABS, INC. All rights reserved. No part of this document may be reproduced in any form or by any means I I I I nstallation and Operation nstallation and Operation nstallation and Operation nstallation and Operation without express written permission from Revolabs, Inc.

  • Page 2: Table Of Contents

    Table of Contents This section contains important information regarding safe and efficient Safety and General Information.............1 system operation, and declarations of required certification / regulation compliance. Please read this information prior to using your Revolabs Introduction ..................4 system. System Components ..............5 FCC User Information and Notice Revolabs Solo™...
  • Page 3 Obey the laws and regulations on the use of these products. 02-DSKSYS North America UPCS Usage Restriction Due to the UPCS frequencies used, this product is licensed for operation only in the United States of America and Canada.

  • Page 4: Introduction

    System Components System Components Introduction Introduction Introduction Introduction Your Revolabs Solo™ Single Channel System package Congratulations on the purchase of your Revolabs contains: Solo™ Single Channel wireless microphone system! This wireless system provides high band-width audio Compact Charger Base •...

  • Page 5: Mute Button

    System To modify the default microphone earpiece audio output settings: The Revolabs Solo™ Single Channel system is easily installed into either the office or conference room 1. At the lower-right of your screen, click the Start environment. Simply plug the power supply into a button.
  • Page 6 Open the Volume settings for Sound recording to view the volume levels selected for the microphone input (Capture) on the computer. The Sounds and Audio Devices Properties dialog will display, as shown. The solo-Desktop device will be selected. Make sure that the level for the Microphone is close to the top (maximum) and that the Mute box is not checked.
  • Page 7 At the bottom of the Microphone section, click the Mute box in the Microphone section to prevent the Microphone directly feeding back its own audio to the earpiece (i.e. “sidetone”). It may be necessary to use the Options- Properties menu to display the Microphone volume control.

  • Page 8: Revolabs Solo™ Wireless Microphones

    Revolabs Solo™ Wireless Microphone Revolabs Solo™ Wireless Microphone Revolabs Solo™ Wireless Microphone Revolabs Solo™ Wireless Microphones s s s The double-flashing RED LED on the Microphone and Charger Base confirm that the mic is paired Using with Wearable Wireless Microphone and muted.

  • Page 9: Using With Tabletop Microphone

    To use the Wireless TableTop Microphone: Using with XLR Microphone Wireless Adapter 1. Remove the microphone from the Charger Base. The Revolabs Solo™ Universal Wireless Adapter for The microphone turns on and mutes automatically Handheld Microphones, shown in the following figure,...
  • Page 10 6. Power/Charging Port — docks to all Solo Charger Bases. Important: Always remove the microphone from the Adapter by pressing the latch switch and To use the Revolabs Solo™ Universal Wireless separating the parts before returning the Adapter Adapter: to the Charger Base.

  • Page 11: Using With A Solo Executive Multi-Channel System

    Important: The Lithium Polymer rechargeable battery will cease. If not, the microphone will turn off. that powers the Microphone is not user serviceable. Please see the Revolabs website ( ) for www.revolabs.com Using with a Solo Executive Multi-channel System information regarding battery replacement and proper The Revolabs Solo™...

  • Page 12: Pairing The Microphone To The Charger Base

    Executive Single Channel system broadcast/receive alternately GREEN and RED for a few seconds and power. turn OFF. If this happens, repeat these steps. Pairing the Microphone to the Charger Base “Pairing” creates an encrypted association between the Wireless Microphone and the Charger Base with a unique electronic serial number.

  • Page 13: Led Status Indications

    LED Status Indications LED Status Indications LED Status Indications Revolabs, Inc. warrants this product to be free of manufacturing The following LED patterns are shown on either the defects. Repair or replacement of any defective part or unit (at the Microphone or the Charger Base.
  • Page 14 0.9” (2.3 cm) x 0.8” (2.0 cm) x 4.0” (10.2 cm), 0.05 lb (0.02 kg) Shipping Weight 1.5 lbs (0.68 kg) Radio Frequency 02-DSKSYS - 1.92 to 1.93 GHz (UPCS North America) Note: Microphones must be fully charged 04-DSKSYSEU - 1.88 to 1.90 GHz (DECT EU) Connectors...
