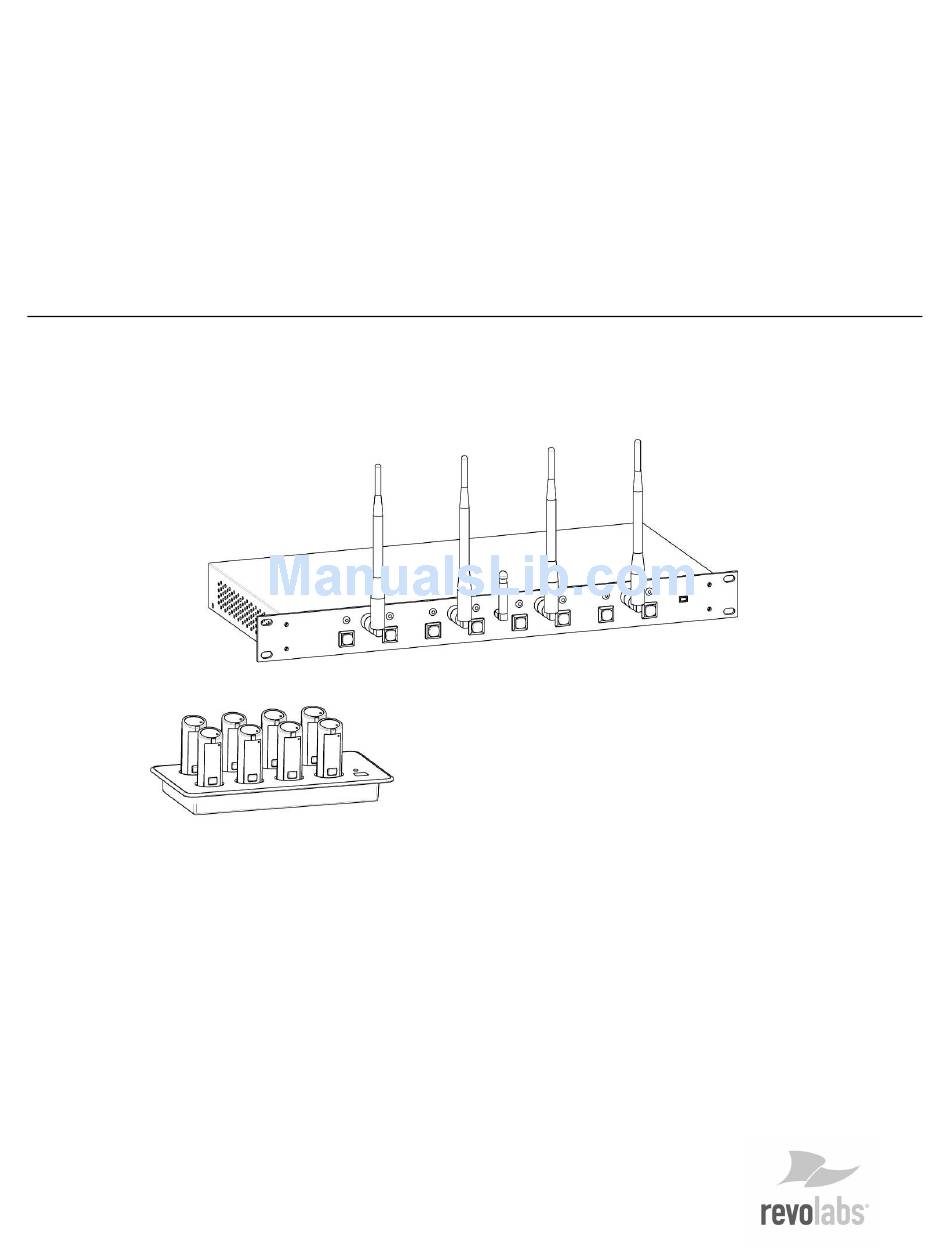

- Page 1 Installation and Operation Manual SOLO – EXECUTIVE Wireless Microphone System...
- Page 2 © 2006 REVOLABS, INC. All rights reserved. No part of this document may be reproduced in any form or by any means without express written permission from Revolabs, Inc. Product specifications are subject to change without notice. S o l o – E x e c u t i v e I n s t a l l a t i o n a n d O p e r a t i o n M a n u a l P a r t N u m b e r 2 9 5 0 0 1 M a y 2 0 0 6 ( R e v 1 . 8 )
-
Page 3: Table Of Contents
T able of Contents System Components ..............2 Solo Executive Charger Base ..........3 Power Module ................. 3 System Mute Switch................ 3 Solo Personal Microphone Modules ......... 3 Charging the Batteries ..............4 Using the Microphone ..............4 Solo Executive Base Station ..........5 Installation.................. -
Page 4: System Components
Introduction Congratulations on the purchase of a Revolabs digital wireless communication system! We are pleased that you have chosen the Solo Executive Wireless Microphone System with 1.9 GHz DECT technology. The Solo Executive provides high band-width audio from multiple wireless microphones enabling reliable, un-tethered communications in audio and video conferences. -
Page 5: Solo Executive Charger Base
Solo Executive Charger Base The Charger Base is used for storage and charging the microphone when not in use. Microphones must be properly inserted into the base and seated flush for charging to occur. 1. System MUTE Switch — overrides individual Microphone mute function. -
Page 6: Charging The Batteries
Charging the Batteries How to Charge 1. Place microphone(s) into the Executive Charger Base. 2. During charging, the LED indicator turns on (RED) and remains on until charging completes. The microphones cannot be used while charging. The battery fully charges in approximately two hours, and can be “quick-charged”... -
Page 7: Solo Executive Base Station
Turning the dial towards the earpiece will increase the volume, and turning the dial towards the microphone will decrease the volume. Use the attached clothing clip to secure the earpiece wire. Solo Executive Base Station 11 12 1. Channel LED indicators: Displays 8. -
Page 8: Installation
Installation The Executive Base Station is easily installed into a standard 19” AV rack system using the supplied rack ears and standard rack screws. The equipment requires 110-220V AC, 50-60 Hz, power. Plug the power cord into an appropriate outlet and turn the circuit breaker-protected power switch on the back panel to Reset. -
Page 9: Pairing Charger Base To Base Station
Microphones in new systems come paired to the Base Station with each microphone assigned to a unique channel on the base unit. However, if a replacement microphone is ever required, it will need to be manually “paired.” If a microphone is lifted from the Charger Base and the LEDs continuously flash alternating Red, Green and Yellow, and the Base Station LEDs flash alternating Red and Green, the microphone needs to be paired to the system. -
Page 10: Using Multiple Systems
Using Multiple Systems If more than one Base Station is used in a room, each unit needs to be interconnected with a sync cable using the supplied mini-phoenix connectors. The three terminals correspond to positive +, negative − − − − , and ground . Use the screws on top of the connector to first loosen the terminal to insert an appropriate three conductor cable (3 conductors, or 2 conductors and shield), and then tighten the screw to secure. -
Page 11: System Functions
System Functions The following table shows the functions supported by the Solo Executive System: Function Base Wireless Station Microphone Action Status Status Enter Pairing Mode Press microphone MUTE button for 6 seconds, and then press the pairing button on the Base Station for 6 seconds. -
Page 12: System Specifications
Charger Base 100-240V AC, 50-60 Hz, 2 Amps Range 100’ (30 meters) approx. (no obstructions) Channels Eight per Solo Executive System Battery Lithium Polymer, up to 8 hours (talk time), 36 hours (stand by) Charge Time 3.0 hours approx. Audio Bandwidth... -
Page 13: Indicator Leds
Indicator LEDs The following tables show activities associated with the various states shown by the LEDs on the Solo Executive System: Base Station Equipment Use Microphone LED Meaning Channel LEDs Microphone in RED Solid Charging in Progress Charger Base Charging Complete... -
Page 14: Warranty
Warranty Revolabs, Inc. warrants this product to be free of manufacturing defects. Repair or replacement of any defective part or unit (at the discretion of the Seller) will be free of charge for the period of one year. Any attempt by the user to alter the equipment, or equipment damaged by negligence, accident, or Acts of God voids this warranty. -
Page 15: Safety And General Information
FCC Notice to Users Users are not permitted to make changes or modify the equipment in any way. Changes or modifications not expressly approved by Revolabs, Inc. could void the user’s authority to operate the equipment This device complies with Part 15 of the FCC Rules. Operation is subject to the following... - Page 16 NOTES...
