Note: If the „Equipment List‟ does not appear after a network scan has been performed, no devices
or network connections were found.

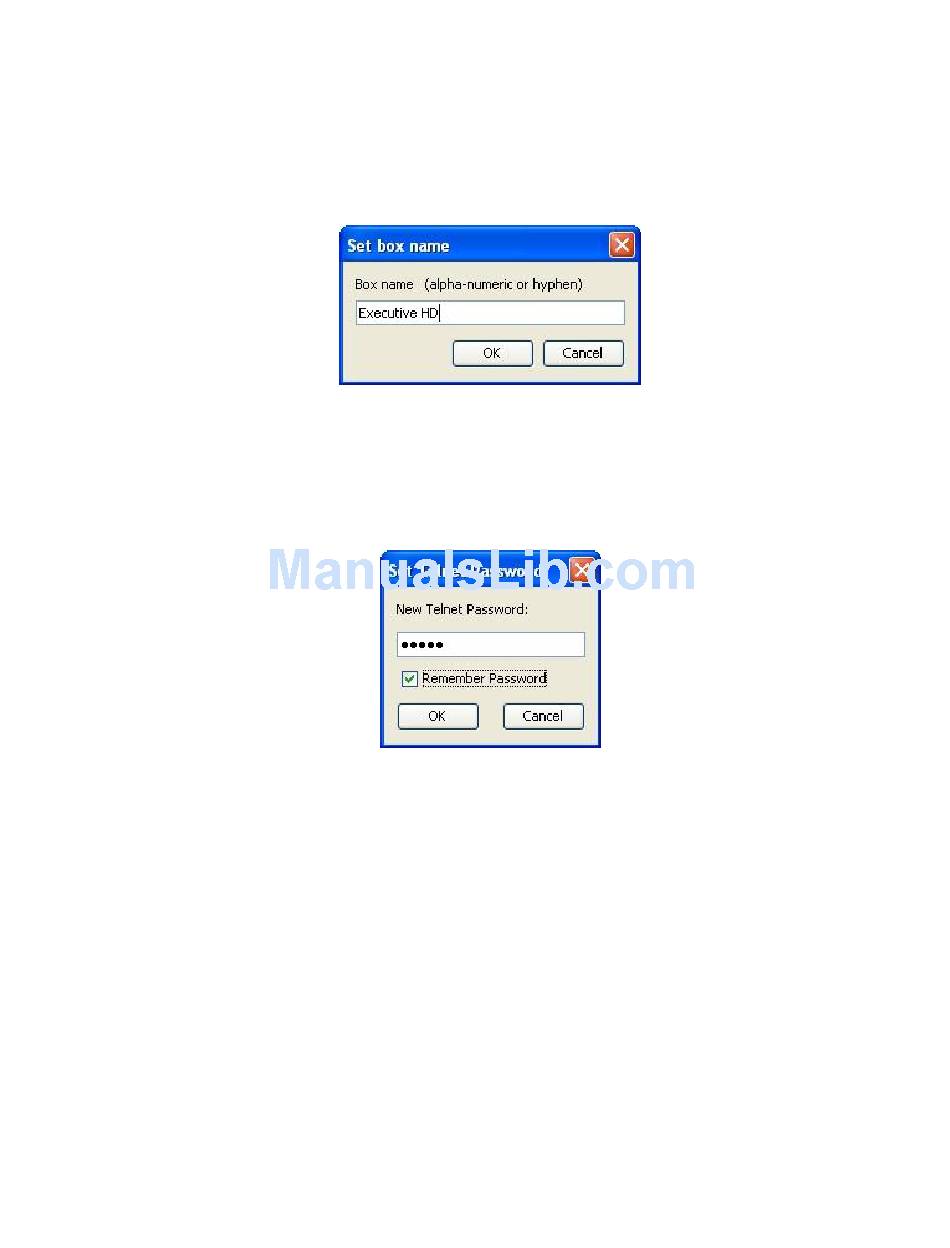

Set Box Name
A Box Name may be assigned as a Network title for each device. The Box Name can be set by selecting 'Set
Name' from the 'Box' menu. The corresponding pop-up will show the current box name which can be changed.
Set Telnet Password
A Telnet Password may be assigned for logging into a Base Station. Once a Telnet Password is assigned, it
must be entered to communicate with the Base Station over Ethernet. The Telnet Password can be set by
selecting 'Set Password' from the 'Box' menu. The corresponding pop-up will show if a password has been set
and will allow the password to be changed.
Set IP Configuration
Executive HD Base Stations are set by default to look for a DHCP server when an Ethernet
connection is present. If no DHCP server is found, the Base Station will auto-populate its own IP
address and display it on the front panel display. This automatic IP address will change every time
the Base Station is rebooted for as long as DHCP is enabled.
If no DHCP server is available, or if a fixed IP is desired, the DHCP option can be switched off and a
fixed IP can be assigned to the Base Station. The IP Configuration can be set by selecting ‗Set IP
Config' from the ‗Box' menu. The corresponding pop-up will show the current IP configuration and
allow the configuration to be changed
