Note: Using Revolabs Executive or Executive HD systems in the same area(s) without the bases
connected via the BUS can result in interference
Warning: Using the maximum number of Revolabs HD Microphones in a given will occupy
100% of the available RF bandwidth. Any other wireless device operating in the same
frequency could cause significant interference with the Revolabs HD Microphones. It is
recommended that no other DECT or DECT 6.0 product be used within operational range of
the Executive HD system(s).

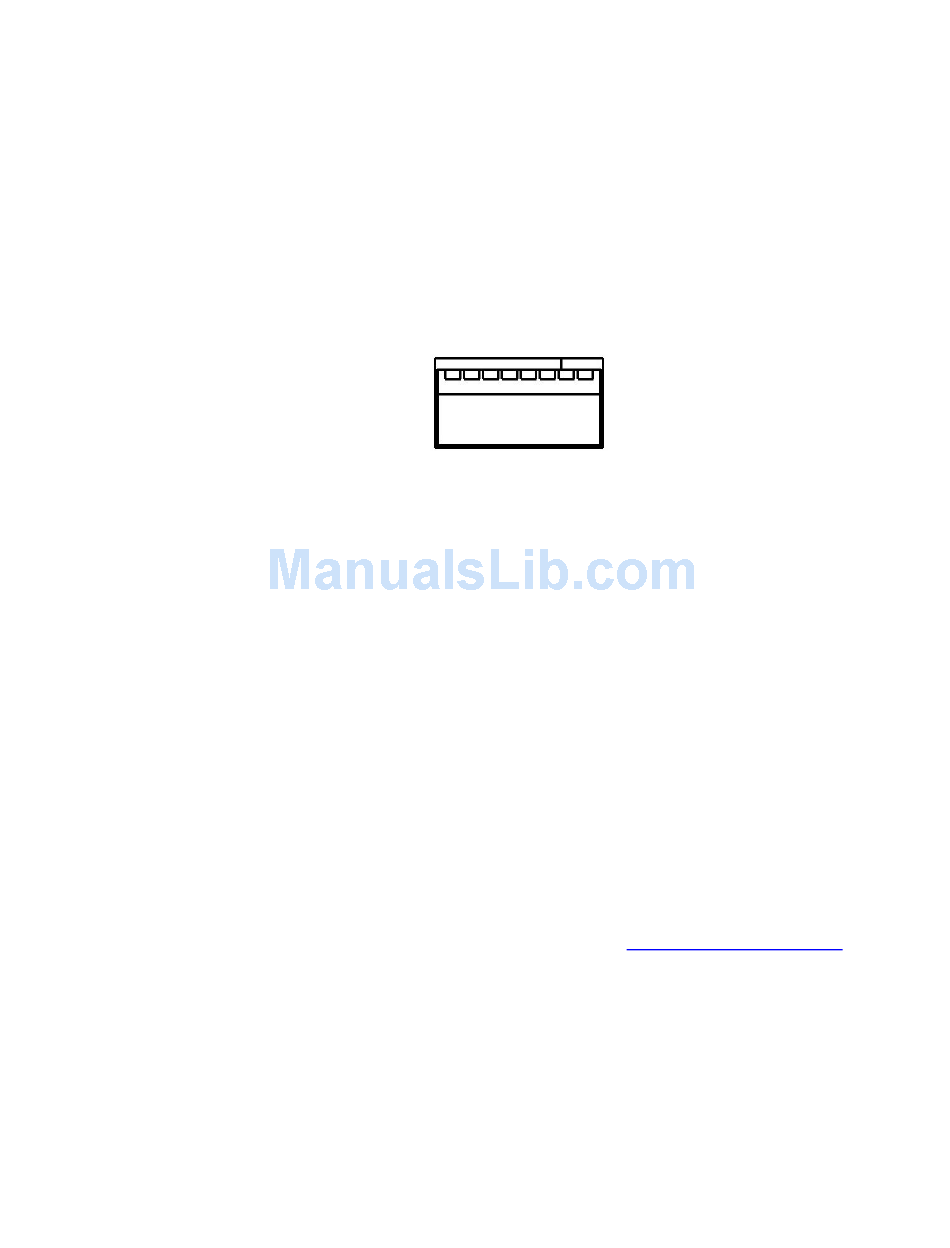

Using the Rear Panel Configuration DIP Switches

1 – Operation Mode - Primary(off)/Secondary(on)
Used when connecting several base stations together for operation in the same area.
One system must be set to ‗Primary', and all others must be set to ‗Secondary'.
2 - future use
3 - future use
4 – Audio Output Level - Line(off)/Mic(on)
This controls the output audio level on all audio output connectors. Line level audio out
(default) refers to an output signal voltage of ~0 dBu, and a Mic Level output signal level
is ~-40 dBu.
5 - future use
6 - future use
7 - future use
8 - future use

Using the Revolabs HD Control Panel Software Interface

A software program with graphical user interface is available for accessing control settings and real-
time status of Revolabs Executive HD microphone systems. A detailed description of how to use this
tool is described below.
1. Download the Revolabs Audio Control Panel software from
install onto a PC.
2. Connect the PC to the same network as the Base Station via either a Ethernet Crossover
Cable, or network switch.
3. If no DHCP server is present, set the fixed IP on the PC to the same subnet as the IP address
displayed on the Base Station front panel display.
4. Launch the Revolabs HD Control Panel program.
5. Select ‗Scan Network' from the ‗Box' menu or hit the F5 key, and the HD Control Panel will
automatically find and display any Revolabs Executive HD base stations visible on the network
(the program cannot see through firewalls, etc.).
6. Select the devices needing to be configured and click ‗OK'
off
on
1 2 3 4 5 6 7 8
- 8 -
http://www.revolabs.com and
