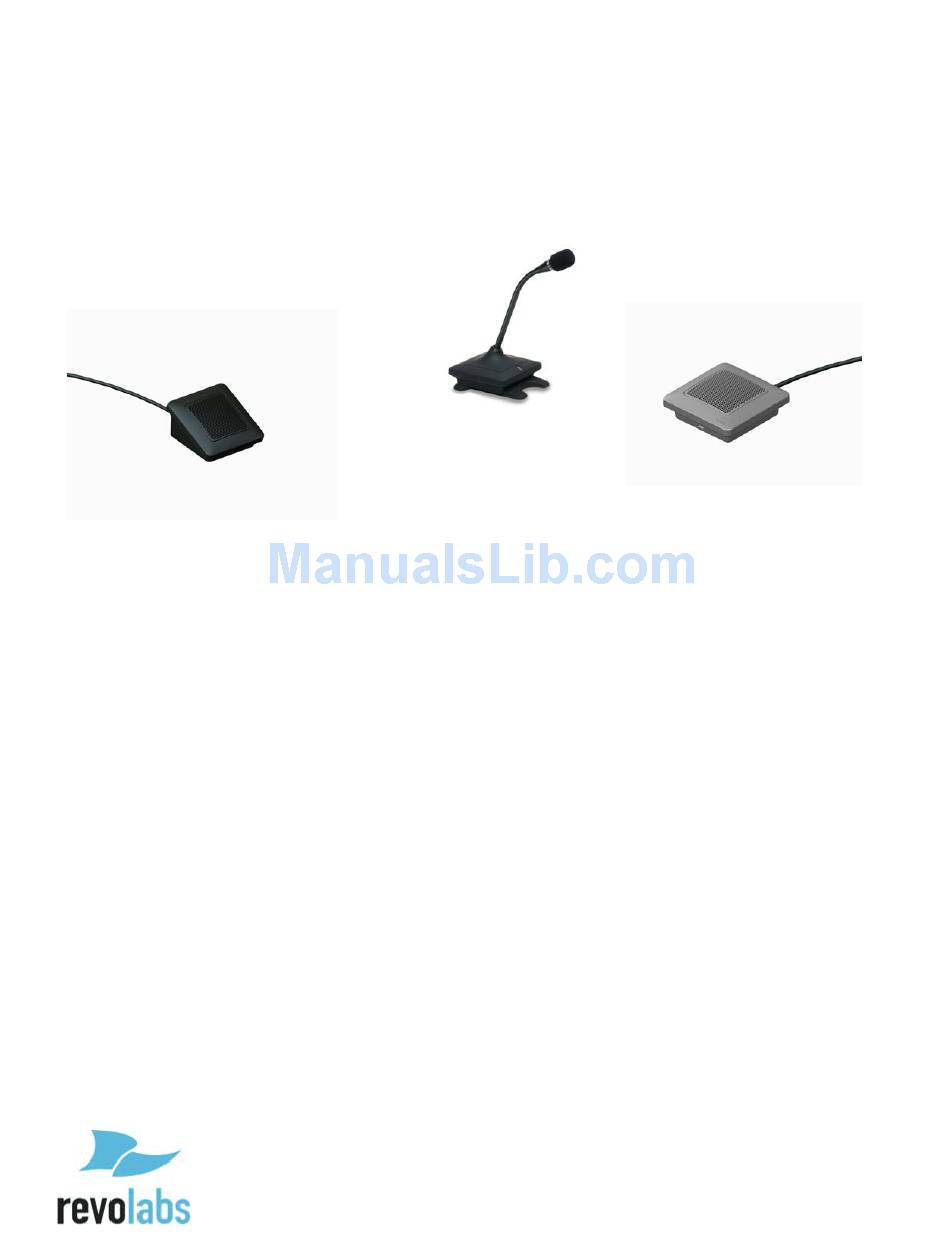

- Page 1 REVOLABS Elite ™ Wired Microphones Installation and Operation Guide Models: 01-EWM5-DR-BLK 01-EWM5-DR-WHT 01-EWM5-DR-BNI 01-EWM5-OM-BLK 01-EWM5-OM-WHT 01-EWM5-OM-BNI 01-EWM5-GN6-BLK 01-EWM5-GN6-WHT 01-EWM5-GN6-BNI 01-EWM5-GN12-BLK 01-EWM5-GN12-WHT 01-EWM5-GN12-BNI...
- Page 2 © 2015 REVOLABS, INC. All rights reserved. No part of this document may be reproduced in any form or by any means without express written permission from Revolabs, Inc. Product specifications are subject to change without notice. R e v o l a b s E i l t e W i r e d M i c r o p h o n e I n s t a l l a t i o n a n d O p e r a t i o n G u i d e 1 0 - E X E C W M 5 G U I D E - E N J u n e 2 0 1 5 ( R e v 1 .
-
Page 3: Introduction
Introduction Congratulations on your purchase of the Revolabs Elite™ Wired Microphone with Mute control and indicator light. This microphone utilizes state of the art technology providing high bandwidth audio and enabling clear, reliable audio capture for your applications. Please read this documentation carefully and follow the instructions before... -
Page 4: Safety And General Information
Safety and General Information Please read the following information to ensure safe and efficient use of your Revolabs system. FCC Notice to Users This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Industry Canada Notice To Users
Indicator, 15 cm 01-EWM5-GN12 Elite Wired Gooseneck Microphone with Mute Control and Indicator, 30 cm Any unauthorized modification of the products voids this Declaration. For a copy of the original signed declaration of conformity, please contact Revolabs at the above address. -
Page 6: Weee Notification
• Do not open the casings of any of the Elite Wired Microphones. • Do not use any other accessories than Revolabs’ originals intended for use with this product. Use of non-original accessories may result in loss of performance, damage to the product, fire, electric shock or injury. -
Page 7: Table Of Contents
Content Introduction ............................3 Safety and General Information ....................... 4 FCC Notice to Users ............................4 Industry Canada Notice to Users ......................... 5 Notice to European Customers........................5 WEEE Notification ............................. 6 Safety Warnings ............................. 6 Content ..............................7 Components ............................8 Installation .............................. -
Page 8: Components
Components Your Revolabs Elite Wired Microphone comes with a 15’ (4.5 m) cable attached to connect it to a phantom powered microphone input of a digital signal processor (DSP), or other audio devices. The packaging includes the microphone with cable and a short installation documentation. -
Page 9: Installation
Installation The Elite Wired Microphones with Mute Control and Indicator are equipped with a 15’ (4.5 meter) cable that allows integration with audio equipment. If the microphone mute is controlled locally, only the audio wires (mic positive (red), mic negative (black), and ground) need to be conneted to the audio equipment. - Page 10 External Control When external Control is desired, DIP switch One needs to be in the ON position. Switch Position Mode External Control Enabled, >2.8V in = Red LED , <2.4V in = Green External Control Enabled, >2.8V in = Green LED , <2.4V in = Red LED DIP switches 3 –...
-
Page 11: Audio Wire Connection
If more than one of the DIP switches 3 – 6 is in the ON position, unwanted and unpredictable microphone mute behavior will be observed and audio distortions will be experienced. In Push to Mute mode, the microphone send audio data, unless the button is pressed, at which time the microphone will mute. -
Page 12: Control Wire Connection
• Revolabs Elite Omni-directional Tabletop Wired Boundary Microphone • Revolabs Elite Uni-directional Tabletop Wired Boundary Microphone • Revolabs Elite 6 in (15 cm) Gooseneck Tabletop Wired Microphone • Revolabs Elite 12 in (30 cm) Gooseneck Tabletop Wired Microphone The Elite Omni-Directional Wired Tabletop Boundary... - Page 13 1. Bottom door latch — open the bottom to change the DIP switch settings. Or replace the bottom cover for permanent installations using this latch. 2. Audio wire — connect the microphone to the DSP or other audio equipment using this wire. 3.
-
Page 14: The Elite Directional Wired Tabletop Boundary Microphones
The Elite Directional Wired Tabletop Boundary Microphones The Elite Directional Wired Tabletop Boundary Microphone, shown below, is designed to provide optimum coverage when placed on a conference room table in front of one to three people. 1. Bottom door latch — replace the bottom cover for permanent installations using this latch. -
Page 15: The Elite Gooseneck Tabletop Microphones
Make sure that the microphone is always placed standing on its rubber feet atop a flat surface. Warranty Revolabs, Inc. warrants this product to be free of manufacturing defects. Repair or replacement of any defective part or unit (at the discretion of the... -
Page 16: Technical Support
Seller) will be free of charge for the period defined in the Revolabs Professional Products Limited Warranty. Any attempt by the user to alter the equipment, or equipment damaged by negligence, accident, or Acts of God voids this warranty. The Seller shall not be liable for any consequential damage resulting from the malfunction of this product. - Page 17 Local mute attenuation 100dB minimum Directional Tabletop Frequency Response 160Hz – 16,000 Hz 68 dB Max SPL @1kHz, 1% THD 113 dBSPL Dynamic Range 87 dB Sensitivity @1kHz -36.2dBV Local mute attenuation 100dB minimum Goseneck Microphones Frequency Response 160Hz – 16,000 Hz 68 dB Max SPL @1kHz, 1% THD 113 dBSPL...
- Page 18 Microphone Polar Patterns Elite Omni-Directional Wired Tabletop Microphone : Elite Directional Wired Tabletop Microphone:...
- Page 19 Elite Gooseneck 6 or 12 inch (15 cm or 30 cm, respectively) Tabletop Microphone:...
- Page 20 R e v o l a b s E i l t e W i r e d M i c r o p h o n e I n s t a l l a t i o n a n d O p e r a t i o n G u i d e 1 0 - E X E C W M 5 G U I D E - E N J u n e 2 0 1 5 ( R e v 1 .
