Microphone Type
This provides the current type for the microphone that is active on each channel.
Microphone Status
This provides the current mute status for the microphone on each channel.
Microphone Version
This provides the current firmware version for the microphone that is active on each channel.
Microphone Battery
This provides the current battery level for the microphone that is active on each channel.

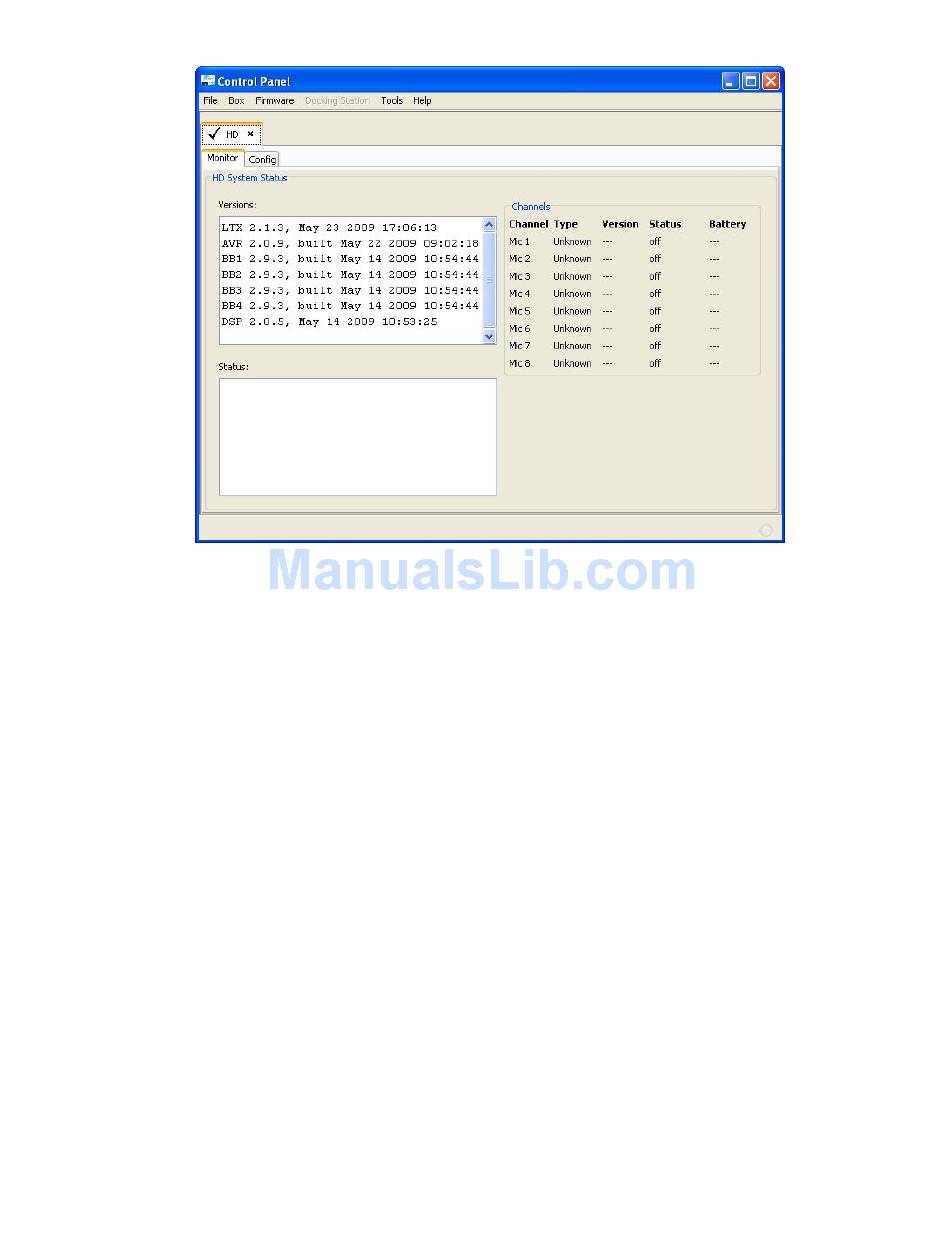

Versions
This window provides all the current firmware versions found in the Base Station.
Status
This window provides any activity status between the HD Control Panel and either the Base Station,
or the Docking Station.
Using the Serial Control Processor (RS-232 or IP)
The Serial Control Processor allows the use of third party control system or DSP to monitor and
control the Executive HD Base Station and Microphones. The Executive HD Base Station must be
configured for the correct ―Serial Control Processor‖ using the Revolabs Audio Control Panel
software.
- 13 -
