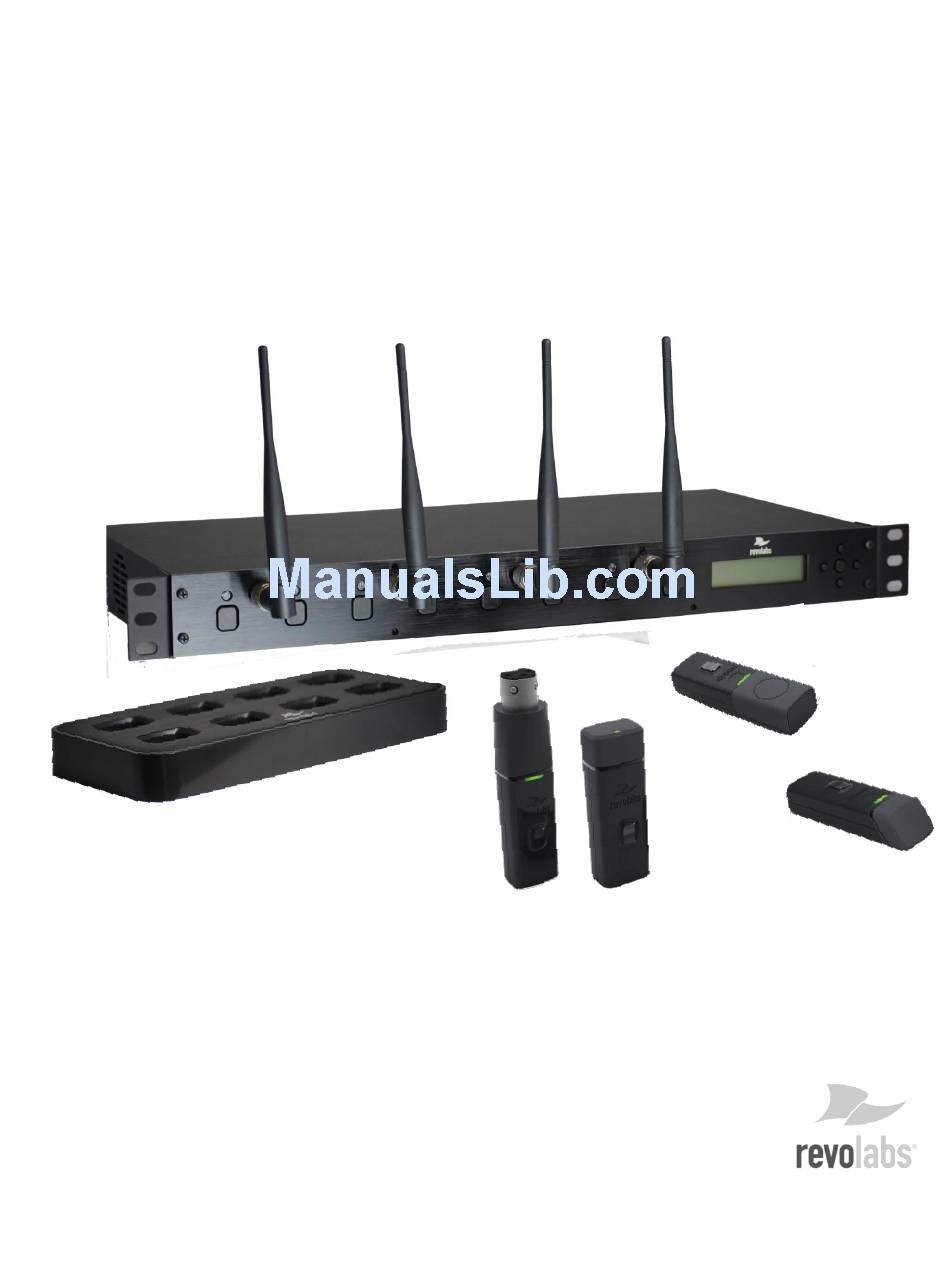

REVOLABS EXECUTIVE HD™
Wireless Microphone System
Models: 01-HDEXEC, 01-HDEXEC4, 03-HDEXECEU and 03-HDEXEC4EU
Installation and Operation Guide
Revolabs, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 01-HDEXEC and is the answer not in the manual?

Questions and answers

Related Manuals for Revolabs 01-HDEXEC

Summary of Contents for Revolabs 01-HDEXEC

  • Page 1 REVOLABS EXECUTIVE HD™ Wireless Microphone System Models: 01-HDEXEC, 01-HDEXEC4, 03-HDEXECEU and 03-HDEXEC4EU Installation and Operation Guide Revolabs, Inc.
  • Page 2 © 2009 REVOLABS, INC. All rights reserved. No part of this document may be reproduced in any form or by any means without express written permission from Revolabs, Inc. Product specifications are subject to change without notice. R e v o l a b s E x e c u t i v e H D ™ M a n u a l 0 1 - H D E X E C M A N - P A P - 1 1 M a y 2 0 0 9 ( R e v 1 .

  • Page 3: Table Of Contents

    Contents Safety and General Information ........................1 Introduction..............................3 System Components ..........................3 Installing the Revolabs Executive HD ™ Base Station ................. 4 Controls and Connections: ........................5 Configuring the Executive HD Base Station ....................6 Using Multiple Revolabs Executive HD Systems Together ..............

  • Page 4: Safety And General Information

    Safety and General Information Please read the following information to ensure safe and efficient use of your Revolabs system. FCC User Information FCC Registration Number: 0014898290 FCC ID: T5V01HDEXEC Revolabs Executive HD™ Base Station FCC ID: T5V01HDEXEMIC Revolabs Executive HD ™ Microphone FCC Notice to Users Users are not permitted to make changes or modify the equipment in any way.

  • Page 5: Export Law Assurances

    Always obey the laws and regulations on the use of these products. 01-HDEXEC and 01-HDEXEC4 (4 & 8 channel systems respectively) North America UPCS Usage Restriction Due to the UPCS frequencies used, this product is licensed for operation only in the United States of America and Canada.

  • Page 6: Introduction

    Introduction Congratulations on your purchase of a Revolabs digital wireless microphone system! This system utilizes 1.9 GHz DECT technology, and high band-width audio from multiple wireless microphones, enabling clear, reliable, un-tethered communications in recording, audio/video conferencing, speech recognition, VOIP communications, sound re- enforcement as well as many other environments requiring clear audio capture.

  • Page 7: Installing The Revolabs Executive Hd ™ Base Station

    Installing the Revolabs Executive HD ™ Base Station The Revolabs Executive HD ™ Base Station, shown below in front and rear panel views, manages wireless audio signal processing, pairing, and muting between the Revolabs microphones and the Base Station.

  • Page 8: Controls And Connections

    Configuration DIP Switches (see Section Using Configuration DIP switches) Mini-Phoenix Connectors: Balanced Audio in and out connections (4 or 8 channels, in and out). The Revolabs Executive HD ™ Base Station is designed to be installed into a standard 19‖ AV rack system using the attached rack ears.

  • Page 9: Configuring The Executive Hd Tm Base Station

    Configuring the Executive HD Base Station Each Revolabs Executive HDTM Base Station must be configured properly prior to use. Accurate configuration is dependent on several variables such as: 1. How many Executive HD systems are being used together in proximity? 2.

  • Page 10: Using Multiple Revolabs Executive Hd

    Using Multiple Revolabs Executive HD Systems Together If more than one Revolabs Executive HD ™ Base Station is used in an area, each unit needs to be interconnected with a synchronization (BUS) cable using a standard 3.5mm mini-Phoenix connector and any 24AWG or better shielded cable. In addition, DIP switch #1 needs to be adjusted on one or more of the units to represent the ‗Primary‘...

  • Page 11: Using The Rear Panel Configuration Dip Switches

    Using the Revolabs HD Control Panel Software Interface A software program with graphical user interface is available for accessing control settings and real- time status of Revolabs Executive HD microphone systems. A detailed description of how to use this tool is described below.
  • Page 12 Configuration Settings The Revolabs HD Control Panel controls the Executive HD Base Station configuration settings. Most of the configuration settings can only be controlled from the HD Control Panel. However, some of the configuration settings can also be controlled from the Base Station front panel display. All configuration settings are located either in the ‗Config‘...
  • Page 13 Note: If the „Equipment List‟ does not appear after a network scan has been performed, no devices or network connections were found. Set Box Name A Box Name may be assigned as a Network title for each device. The Box Name can be set by selecting ‘Set Name’...
  • Page 14 Executive HD Systems are field upgradable for the firmware portion of the Base Station and Microphones. The firmware must be sent to the Base station and Microphones separately using the HD Control Panel program. See Updating Revolabs HD Firmware for more information. Serial Control Processor The Serial Control Processor allows the use of third party control system or DSP to monitor and control the Executive HD Base Station and Microphones.
  • Page 15 The transmit power of the Base Station can be adjusted to help reduce the operational radius of a Executive HD System in order to prevent interference from other Revolabs Products, or from other devices operating in the same frequency. The options for transmit power are ‗0-7‘ with ‗0‘...

  • Page 16: Using The Serial Control Processor (Rs-232 Or Ip)

    The Serial Control Processor allows the use of third party control system or DSP to monitor and control the Executive HD Base Station and Microphones. The Executive HD Base Station must be configured for the correct ―Serial Control Processor‖ using the Revolabs Audio Control Panel software.
  • Page 17 Using the Executive HD Base Station with a Control System The Executive HD Base Station is capable of being monitored and controlled via any serial capable control system. The only logic communication that takes place between multiple Base Stations, via the BUS cable, is ―Master Mute‖...
  • Page 18 String Table: Argument Command Channel# Value mute 1-8 = ch 1-8 0 = off A = Master Mute 1 = on mute 1-8 = ch 1-8 A = Master Mute batt 1-8 = ch 1-8 mute 1-8 = ch 1-8 0 = off A = Master Mute 1 = self mute on (TT Master Mute Mode)
  • Page 19 Note: All return strings will automatically populate when the corresponding change to the microphone takes place. DB9 Pin-out: Pin 2 = Rx Pin 3 = Tx Pin 5 = GND Pin 7 = RTS Pin 8 = CTS Using the Executive HD Base Station with a DSP The Executive HD system is designed to control the mutes of a DSP directly in the event that no control system is present.
  • Page 20 Each Base station will control the mutes of a ―level block‖, within the DSP programming, using that block‘s instance ID tag. The tags are as follows: Channels 1-8 MUTE1 Channels 9-16 MUTE2 Channels 17-24 MUTE3 Channels 25-32 MUTE4 So for example, if you set the ‗Audio channels‘ range for the microphones to 1-8, in the Control Panel, then the Base Station will use the instance ID tag of ―MUTE1‖, and control the first 8 mutes in that fader block.
  • Page 21 Note: Instance ID tags are case sensitive and must be entered correctly in order to function properly. A “level block” must be used as the method of muting. Polycom Soundstructure When using the Base Station along with a Polycom Soundstructure DSP, you must select the corresponding DSP product line from the ―External Control Processor‖...

  • Page 22: Using The Base Station Front Panel Display

    The LCD and menu buttons are designed to allow the installer of the system to access certain configuration settings, and status windows directly from the front panel rather than through the ‗Revolabs HD Control Panel‘ program via an Ethernet to a PC. Navigation up...

  • Page 23: Revolabs Hd Microphones And Hd Microphone Adapters

    Using the HD Wearable Wireless Microphones The Revolabs HD Wearable Microphones, shown in the following figure, are paired to the Base Station and can be worn on the user‘s shirt pocket, lapel or on a lanyard. They provide high quality full duplex audio between each user and the conferencing or audio system.
  • Page 24 To use the HD Wearable Microphone: 1. Remove the microphone from the Charger Base. 2. Attach the microphone to clothing or to a lanyard, position microphone just above the sternum or breastbone, within 6 - 12 inches (15 – 30cm) from the mouth is recommended. Make sure microphone is attached securely with the microphone port pointed up toward mouth.

  • Page 25: Using The Hd Omni-Directional Tabletop Wireless Boundary Microphones

    360 º pickup pattern Using the HD Omni-Directional Tabletop Wireless Boundary Microphones The HD Omni-directional TableTop Wireless Boundary Microphones enable multiple conference attendees to use a single microphone. 1. LED display — visual status for mute, un-mute, and pairing. 2. Mute button — press to mute, un-mute and pair microphone. 3.

  • Page 26: Using The Hd Uni-Directional Tabletop Wireless Boundary Microphones

    4. To turn microphone off, return the microphone unit to the Charger Base or press and hold the Mute button for ~10 seconds until the LED turns solid RED and release button. If the microphones are placed too far from the Base Station (~100 feet or 30 meters) the connection will be dropped (LED flashes all colors) and the microphone will mute.

  • Page 27: Using The Hd Xlr Microphone Wireless Adapter

    3. With the microphone in position, un-mute the microphone by pressing and releasing the Mute button (confirm by viewing flashing GREEN LED). 4. To turn microphone off, return the microphone unit to the Charger Base or press and hold the Mute button for ~10 seconds until the LED turns solid RED and release button.

  • Page 28: Pairing Wireless Microphones To Base Station

    1. Audio Out port — accepts the 2.5mm plug for the earpiece. 2. Power/Charging Port — docks to all Solo Charger Bases. 3. Mute button — press to mute, un-mute and pair microphone. 4. LED display — visual status for mute, un-mute, and pairing. 5.

  • Page 29: Revolabs Executive Hd Docking Station

    GREEN flash, then switching to flashing RED on both the microphone and the Base Station (muted audio). Pairing is now complete. Revolabs Executive HD Docking Station When Microphones are not in use, they should be properly inserted into the Executive HD Charger base.

  • Page 30: Power Module

    Important: The Lithium Polymer rechargeable batteries that power the microphones are not user serviceable. Please contact Revolabs (www.revolabs.com) or your AV service provider for replacement instructions and to assure the proper disposal method is used. Warning: Never dispose of batteries in a fire because they may explode.

  • Page 31: Updating The Revolabs Hd Tm Firmware

    5. Select OK and watch the firmware process either on the Base Station front panel display or in the ‗monitor‘ tab in the Revolabs HD Control Panel program. The HD Control Panel will notify you when the process is complete.
  • Page 32 Updating the HD Microphones The HD Microphone firmware can be changed using the Revolabs HD Control Panel program and the HD Docking Station. Communication to the Docking Station is done over a mini-USB connection. 1. Connect the Mini-USB cable from the back of the docking station to your PC.

  • Page 33: Revolabs Executive Hd ™ Indicator Leds

    Revolabs Executive HD ™ Indicator LEDs The following tables show activities associated with the various states shown by the LEDs: Equipment Use Microphone LED Base Station Meaning Channel LEDs Microphone in Charger Solid RED Charging in Progress Base Solid GREEN...

  • Page 34: Troubleshooting

    Troubleshooting - 31 -...

  • Page 35: Warranty

    Warranty Revolabs, Inc. warrants this product to be free of manufacturing defects. Repair or replacement of any defective part or unit (at the discretion of the Seller) will be free of charge for the period of one year. Any attempt by the user to alter the equipment, or equipment damaged by negligence, accident, or Acts of God voids this warranty.

  • Page 36: Specifications

    XLR Adapter: 0.9‖ (2.3 cm) x 0.8‖ (2.0 cm) x 4.0‖ (10.2 cm), 0.05 lb (0.02 kg) Shipping Weight 12.0 lbs (5.45 kg) Radio Frequency: 01-HDEXEC 1.92 to 1.93 GHz (UPCS North America) (and other 01-HD* products) 03-HDEXECEU 1.88 to 1.90 GHz (DECT EU)

  • Page 37: Index

    Included Accessories: 1 Earpiece with inline volume control and 1 Lanyard per Wearable Microphone Environmental Requirements: Temperature 40° to 105° F (5° to 40° C) operating Humidity 20% to 85% Index . Mini-Phoenix Connectors, 5 Earpiece Jack, 15 . On/Off Switch, 5 LED Display, 15 Adjusting the Volume, 16 Mute Button, 15...
  • Page 38 Note: Microphones must be fully charged and paired to the Charger Base prior to first use. R e v o l a b s E x e c u t i v e H D ™ M a n u a l 0 1 - E X E M A N - P A P - 1 1 M a y 2 0 0 9 ( R e v 1 .
