Configuration Settings

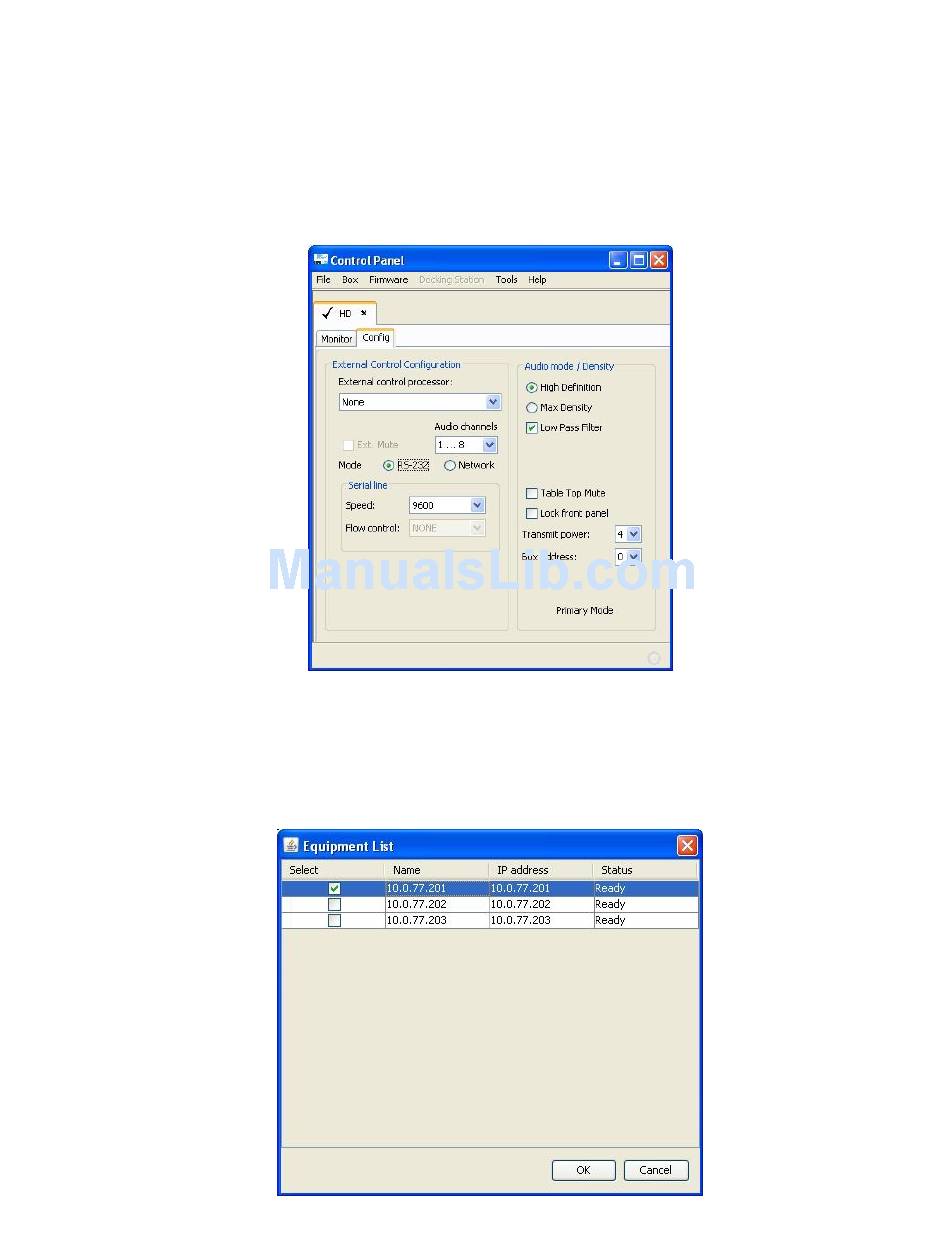

The Revolabs HD Control Panel controls the Executive HD Base Station configuration settings. Most
of the configuration settings can only be controlled from the HD Control Panel. However, some of the
configuration settings can also be controlled from the Base Station front panel display. All
configuration settings are located either in the ‗Config' tab of the device window or on the HD Control
Panel menus.
Scan Network
The ‗Scan Network' option of the ‗Box' menu will search the connected Ethernet network for all
connected HD Base Stations. A pop-up ‗Equipment List' will show all discovered devices and allow
the connection to the selected Base Station(s). Once connected to a Base Station, the HD Control
Panel will open a device tab for each Base Station.
- 9 -
