Note: All return strings will automatically populate when the corresponding change to the
microphone takes place.

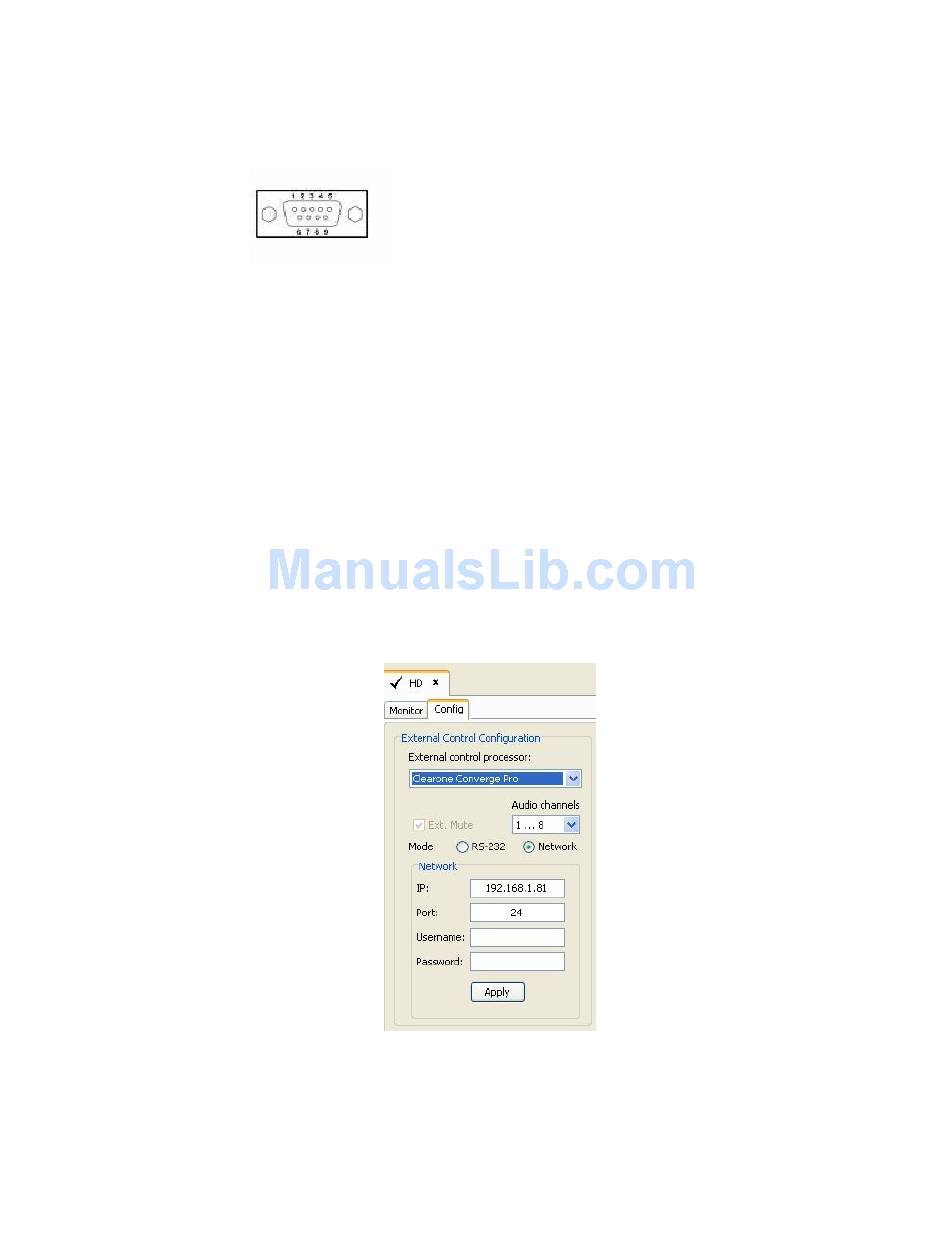

DB9 Pin-out:
Pin 2 = Rx
Pin 3 = Tx
Pin 5 = GND
Pin 7 = RTS
Pin 8 = CTS
Using the Executive HD Base Station with a DSP
The Executive HD system is designed to control the mutes of a DSP directly in the event that no
control system is present. The Base Station must be configured for the correct ―Serial Control
Processor‖, using the Executive HD Control Panel software, in order to send the mute commands to
the DSP. In addition, each DSP model must be configured differently to receive the mute commands.
Clearone Converge & XAP
When using the Base Station along with a Clearone DSP, you must select the corresponding DSP
product line from the ―Serial Control Processor‖ menu in the base station using the Executive HD
Control Panel Software. You must also set the RS-232 or Network settings of the Base Station to
match the communication settings of the Clearone DSP. The Base Station will only control the mutes
of the DSP it is configured to communicate to. A 4 channel Base Station will control microphone
channels 1-4 of the DSP, and an 8 channel Base Station will control microphone channels 1-8 of the
DSP. There is no configuration that needs to take place in the Clearone DSP.
Biamp Audia & Nexia
When using the Base Station along with a Biamp DSP, you must select the corresponding DSP
product line from the ―External Control Processor‖ menu in the base station using the Executive HD
Control Panel Software. You must also set the RS-232 or Network settings of the Base Station to
match the communication settings of the Biamp DSP as well as select the range of microphones that
the Base Station is to simulate.(i.e. 1-8, 9-16, etc.)
- 16 -
