Using the HD Omni-Directional Tabletop Wireless Boundary Microphones

The HD Omni-directional TableTop Wireless Boundary Microphones enable multiple conference
attendees to use a single microphone.

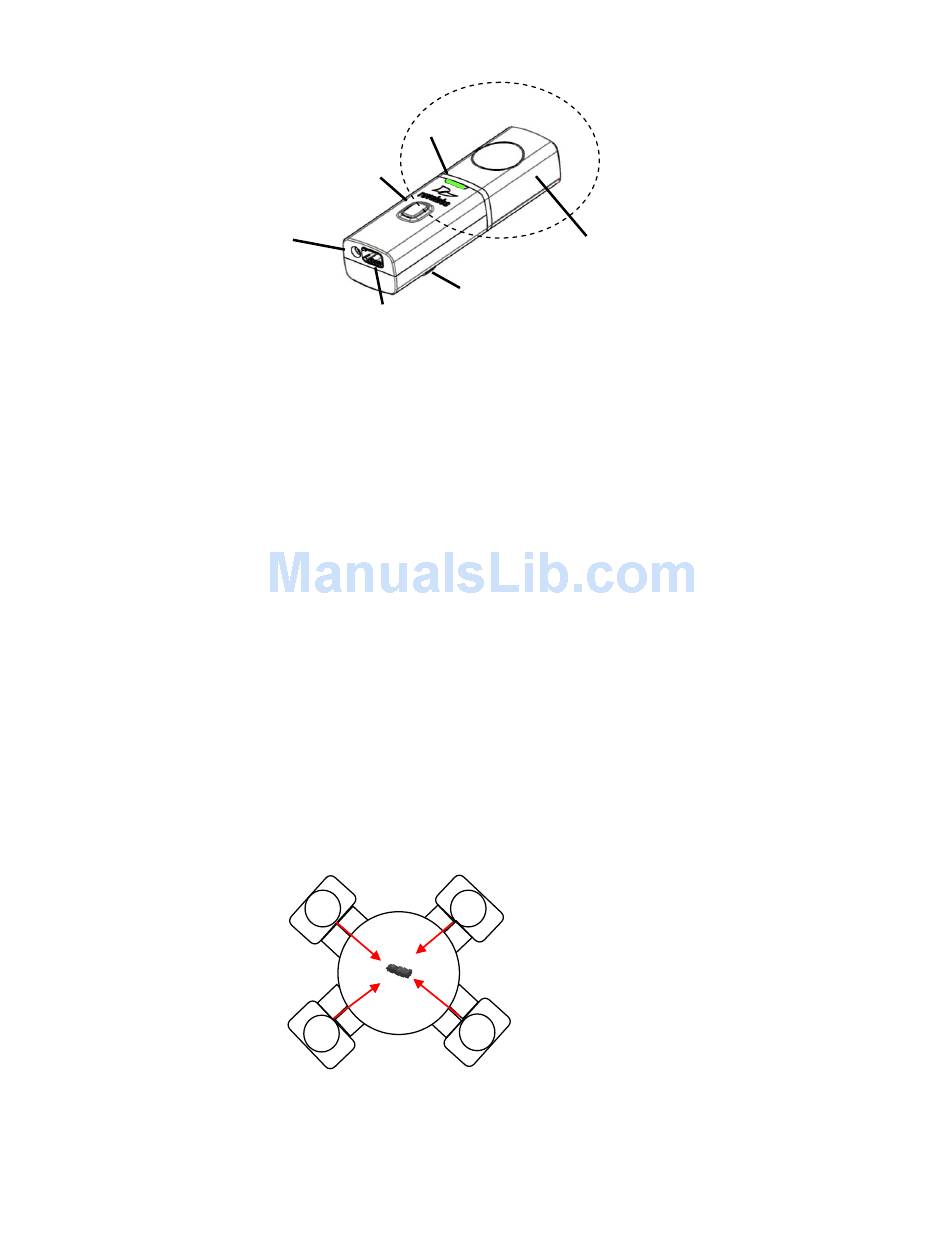

1. LED display — visual status for mute, un-mute, and pairing.
2. Mute button — press to mute, un-mute and pair microphone.
3. Audio jack — accepts a 2.5mm plug.
4. Charging port — docks to Solo Charger Bases.
5. Rubber feet — non-slip, vibration absorbing pads.
6. Acoustic Cover — protects delicate microphone element (non-removable).
To use the HD Omni TableTop Microphone:
1. Remove the microphone from the Charger Base to turn on and automatically mute the mic
(indicated by a flashing RED LED) during placement on the conference table.
2. Omni TableTop microphones can be centered on the table within 2 to 5 feet (0.6 to 1.5m) away
from people speaking and do not need to be pointing any particular direction because they pickup
sound from all directions. It is always better to be as close to the person speaking as possible,
but avoid placing the microphone where it might be blocked by equipment or meeting paperwork.
Also do not place microphones too close to an audio or video conference speaker to avoid
echoes.
3. With the microphone in position on the table, un-mute the microphone by pressing and releasing
the Mute button (confirm by viewing flashing GREEN LED).
1
2
3
4
360 º pickup
pattern
6
5
