Printer parts

Front ................................................................................................................................................................ 639

Side ................................................................................................................................................................. 641
Top Cover (Inside) .......................................................................................................................................... 642
Roll Cover (Inside) .......................................................................................................................................... 643
Carriage .......................................................................................................................................................... 644
Ink Tank Cover (Inside) ................................................................................................................................... 644

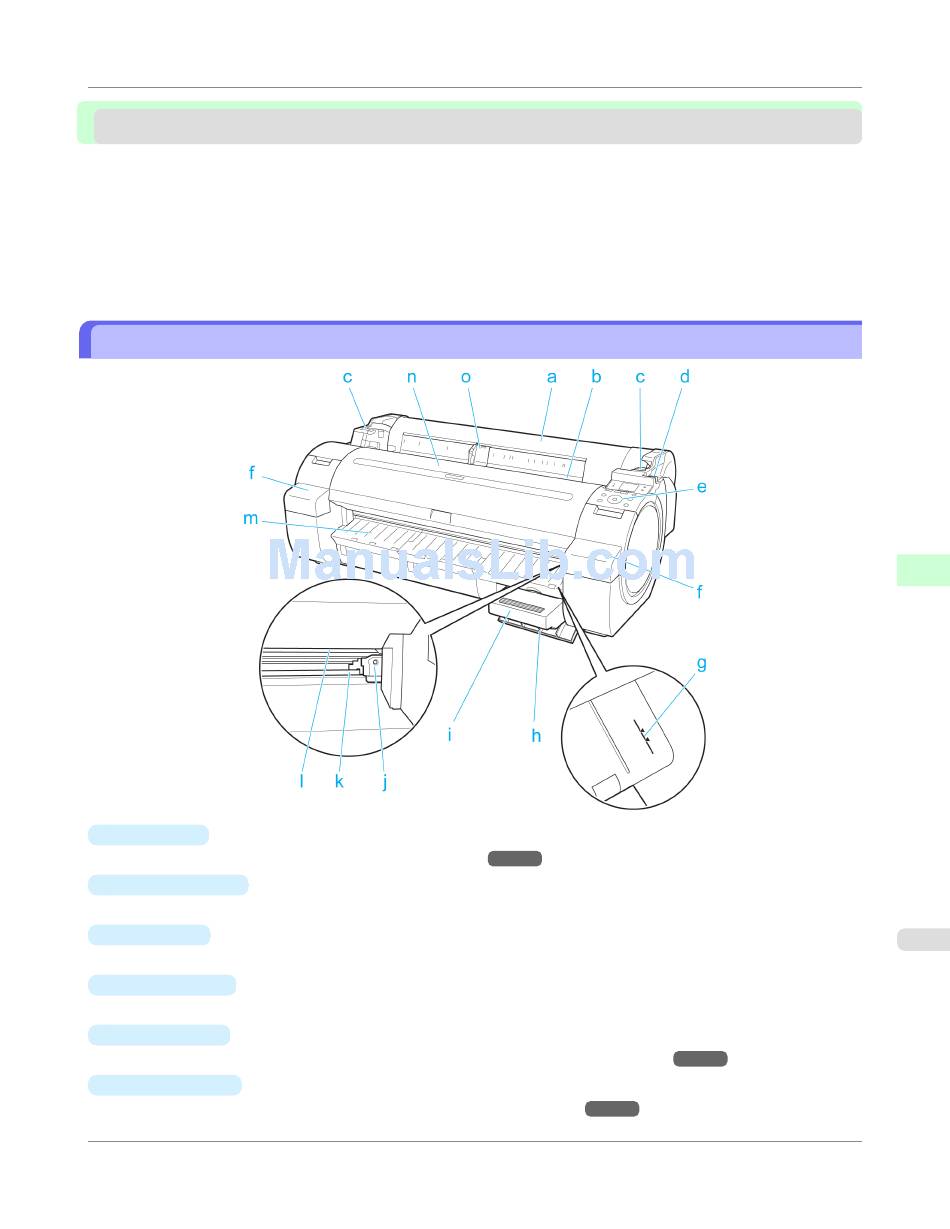

Front
a. Roll Cover
Open this cover to load rolls. (See "Roll Cover (Inside).")
b. Paper Feed Slot
When loading paper, insert it here.
c. Roll Ledge
When loading rolls, rest the Roll Holder here before loading it in the Roll Holder Slot.
d. Release Lever
When releasing the Paper Retainer, push this lever back.
e. Control Panel
Use this panel to operate the printer and check the printer status. (See "Control Panel.")
f. Ink Tank Cover
Open this cover to replace an Ink Tank. (See "Ink Tank Cover (Inside).")
iPF650
→P.643
→P.644
Printer Parts > Printer parts >
→P.650
Front
7
639
