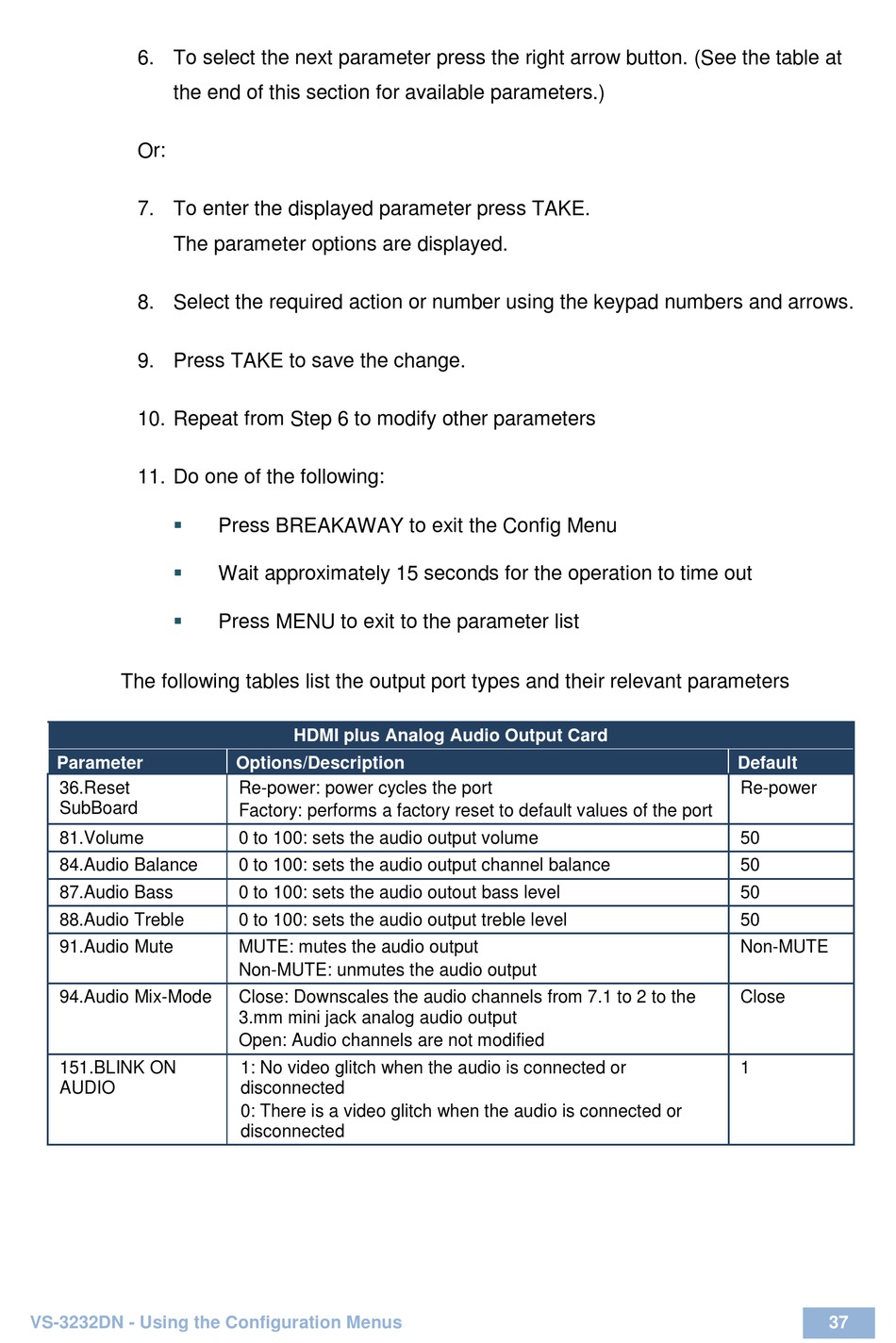

6. To select the next parameter press the right arrow button. (See the table at
the end of this section for available parameters.)
Or:
7. To enter the displayed parameter press TAKE.
The parameter options are displayed.
8. Select the required action or number using the keypad numbers and arrows.
9. Press TAKE to save the change.
10. Repeat from Step 6 to modify other parameters
11. Do one of the following:
The following tables list the output port types and their relevant parameters
Parameter
36.Reset
SubBoard
81.Volume
84.Audio Balance
87.Audio Bass
88.Audio Treble
91.Audio Mute
94.Audio Mix-Mode
151.BLINK ON
AUDIO
VS-3232DN - Using the Configuration Menus
Press BREAKAWAY to exit the Config Menu
Wait approximately 15 seconds for the operation to time out
Press MENU to exit to the parameter list
HDMI plus Analog Audio Output Card
Options/Description
Re-power: power cycles the port
Factory: performs a factory reset to default values of the port
0 to 100: sets the audio output volume
0 to 100: sets the audio output channel balance
0 to 100: sets the audio outout bass level
0 to 100: sets the audio output treble level
MUTE: mutes the audio output
Non-MUTE: unmutes the audio output
Close: Downscales the audio channels from 7.1 to 2 to the
3.mm mini jack analog audio output
Open: Audio channels are not modified
1: No video glitch when the audio is connected or
disconnected
0: There is a video glitch when the audio is connected or
disconnected
Default
Re-power
50
50
50
50
Non-MUTE
Close
1
37
