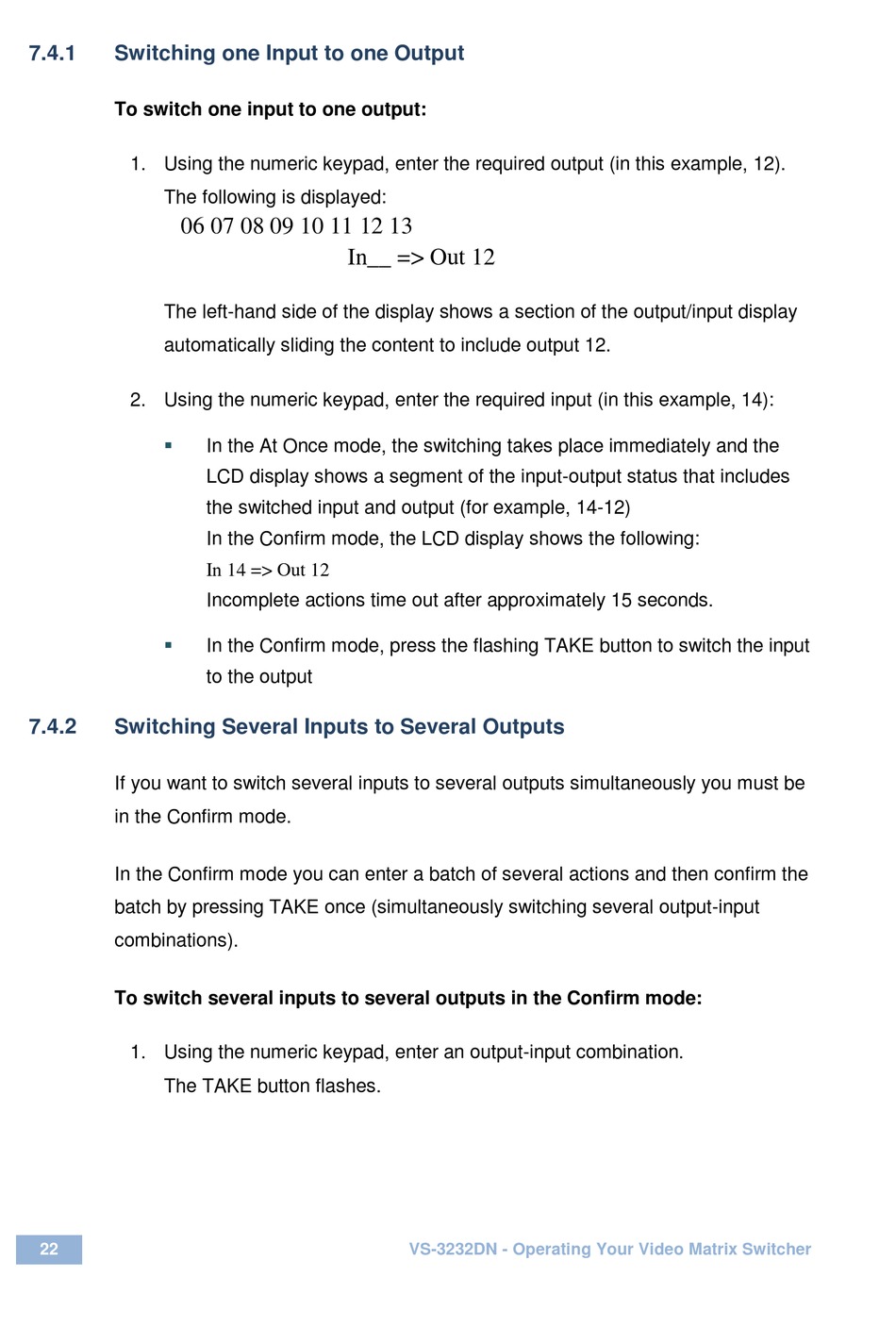

Kramer VS-3232DN User Manual page 26

7.4.1 Switching one Input to one Output
To switch one input to one output:
1. Using the numeric keypad, enter the required output (in this example, 12).
The following is displayed:
06 07 08 09 10 11 12 13
The left-hand side of the display shows a section of the output/input display
automatically sliding the content to include output 12.
2. Using the numeric keypad, enter the required input (in this example, 14):


7.4.2 Switching Several Inputs to Several Outputs
If you want to switch several inputs to several outputs simultaneously you must be
in the Confirm mode.
In the Confirm mode you can enter a batch of several actions and then confirm the
batch by pressing TAKE once (simultaneously switching several output-input
combinations).
To switch several inputs to several outputs in the Confirm mode:
1. Using the numeric keypad, enter an output-input combination.
The TAKE button flashes.
22
In__ => Out 12
In the At Once mode, the switching takes place immediately and the
LCD display shows a segment of the input-output status that includes
the switched input and output (for example, 14-12)
In the Confirm mode, the LCD display shows the following:
In 14 => Out 12
Incomplete actions time out after approximately 15 seconds.
In the Confirm mode, press the flashing TAKE button to switch the input
to the output
VS-3232DN - Operating Your Video Matrix Switcher
