3. Do one of the following:




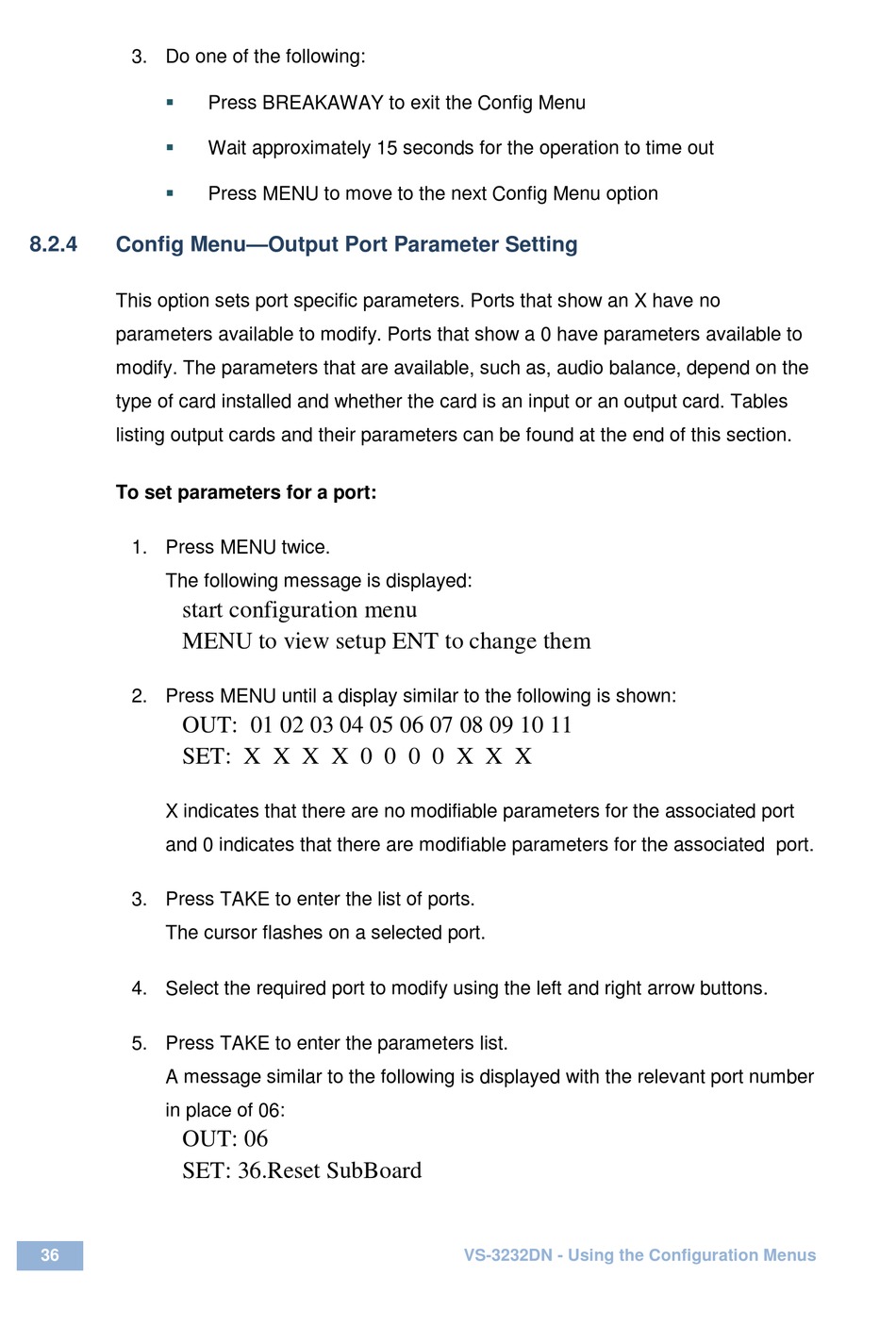

8.2.4 Config Menu—Output Port Parameter Setting
This option sets port specific parameters. Ports that show an X have no
parameters available to modify. Ports that show a 0 have parameters available to
modify. The parameters that are available, such as, audio balance, depend on the
type of card installed and whether the card is an input or an output card. Tables
listing output cards and their parameters can be found at the end of this section.
To set parameters for a port:
1. Press MENU twice.
The following message is displayed:
start configuration menu
MENU to view setup ENT to change them
2. Press MENU until a display similar to the following is shown:
OUT: 01 02 03 04 05 06 07 08 09 10 11
SET: X X X X 0 0 0 0 X X X
X indicates that there are no modifiable parameters for the associated port
and 0 indicates that there are modifiable parameters for the associated port.
3. Press TAKE to enter the list of ports.
The cursor flashes on a selected port.
4. Select the required port to modify using the left and right arrow buttons.
5. Press TAKE to enter the parameters list.
A message similar to the following is displayed with the relevant port number
in place of 06:
OUT: 06
SET: 36.Reset SubBoard
36
Press BREAKAWAY to exit the Config Menu
Wait approximately 15 seconds for the operation to time out
Press MENU to move to the next Config Menu option
VS-3232DN - Using the Configuration Menus
