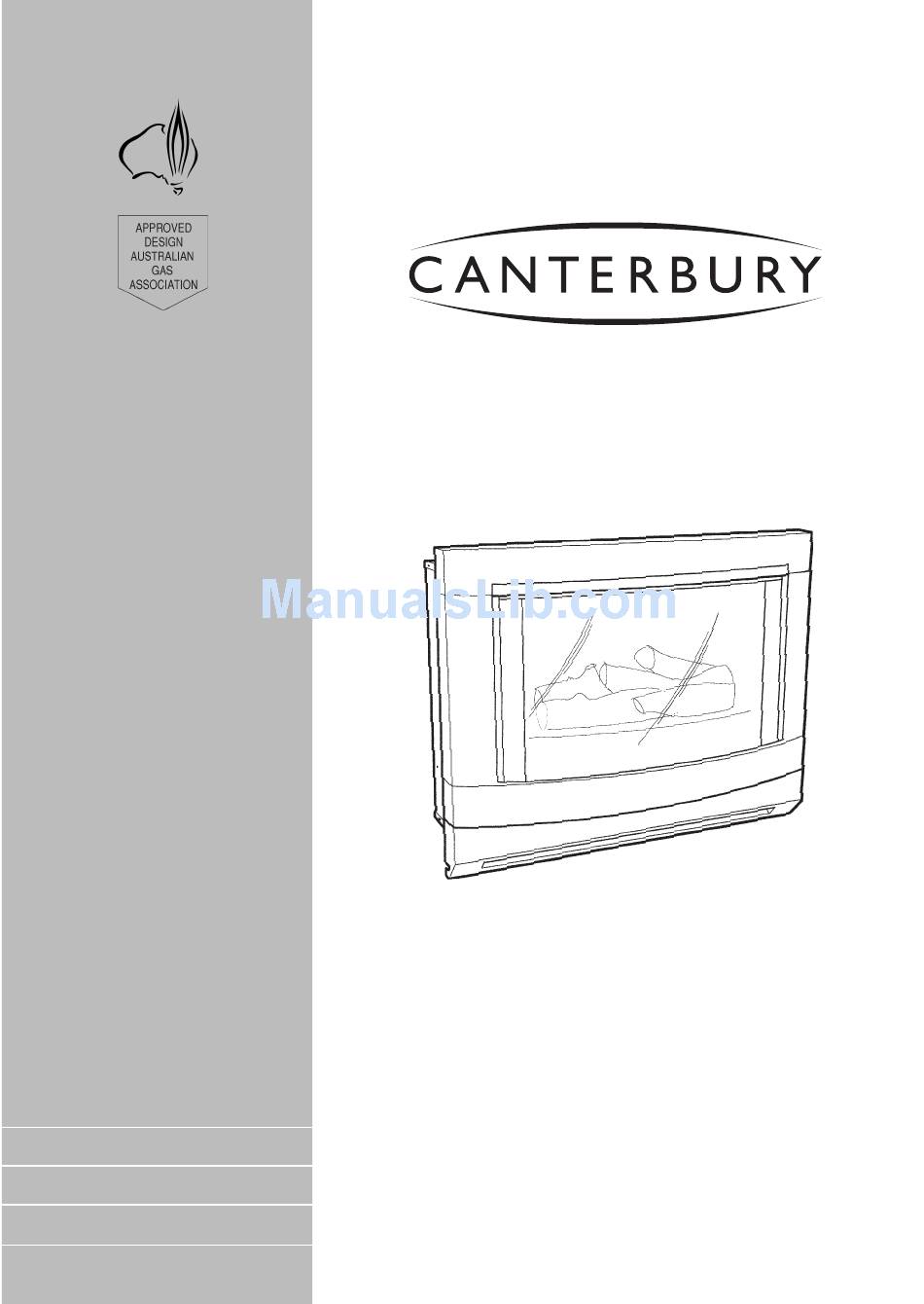

- Page 1 Cannon MAKER’S WARRANTY INBUILT MODELS CANTIB, CANTIBLP CANTIBM, CANTIBMLP USER INSTRUCTIONS INSTALLATION INSTRUCTIONS This heater is approved for use with Natural and Propane gases. SERVICE INSTRUCTIONS Please leave instructions with the owner...
-
Page 2: Table Of Contents
Contents Contents Warranty Safety warnings ❍ What to do if you smell gas ❍ Warnings ❍ Standards User instructions ❍ Operating instructions ❍ Cleaning Heater specifications Installation instructions 10-12 ❍ Clearances ❍ Installation into a masonry fire place ❍ Sealing Gas connection 13-14 ❍... -
Page 3: Warranty
Australia. Warranty service, which includes parts and labour for the replace- ment or repair of defective parts, is available through Cannon Authorised Service Agencies. (Please refer to the list of authorised service agents in this manual.) Consumers are responsible for service person’s travel outside nor-... -
Page 4: Safety Warnings
Safety Warnings Please read this manual before installing and using the heater. 1. Turn OFF the main gas supply. What to do if you smell 2. Extinguish any open flame. 3. Open windows. 4. Do not touch electrical switches. 5. Do not use your telephone. 6. -
Page 5: Standards
9. For installation into a non-combustible fireplace, ie: masonry or brick or into a mock fireplace, i.e. timber or plasterboard, the chimney and base should be of sound construction and be free from cracks and holes (to ensure that sufficient flue draught can be generated). -
Page 6: User Instructions
User instructions Operating instructions 1. Plug the power cord into the wall socket and turn on the power to the heater, see figure 1. Refrain from using an extension cord. 2. For control lay-out refer to figure 2 3. To turn heater on press switch to POWER ON position. There is a 5 second delay before the burner ignites. - Page 7 5. To increase the fan speed to MED, press switch for MED set- ting. Refer figure 5. 6. To increase the fan speed to HIGH, press switch for HIGH setting. Refer figure 6. 7. To turn the burner to LOW setting, press switch for LOW setting.
-
Page 8: Cleaning
User instructions continued Cleaning. All cleaning should be carried out when the heater is cold. Nor- mally the heater should only need wiping with a lint - free damp cloth. Any stubborn stains can be removed with a non-abrasive spray on cleaner. If an abrasive cleaner is used the paint finish will be damaged. -
Page 9: Heater Specifications
Heater Specifications Do not use fire with broken or missing logs. Gas type: Natural or Propane gas, as indicated on data label Gas consumption: 26 MJ/hr input Energy star rating: 3.77 Energy output: 20.7 MJ/hr Heater type: Heater approved to AG 103. Operating pressure: Natural gas: 1.0 kPa Propane gas: 2.65 kPa... -
Page 10: Installation Instructions
Note: Ensure that the combustion air opening under the heater is not obstructed. Installation into a 4. Models CANTIB & CANTIBLP should only be installed into a masonry or brick fireplace. fireplace. Models CANTIBM & CANTIBMLP can be installed into a mock fireplace. - Page 11 8. Remove the lower front cover by unscrewing two M5 screws through the air intake slots, see figure 12. If unit is fitted with supply flexible cord ensure that the cord cannot be trapped when the heater is installed. 9. Disconnect the switch loom connector from the loom plug. 10.To remove the front heater surround undo two s/t screws (one either side) from the bottom flange of the front panel as indi- cated in figure 14.
-
Page 12: Sealing
Installation instructions continued 11. Remove the inner glass. Slacken off screws in top clamp and remove side clamps. Refer figure 16. Sealing 12. All gaps between heater case and fireplace are to be sealed. Seal with foam tape around top and sides of heater flange as required. -
Page 13: Gas Connection
Gas connection 15. Connect incoming gas supply pipe to regulator. For inlet posi- tion see figure 19. Close gate over gas supply and seal around the pipe with fibreglass insulation material. Sealing is impor- tant as it prevents leakage from fan chamber into chimney: also check for gas soundness. - Page 14 b) Place log No.2 onto the 2 left back pins. Refer figure 22. c) Place log No.3 on single right front pin, ensure fork locates over log No. 2, see figure 23. d) Place log No. 4 on single right back pin, ensure left side of log rests on depression in No.
-
Page 15: Gas Control
Gas control 23.Gas control layout is as indicated in figure 26. Pressures for ‘Burner full on’ and ‘Burner low flame’ are factory set, however if pressures need to be checked or adjusted fol- low the procedures described below and on the next two pages. To check control outlet pressure at burner ‘Full on”... -
Page 16: Gas Pressure Sdjustment
Gas pressure 25.Switch the top two control buttons to “Full On” position as indi- cated in figure 29(a) and using a ring spanner, as per figure adjustment 29(b), adjust the pressure to 1kPa for Natural gas or 2.65 kPa for LPG. (Turn clockwise to increase pressure and anticlockwise to decrease pressure). -
Page 17: Service Instructions
Service Instructions 1. Service work to be carried out by a licensed service person only. General 2. Unplug from wall socket or turn off power at main switchboard if heater is hard wired. 3. Always shut off the gas supply and ensure that the heater is cool before commencing any service operations. -
Page 18: Troubleshooting
Troubleshooting To check the operation of the electronic (module) controller (Type 537 ABC) you will require a digital multimeter with the functions to measure AC/DC voltage, continuity, resistance and micro-amps. It is critical that the appliance is earthed and that the active and neutrals are not reversed. Item No Check Action... -
Page 19: Connections
No gas to burner. • The gas valve should open at the same time as the igniter sparks. If there is no gas to the burner when this occurs check the solenoid coils for continuity. • Check that the gas pressure is present at the test point when the spark is being generated. -
Page 20: Wiring Diagram
Wiring diagram Authorised service For further information or spare parts contact the CANNON dis- tributor in your state. agents Sampford & Staff Pty Ltd 421 Smith Street. Fitzroy, Vic, 3065 Vic/Tas: (03) 9418 5800 NSW: (02) 9331 8888 SA/NT: (08) 8212 7000...
