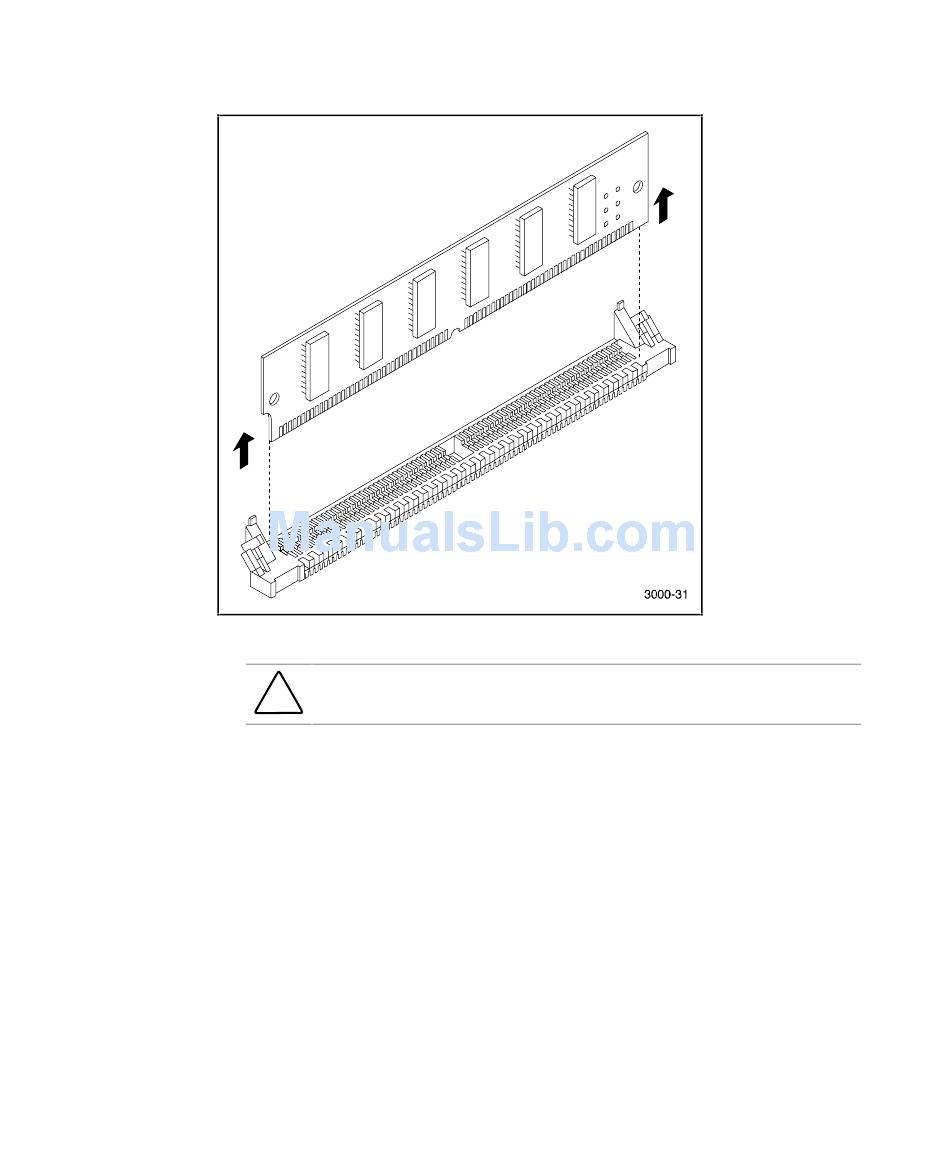

Figure 3-21 shows how to remove the installed SIMM module.
Figure 3-21. Remove installed SIMM modules
CAUTION: Ensure that
when installing the modules in the following step.
5. Install the two replacement memory modules by aligning the module
and connector pins (check alignment guide in center of module) and
gently pivot the module into the main controller board until it snaps into
place (see Figures 3-19 and 3-20).
6. Replace the controller into the shelf.
7. Power On the UPS and then power On the controller shelf.
Installation and Maintenance 3-35
"
"
side 1
of the two replacement SIMMs is facing you
