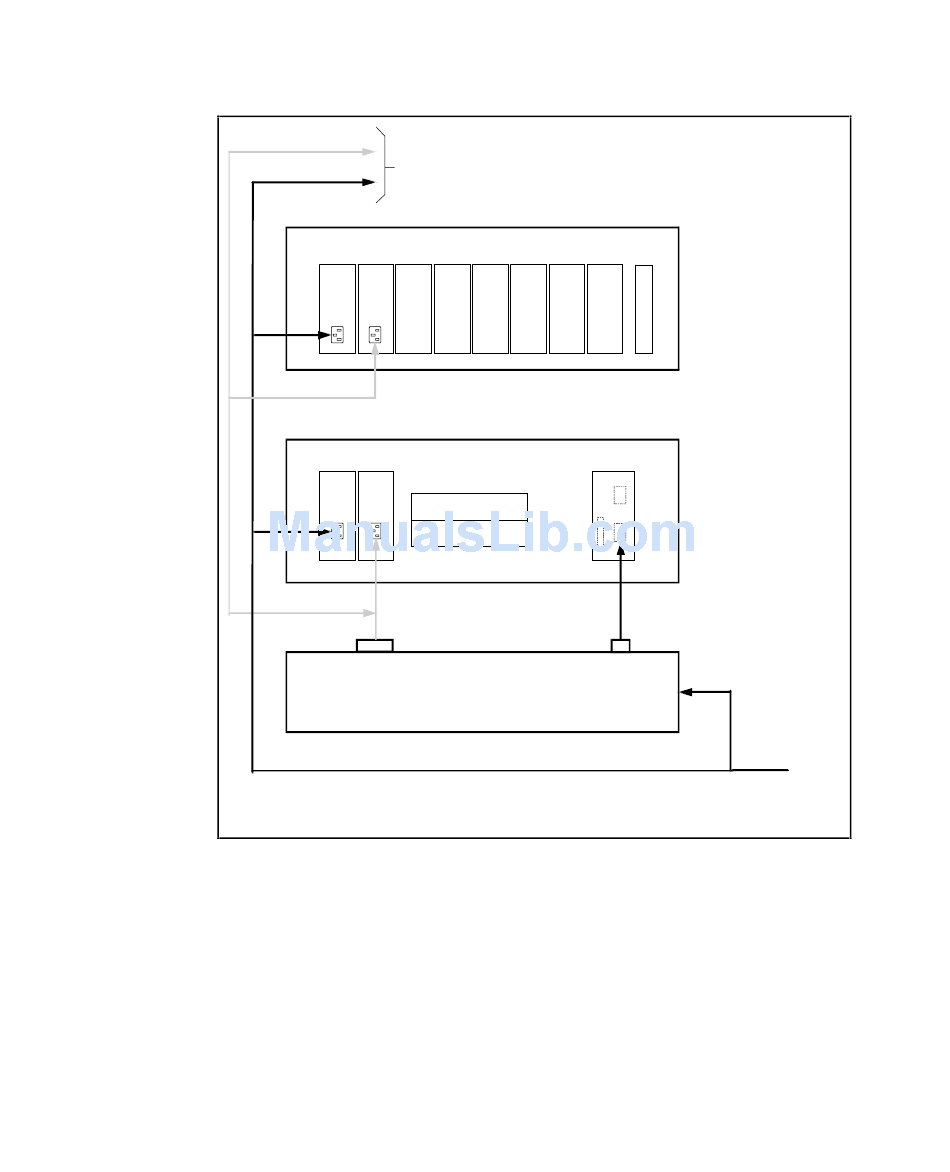

Figure 3-10 shows the AC Power wiring diagram.
DEVICE EXPANSION SHELF #1
P/S
P/S
A
B
CONTROLLER SHELF
P/S
P/S
A
B
Gray Power Cords
AC Power
Receptacles
Figure 3-10. AC power wiring diagram
NOTE: Dip switch position is down, white and black position is up.
To
Device Expansion
Shelves 2, 3, and 4
UPS
Black Power Cords
Installation and Maintenance 3-17
Host 0 I/O
Module
UPS
UPS Control
(17-04729-01)
AC Power
Source
SHR-1116
