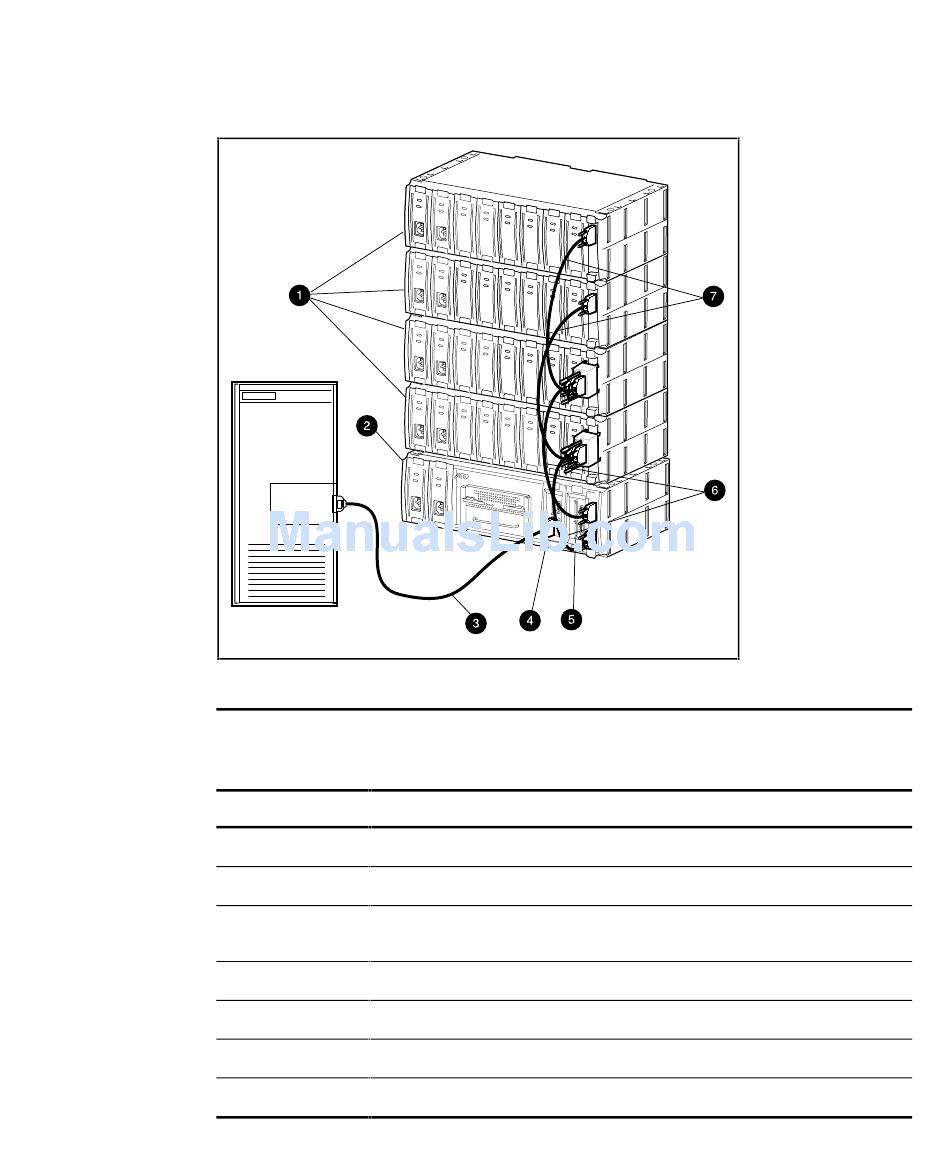

Figure 1-9 shows a diagram of a Single Host, Single Adapter, with one Active
Controller.
Host
System
Host
Adapter
Figure 1-9. Single host, single adapter, with one active controller
Single Host, Single Adapter, with One Active Controller
Item #
Description
å
Device expansion shelves
Controller shelf
ê
SCSI cable BN37A-05 (host adapter connection made using technology
adapter cable BN38E-OB, not shown)
‚
Host-In connector on H0 I/O module
ƒ
Host-In connector to H1 I/O module (not used in this configuration)
ñ
SCSI cables BN37A-OE (2) for device I/O module 0
ò
SCSI cables BN37A-OE (2) for device I/O module 1
shr-1316b
Table 1-2
Product Overview 1-17
