Saving the Existing Configuration

NOTE: You must save the subsystem configuration using the StorageWorks Command
Console Client (SWCC) before performing the installation procedure. Otherwise, the RAID
controller may lose your configuration.
To save your current configuration:
Select the Storage pull-down menu from the Toolbar, click Controller, select
Configuration, and then Save (see Figure 4-1).

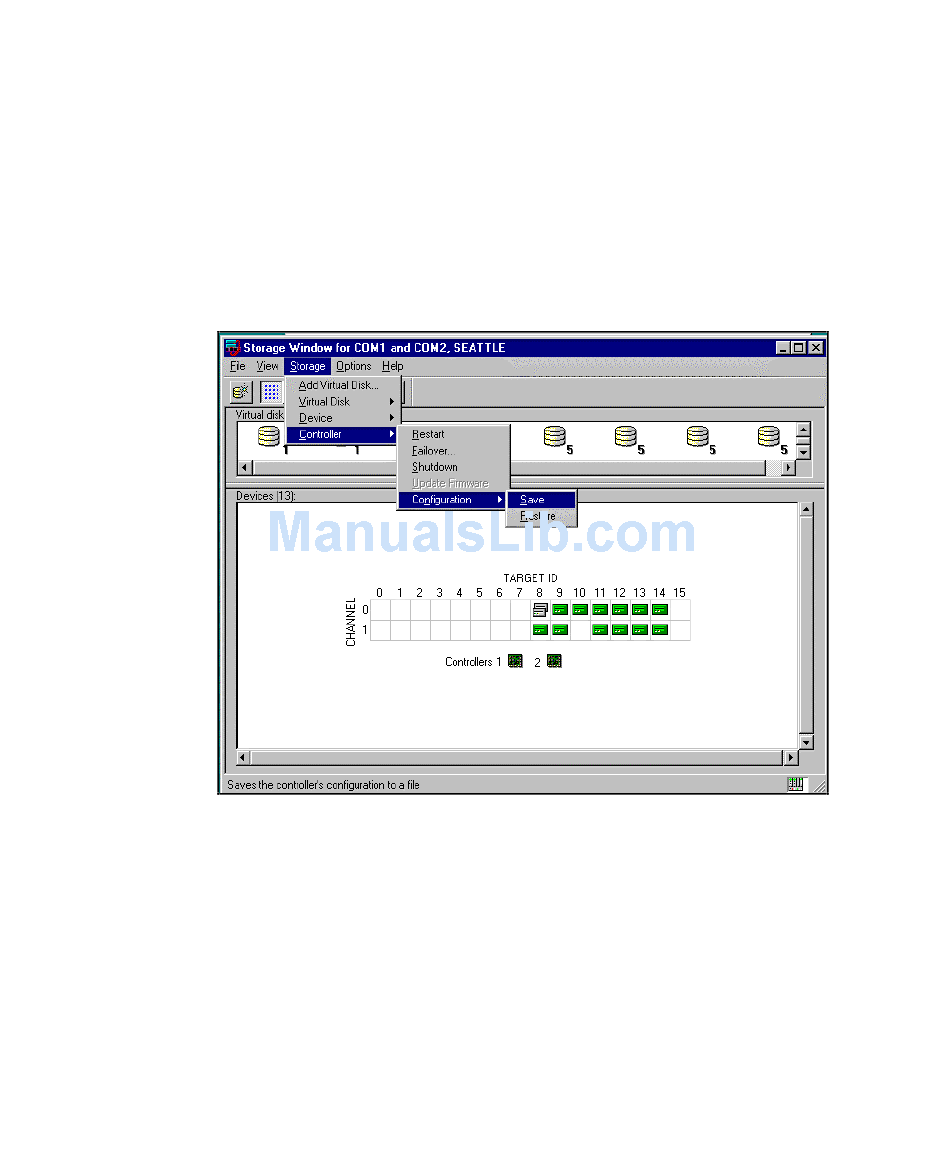

Figure 4-1. Saving the existing configuration

Second Controller Option 4-3
