3-12 RAID Array 3000 Controller Shelf Hardware User's Guide
3. If installing into a RETMA cabinet, align the left-hand bracket "E"
holes with the corresponding holes in the cabinet (extend rear of bracket
beyond rail for installation), insert two screws, and secure to cabinet
with a cage nut or U-nut.

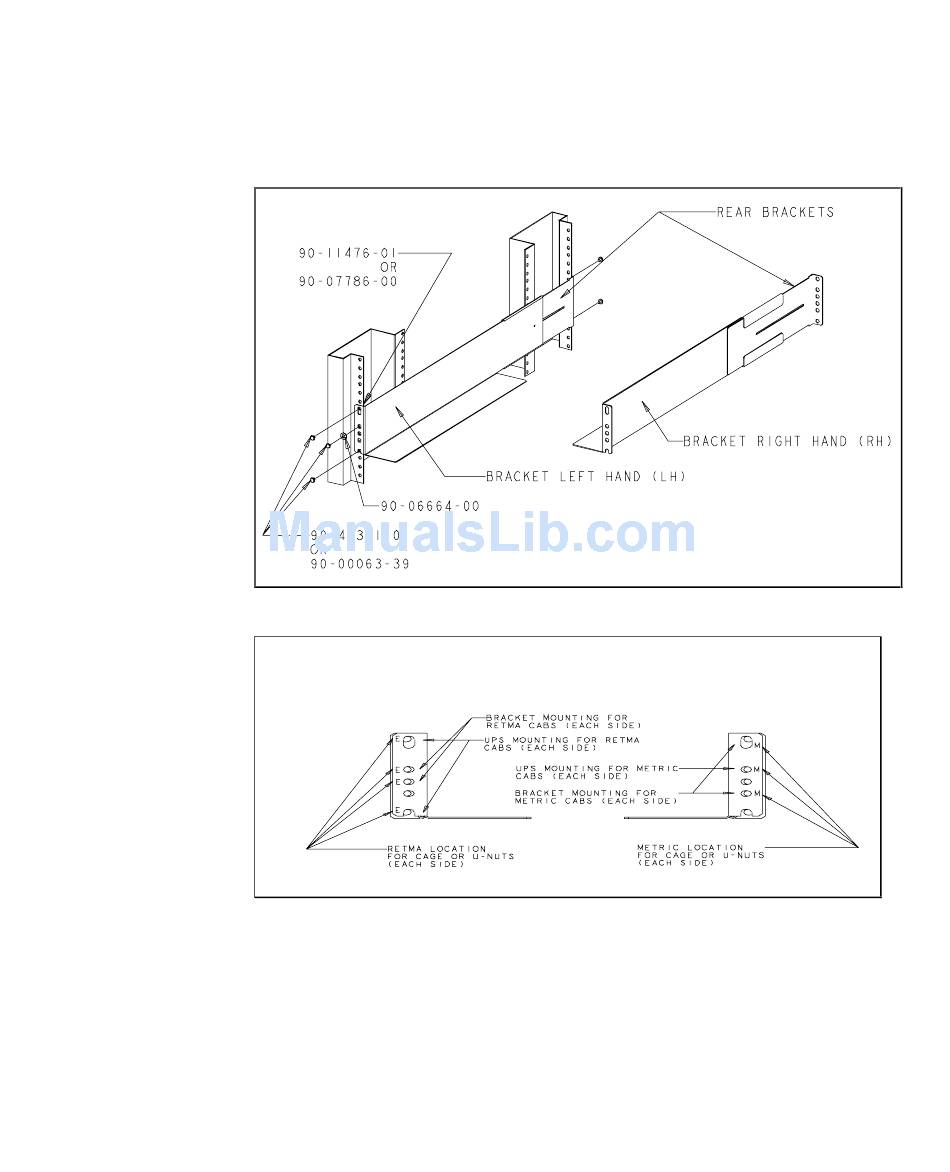

Figure 3-6. UPS rack-mount bracket assemblies

Figure 3-7. UPS bracket RETMA and metric hole locations (front)

4. Pull and extend the rear bracket assembly until it reaches the hole
mounting channel at the rear of the cabinet and install cage nuts (or U-
nuts) at the rear of the rail into the corresponding holes in the cabinet
(see Figure 3-7). Extend the bracket beyond rail and tighten the
hardware to secure the bracket to the cabinet.
5. Install the UPS right-hand bracket on the right side of the cabinet using
the same hole patterns and hardware used in steps 2 and 3.
