Updating the Firmware on a Second Controller

Installing the Original Controller
The Restore Configuration dialog box with a Restore from File field appears
as shown in the example of Figure 4-9.

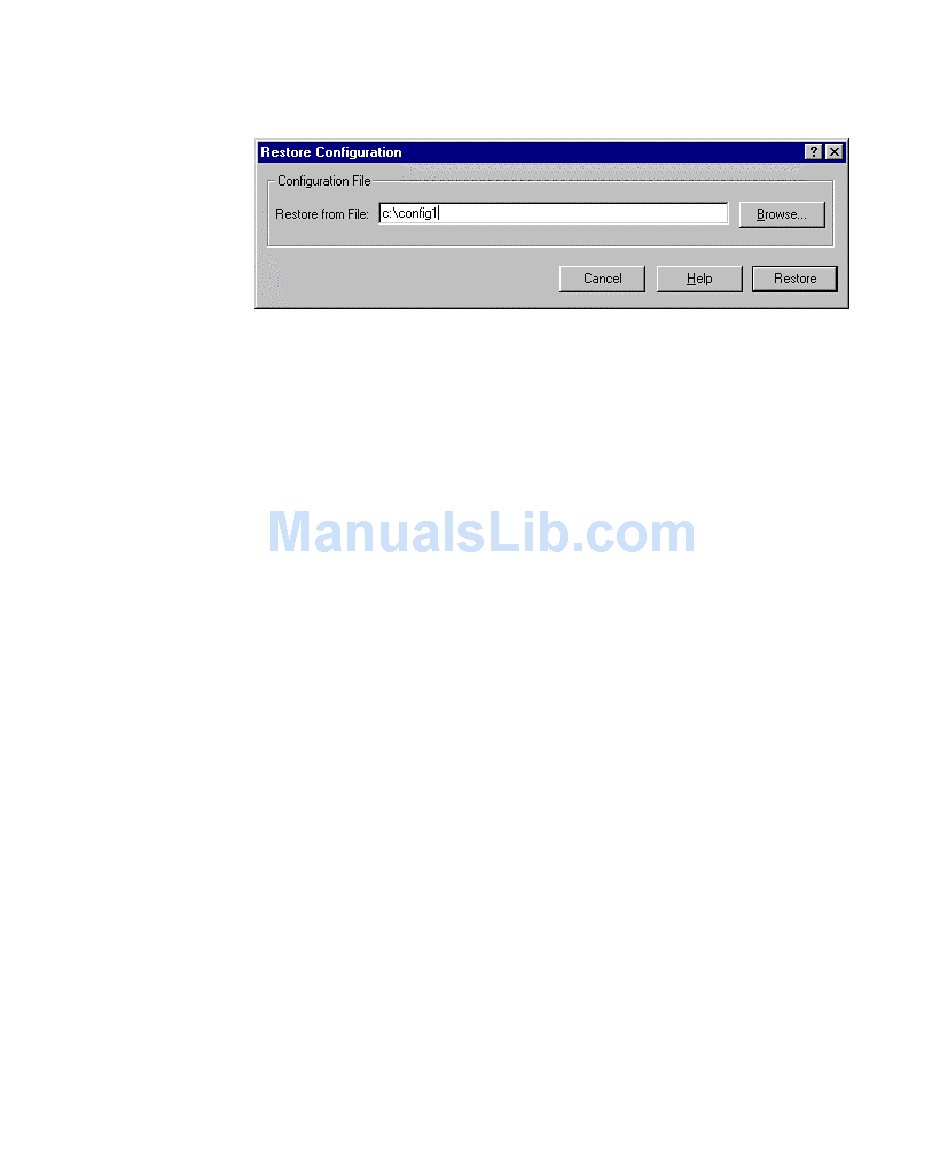

Figure 4-9. Restore Configuration dialog box

NOTE: Restoring the configuration in the following step may take up to 5 minutes.
1. Enter the file name that you saved in "Saving the Existing
Configuration" and click Restore.
1. After configuration has been restored, update firmware on the second
controller. Repeat the procedure in "Updating Firmware Using SWCC"
or "Updating Firmware Using Serial Interface."
2. After the configuration has been restored and firmware has been
updated, power down the system.
1. If installing option kit DS-HSZ22-AA, add the second SIMM to the
original controller. If installing option kit DS-HSZ22-AB, replace the
existing SIMM with the two remaining SIMMs supplied with the kit.
(See "Installing Two SIMMs into Second Controller" for instructions).
2. Install the second controller into the controller shelf and power up the
system. The system is now in the dual-redundant operating mode.
3. Locate the second serial cable that came in the second controller kit.
Connect this cable to the second controller serial port on the RA3000 and
to COM 2 port and restart SWCC in serial mode. You now have two serial
connections.
