Installing UPS Brackets

10. Install two shelf retainer brackets (item 1, Figure 3-5) to the left and
right rails of the cabinet and secure with two screws. The controller
shelf is now safely mounted in the cabinet.

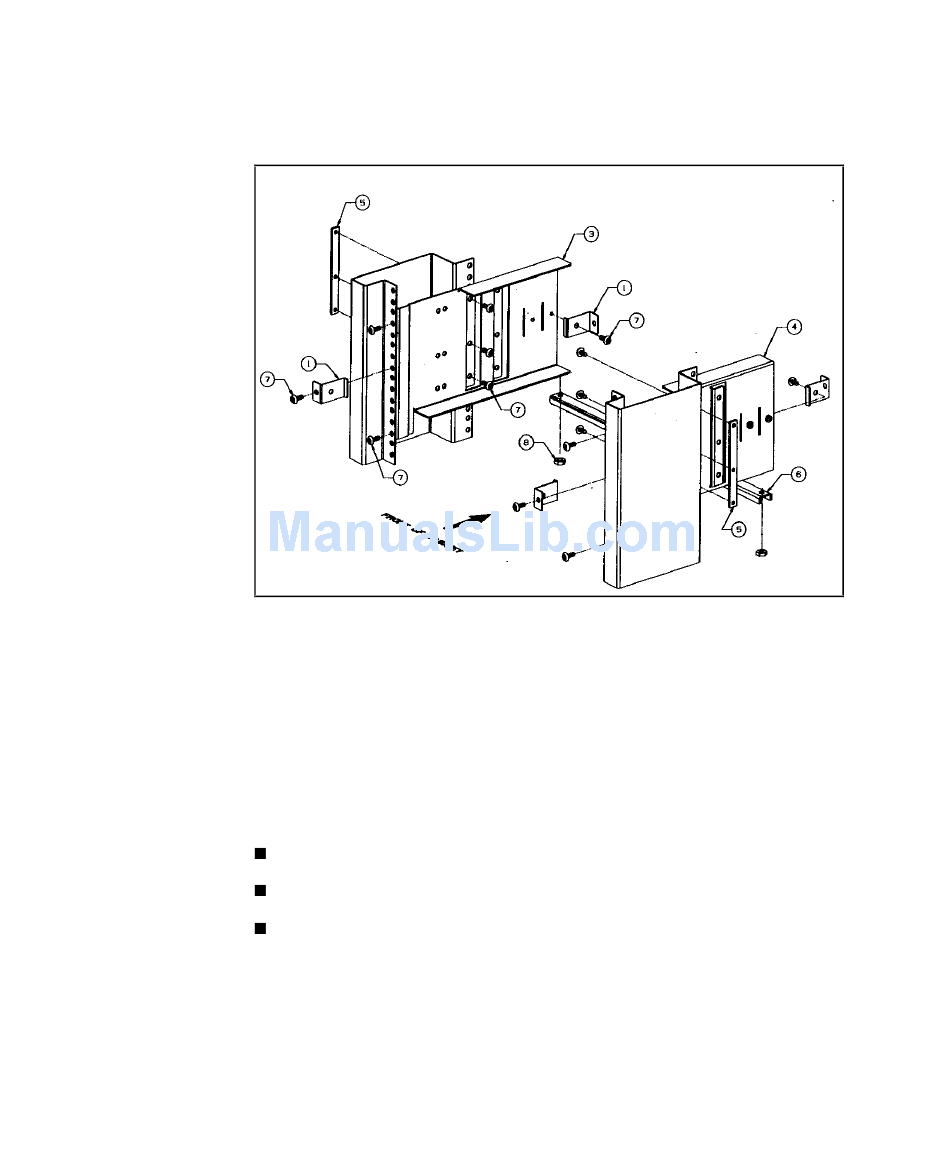

Figure 3-5. RETMA cabinet shelf supports

The shelf brackets that support and secure the UPS in the cabinet are a custom
design. The following procedure describes how to install the rack-mount
brackets. It applies to both cabinet designs – RETMA and metric. You will
need the following items to properly install the UPS brackets in your style
cabinet:
2 UPS rack-mount brackets (74-53154-01 and -02)
1 bag (Table 3-3 lists contents) of mounting hardware (99-06557-05)
Phillips-head screwdriver
