MANO861 Mini ITX Board
1.2

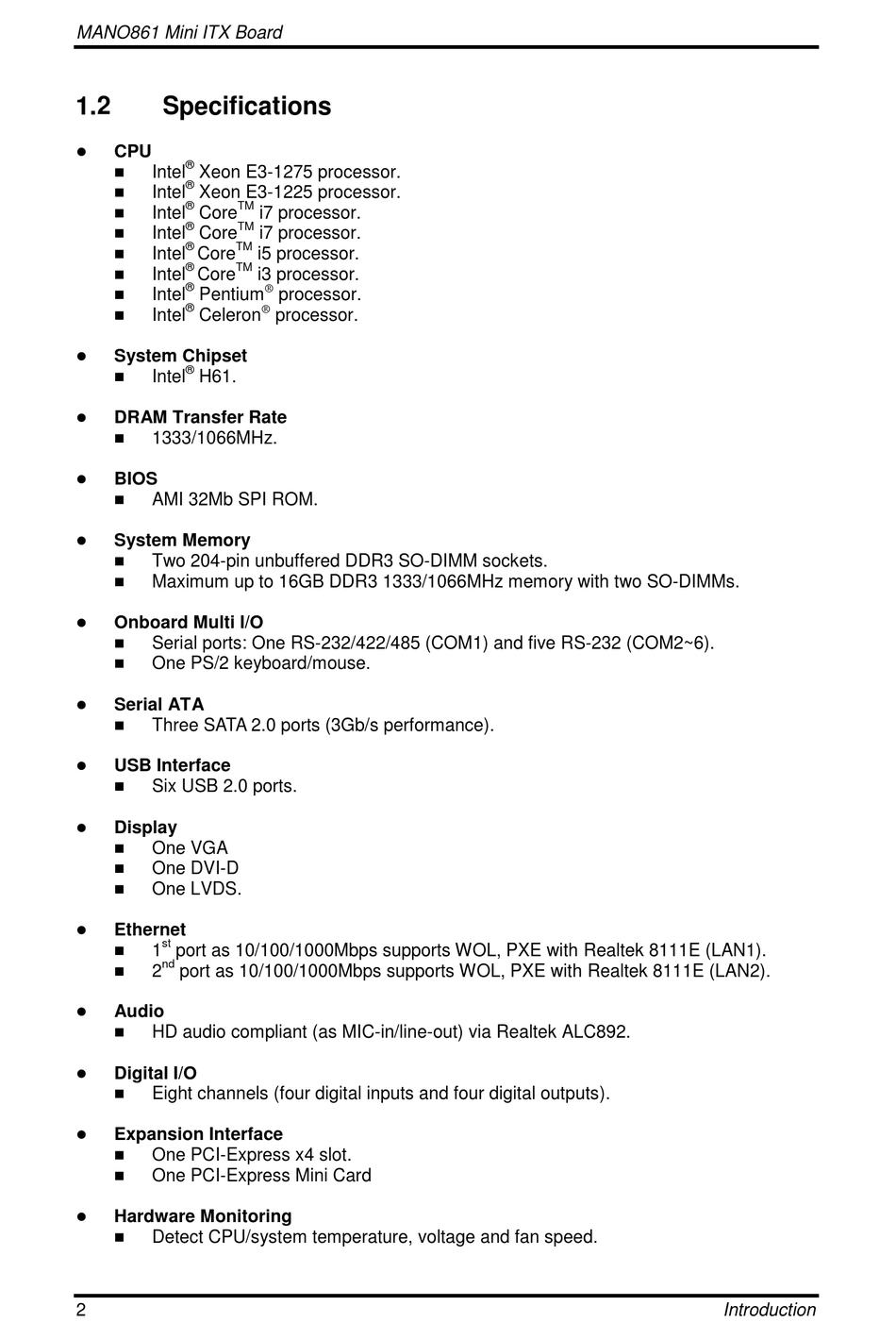

Specifications

 CPU
®
 Intel Xeon E3-1275 processor.
®
 Intel Xeon E3-1225 processor.
® TM
 Intel Core
® TM
 Intel Core
® TM

Intel Core
® TM
 Intel Core
®
 Intel Pentium
®
 Intel Celeron
 System Chipset
®
 Intel H61.
 DRAM Transfer Rate
 1333/1066MHz.
 BIOS
 AMI 32Mb SPI ROM.
 System Memory
 Two 204-pin unbuffered DDR3 SO-DIMM sockets.
 Maximum up to 16GB DDR3 1333/1066MHz memory with two SO-DIMMs.
 Onboard Multi I/O
 Serial ports: One RS-232/422/485 (COM1) and five RS-232 (COM2~6).
 One PS/2 keyboard/mouse.
 Serial ATA
 Three SATA 2.0 ports (3Gb/s performance).
 USB Interface
 Six USB 2.0 ports.
 Display
 One VGA
 One DVI-D
 One LVDS.

Ethernet
st

1 port as 10/100/1000Mbps supports WOL, PXE with Realtek 8111E (LAN1).
nd

2 port as 10/100/1000Mbps supports WOL, PXE with Realtek 8111E (LAN2).
 Audio
 HD audio compliant (as MIC-in/line-out) via Realtek ALC892.

Digital I/O
 Eight channels (four digital inputs and four digital outputs).
 Expansion Interface
 One PCI-Express x4 slot.
 One PCI-Express Mini Card
 Hardware Monitoring
 Detect CPU/system temperature, voltage and fan speed.
2
i7 processor.
i7 processor.
i5 processor.
i3 processor.
®
processor.
®
processor.
