U
ser gUide

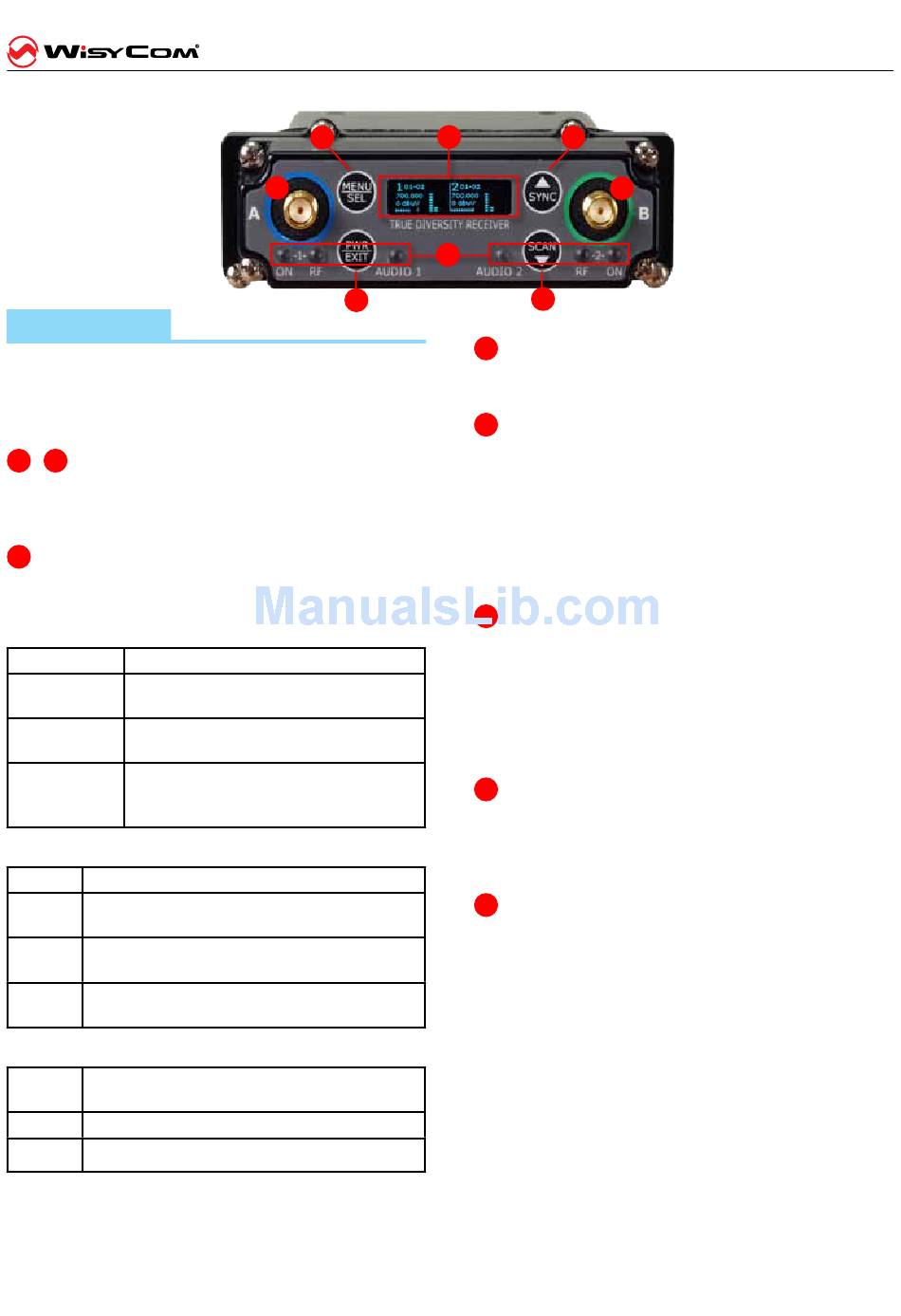

FRONT PANEL

MCR42 allows an easy and quick configuration using
buttons, RGB LED's and an OLED display.
The front panel is functionally divided in the follow-
ing section:
A B
SMA antenna Connector:
MCR42 is supplied with a couple of antenna tuned
on 400 MHz bandwith suitable to be used with both
MCR42-L and MCR42-H version.
C
RgB Leds:
Each of the 2 receivers has a dedicated set of LED's
to give a clear indication of its status.
"ON LED"
off Relative receiver is not active
gREEn Relative receiver is active and bat-
tery/external power is not low
RED
Relative receiver is active and bat-
tery/external power is low
BLInKIng Relative trasmitter battery is low:
- slowly blinking if 25% lifetime
- quickly blinking if 12% lifetime
"RF LED"
off
Relative receiver is not active
RED
RF level below squelch on both diversity
receivers
gREEn RF level above squelch and receiver A is
active (ANTENNA A)
BLUE RF level above squelch and receiver B is
active (ANTENNA B)
"AUDIO LED"
RED
Audio muted due to RF squelch or tone
squelch
gREEn Audio active & tone squelch detected
BLUE Audio active & tone squelch not detected
Pag. 6
D
A
C
F
MCR42
H E
G
D
"MEnU/SEL" BUTTon
Push this button to navigate function menu's and to
confirm the choosen setup.
F
"PWR/EXIT" BUTTon
Push and keep this button to power on/off the re-
ceiver. The on/off status is permanently memorized
into the non-volatile memory, this way the system
can be setup to automatically turn on Rx1, or Rx2,
or both, when power up.
During menu navigation push this button to exit
from current menu (escape function).
E
"Arrow up/sync" BUTTon
Push and keep this button to start a syncronization
with a Wisycom transmitter (follow instructions on
display). Before starting syncronization IRDA must
be enabled on Wisycom transmitter.
During menu navigation push this button to move
-up and select the previous item.
G
"Arrow down/scan" BUTTon
Push and keep this button to start the automatic
scan.
During menu navigation push this button to move-
down and select the previous item.
H
"oLED Display"
The receiver has a high contrast display. Pushing a
button while the receiver is active, turn on automati-
cally the display. After a time-out the display turns
off automatically.
dual true diversity receiver
B
