System Icons

Indicator Function
Locked
[No Service
message]
XXXX

Call Status Icons

Indicator Function
1725-36165-001-E.doc
Getting Started with Your SpectraLink 8020/8030 Wireless Telephone

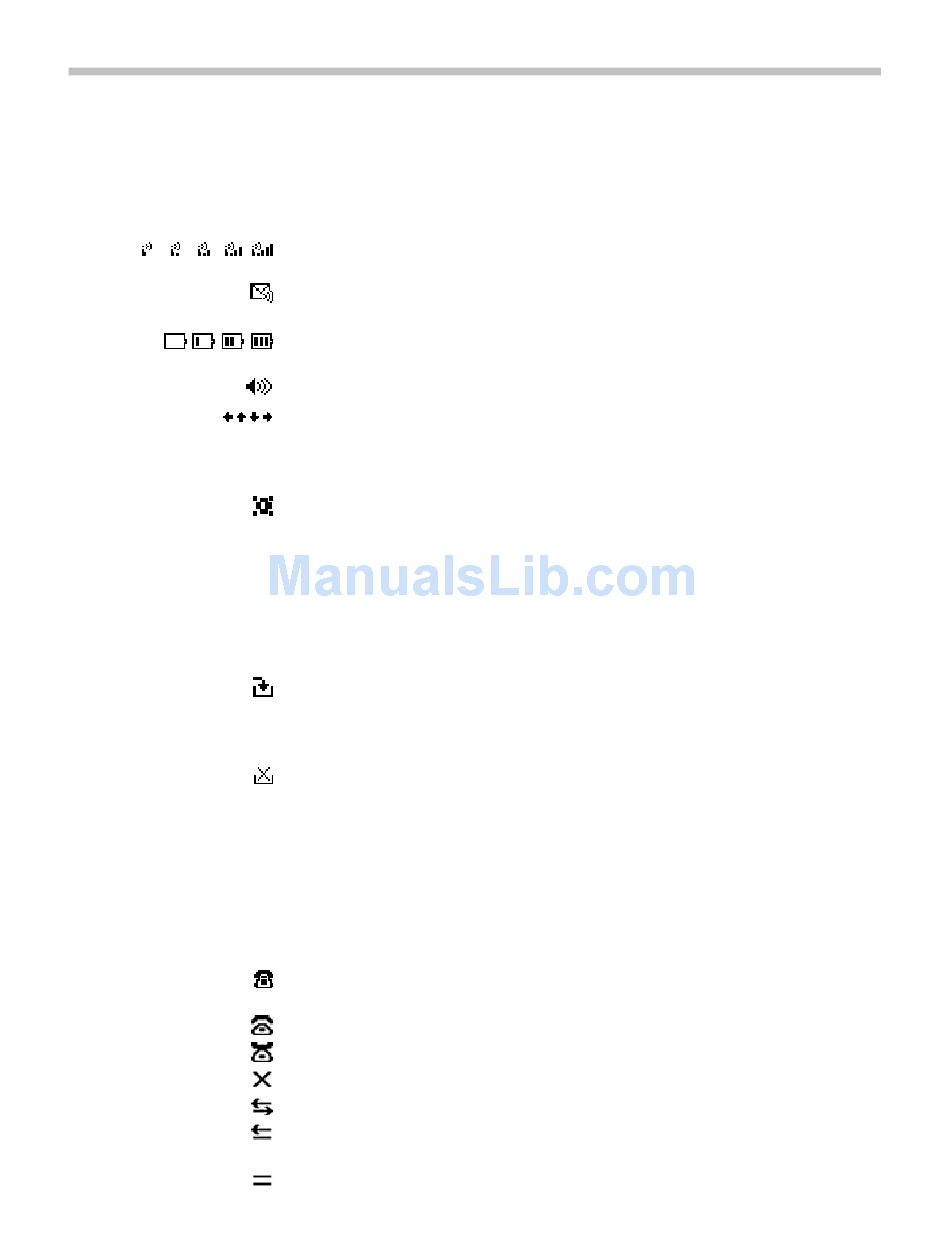

The signal strength icon indicates the strength of the signal and can assist
the user in determining if the handset is moving out-of-range.
The voicemail icon is activated when a new voicemail message is received
if the feature is supported by the phone emulation.
The battery icon indicates the amount of charge remaining in the Battery
Pack. When only one level remains, the Battery Pack needs to be charged.
The speakerphone icon displays when the speakerphone is active.
Up and down arrows are displayed when the menu has additional options
above or below.
Left or right arrows are displayed during editing when the cursor may be
moved left or right.
The location service icon indicates the Real-Time Location System (RTLS)
is enabled.
Locked indicates that the keypad is locked to prevent accidental activation.
Use the Unlk softkey plus the # key to unlock it.
If warning tones are not disabled, an alarm will sound and a descriptive
message displays when the handset cannot receive or place calls. You
may be outside of the covered area. Walk back into the covered area. The
in-service tone indicates service is reestablished.
The download icon indicates that the handset is downloading code. This
icon only appears while the handset is running the over-the-air downloader.
It appears to the right of the signal strength icon in the same location as the
voicemail icon.
The download failure icon indicates that the handset has failed to download
code because the code is incompatible with the handset hardware. Contact
your system administrator should this icon appear.
During character entry, indicates current data entry symbol mode.
On-hook icon, Solid when in standby mode to indicate that at least one call
is still active or on hold. Flashing when incoming call is ringing.
Off-hook icon. Solid when a call is being dialed.
Hold icon. Call is on hold.
Transfer icon. Call is in the process of being transferred.
Audio flowing icon (flashing). Audio is flowing both ways on a call.
Audio receive-only icon (flashing). Locally muted or far end hold with no
music on hold.
No audio icon. No audio is flowing. Call is terminating or far end hold with
audio disable.
